- Description
-
Details
- The two part Contractor Hinge Jig is a portable template set designed for recessing hinges in wooden doors & frames using a plunge router
- It is easy to use with minimal setting-up time, completing the job both accurately & quickly
- Used on-site & in joinery shops to increase productivity with excellent results
- Four apertures for fire door requirements
- No need for marking out in the conventional way
- Quick & simple to set-up as the hinge is used as the pattern
- Clean & accurate recesses are achieved every time. Suitable for timber based doors & square butt hinges
- Can be used on both inside and outside doors, rebated frames and on maximum 25mm thick fixed stops
- Use with a light duty plunge router with 1/4 inch collet
- Long reach router cutter required, 12mm diameter with 70mm overall length
- Angled position slots to prevent creep
- Unibase may be needed
- T4EK router requires a ref. UNIBASE or special guide bush ref. GB/T4/160
- Features
Features

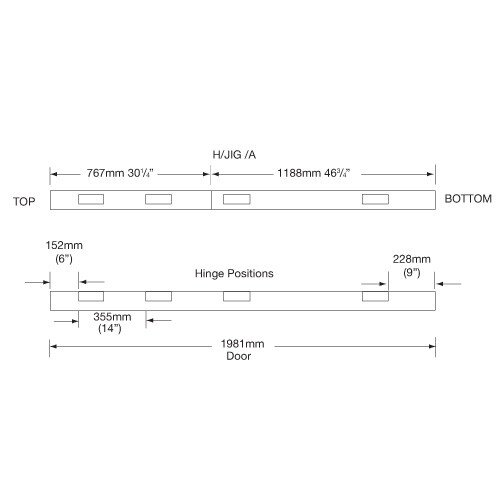

Hinge sizes possible
