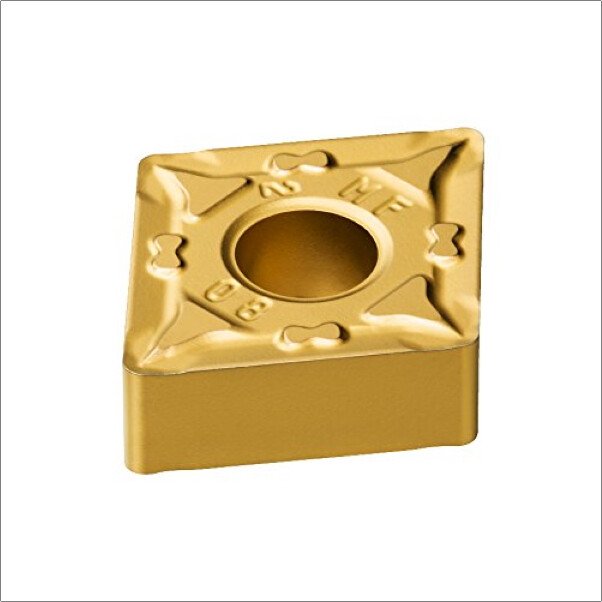

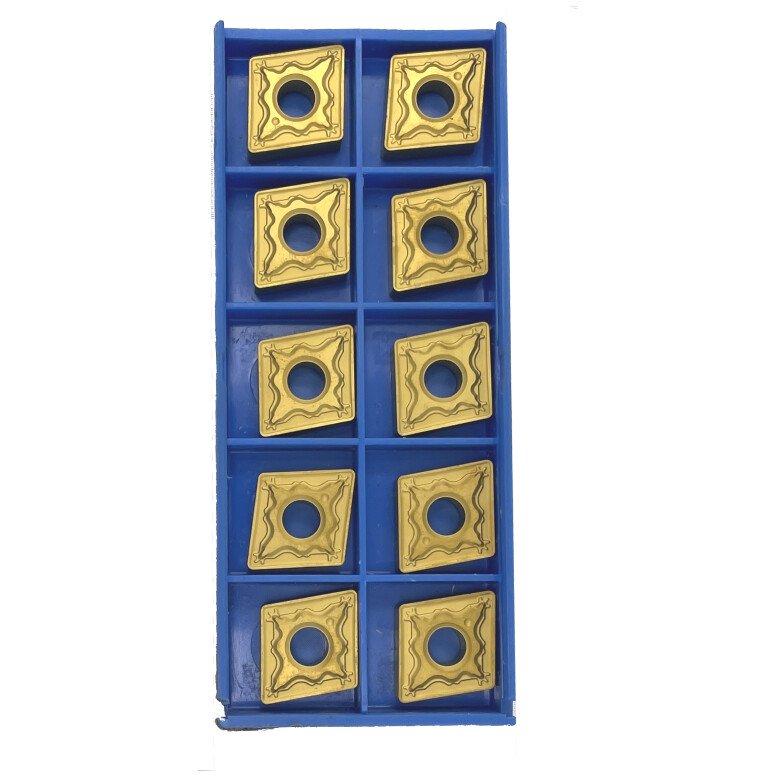

Toolmex Carbide Insert - CNMG 120408-HM ( NC320 )

More Views

Toolmex Carbide Insert - CNMG 120408-HM ( NC320 )

Regular Price: Ex. VAT £7.30

Ex. VAT £3.15 Inc. VAT £3.78

Want it by Saturday, 28 December? Order within

Sold per insert

Only 10 remaining

Description

Details

Note: Sold per insert

Part of the T-Max P product family.
Your first choice for general turning, stretching from small components to heavy machining.
Inserts fit into all Sandvik Coromant high performance holding systems and can be used in a variety of applications in all materials.
Geometries specifically designed for high pressure coolant are available for steel, stainless steel and HRSA materials.
Benefits of this product family :

  • Dedicated grades and geometries for all applications and materials.
  • Productive solution with wiper and Xcel technologies.
  • Tools featuring high precision coolant for excellent chip breaking.
  • Reliable and secure machining, even in roughing applications.

Features

Features

Material classification (TMC1ISO):

M (ISO M Stainless steel)
ISO Cutting Tool Material:HC
Coating Process Type:CVD
Coating Type:Ti(C,N)+Al2O3+TiN
Substrate Type:WC
Clearance Angle Major:0 deg
Chip Breaker Manufacturer's Designation:MF
Operation Type:Finishing
Insert Size and Shape:CN1204
Hand:N
Inscribed Circle Diameter:12.7 mm / 0.5 inch
Cutting Edge Effective Length:12.0959 mm / 0.47622 inch
Corner Radius:0.7938 mm / 0.03126 inch
Insert Thickness:4.7625 mm / 0.18748 inch
Insert Shape Code:C
Wiper Edge Property:0
Weight Of Item:0.01 kg / 0.022 lbs
