Details

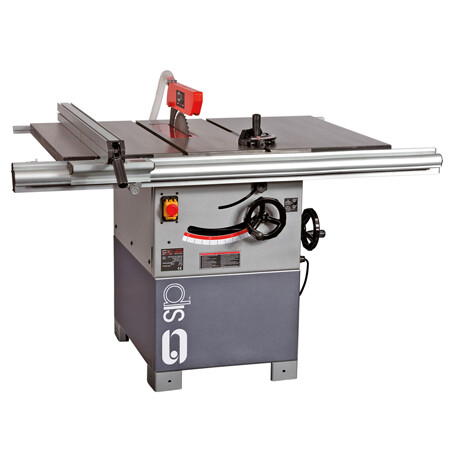

This saw has all the features of the 10" Cast Iron Table Saw (01332) with the added flexibility of a bigger working table. This is the perfect machine for a busy woodworking shop.
Maximum distance from blade to fence with extension - 1400mm
Table size:With extensions: 1500mm wide x 800mm deep
Without extensions: 600mm wide x 800mm deep
Blade diameter - 315mm
Blade tilt - 0º -45º to left
Cabinet stand included
Large cast iron table with two extensions
TCT blades supplied as standard
2 x year warranty
Maximum Depth Of Cut@ 90º mm: 100
Maximum Depth Of Cut@ 45º mm: 80
Table Size mm: 1500 X 800
Blade Diameter mm: 315
Blade Bore mm: 30
Blade Speed Rpm: 4000
Table Height mm: 860
Net Weight Kg: 195
Gross Weight Kg: 212
Optional Extras:Replacement Blade - 315mm x 20 Tooth Ripping Blade: SIP item 06156
