- Description
-
Details

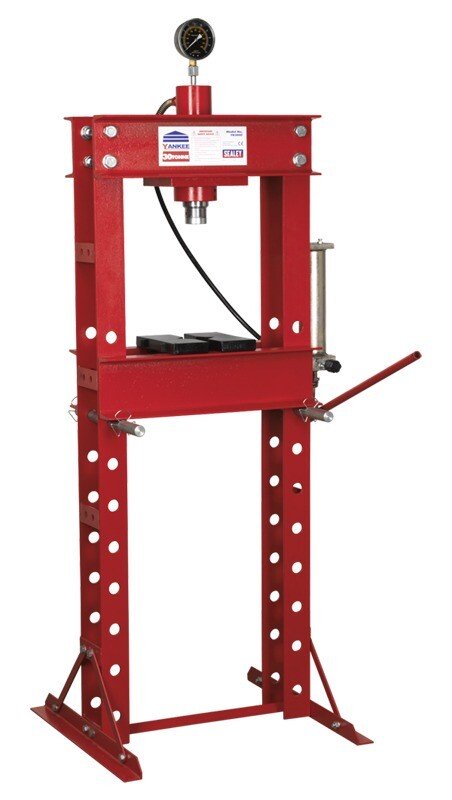

Steel frame construction with side mounted hydraulic pump unit.
Sliding hydraulic ram assembly giving 200mm of lateral travel for off-centre pressing applications.
Includes flat pressing plate/V-blocks.
Fitted with ram pressure gauge.- Features
Features
Ram Stroke: 150mm Type: Hydraulic Ram ø: 50mm Capacity: 30tonne Weight: 141.5kg Working Pressure: - Gauge Included: Yes Air Consumption: - Lateral Ram Travel: 200mm Overall Height: 1908mm Working Table Width: 460mm Working Table Depth: 284mm Maximum Height - Ram to Table: 1035mm Safety Guard (Optional): - Table Aperture: 154mm Bench or Floor Mounting: Floor Minimum Height - Ram to Table: 45mm - Shipping
This product is large and/or heavy and as such, some destinations may incur an additional shipping surcharge. If this is the case you will be contacted before despatch to discuss this.
