- Description
-
Details

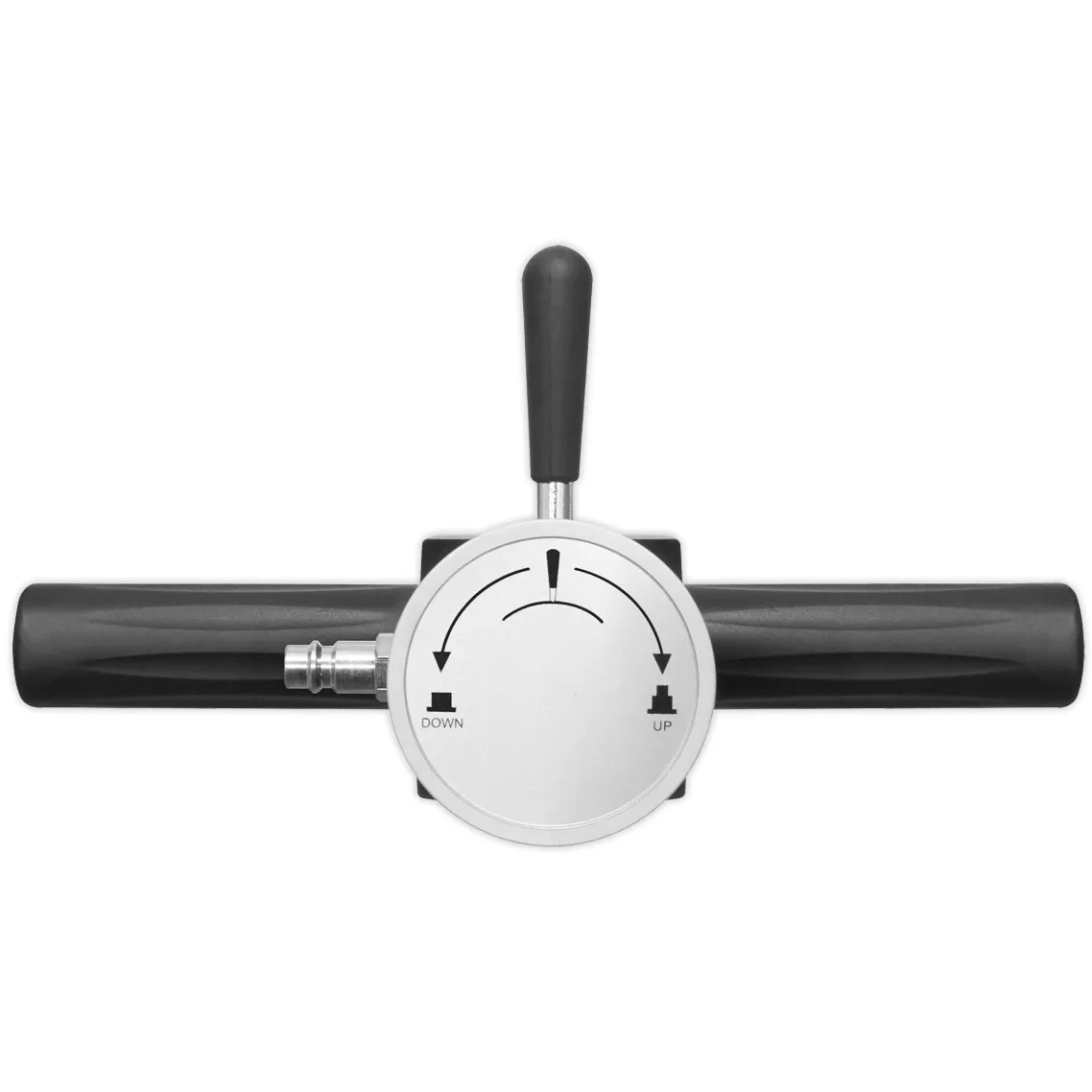

Handle locks in position and can be used at three different angles to allow improved manoeuvrability and access around the vehicle.
Ideal for workshop or roadside use, takes the effort out of lifting heavy plant, tractors and commercial vehicles.

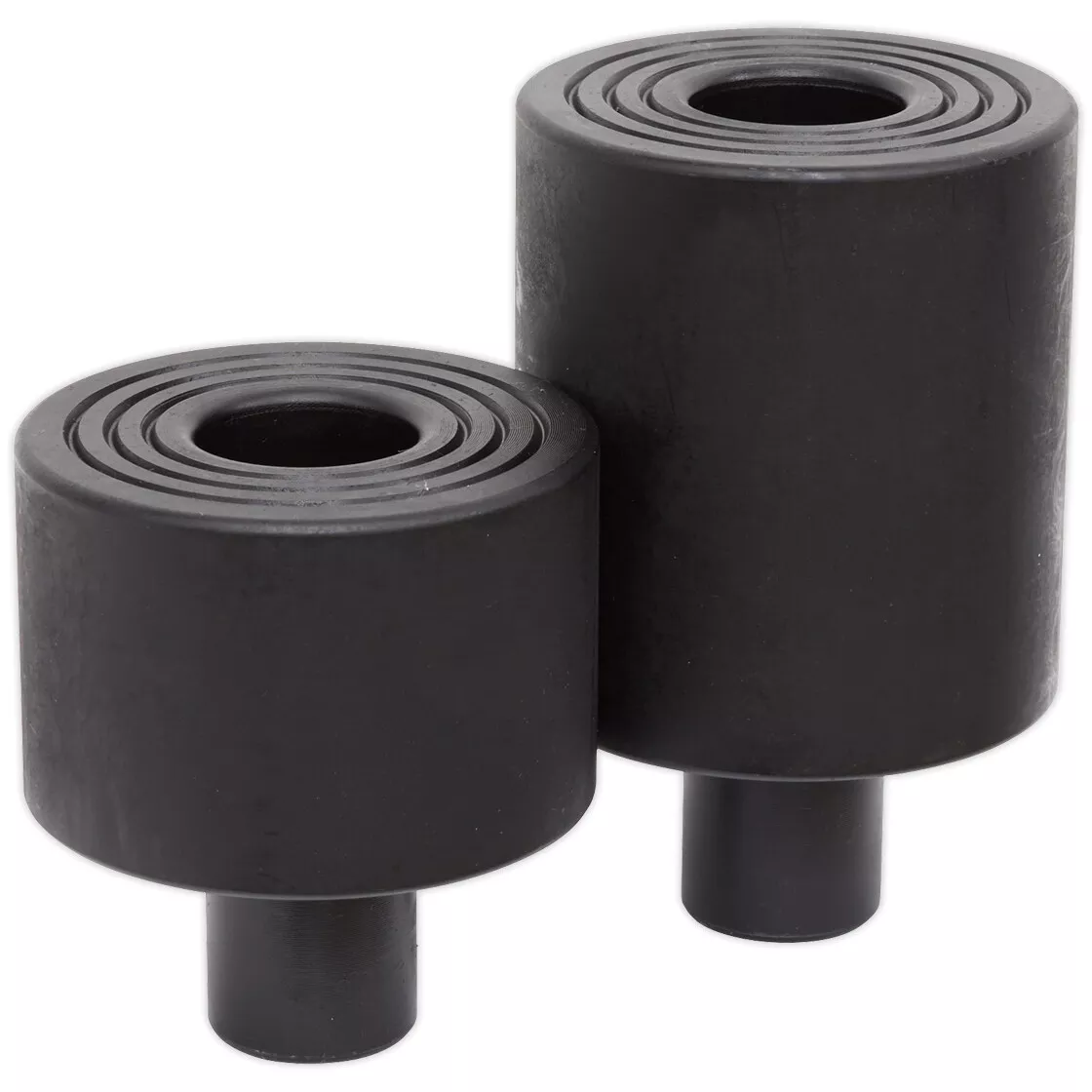

Supplied with 45mm and 75mm extensions to help close the gap between the saddle of the jack and the jacking point.- Features
Features
Air Consumption:
10.5cfm Capacity: 30tonne Chassis Length: 480mm Extensions: 45/75mm Max. Height (inc. Extn)/Capacity-Stage 1 (mm/tonne): 393/30 Max. Height (inc. Extn)/Capacity-Stage 2 (mm/tonne): 472/15 Max. Height (inc. Extn)/Capacity-Stage 3 (mm/tonne): n/a Maximum Length: 1700mm Minimum Saddle Height: 175mm Overall Width: 290mm Piston Stroke: 177mm Screw Extension: n/a Width without Wheels: 176mm Working Pressure: 116-145psi
