Details

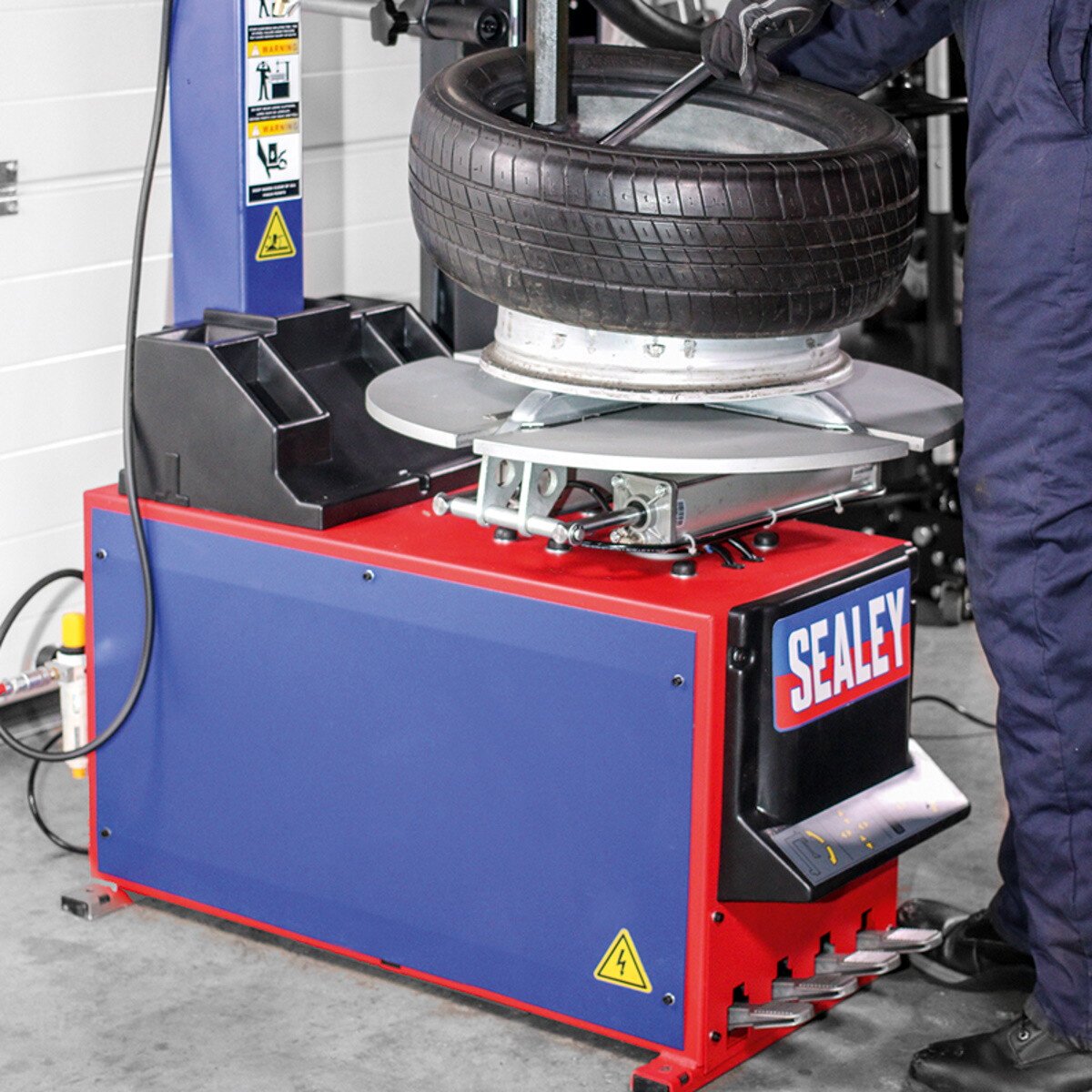

Automatic tyre changer capable of changing 11" to 24" wheel rims.
Suitable for most cars and light commercial vehicles.
Air operated rear tilting column and head lock.
Protects alloy wheels with the added feature of plastic protectors, fitted to the clamping jaws and mounting head.
Supplied with 485mm tyre lever, integrated tyre inflator, tyre soap tub, air regulator and lubricator.
Model No. TC10A Assist Arm is required for use with low profile and run flat tyres.
See Sealey website for demonstration video.
Features
Features
Turntable Diameter: | ø26"(660mm) |
---|
|
Model No | TC10 |
---|
|
Optional Accessories: | TC10A - Assist Arm |
---|
|
Inlet Size: | 1/4"BSP |
---|
|
Operating Pressure: | 8-10bar(115-145psi) |
---|
|
Voltage/Phase: | 230V - 1ph |
---|
|
Tyre Inflator: | 0-10bar(0-145psi) |
---|
|
Specification Table | |
---|
|
Dimensions (W x D x H): | 690 x 1100 x 1900mm |
---|
|
Motor: | 1.1kW |
---|
|
Wheel Depth Minimum/Maximum: | 12"(305mm) |
---|
|
Weight: | 246kg |
---|
|

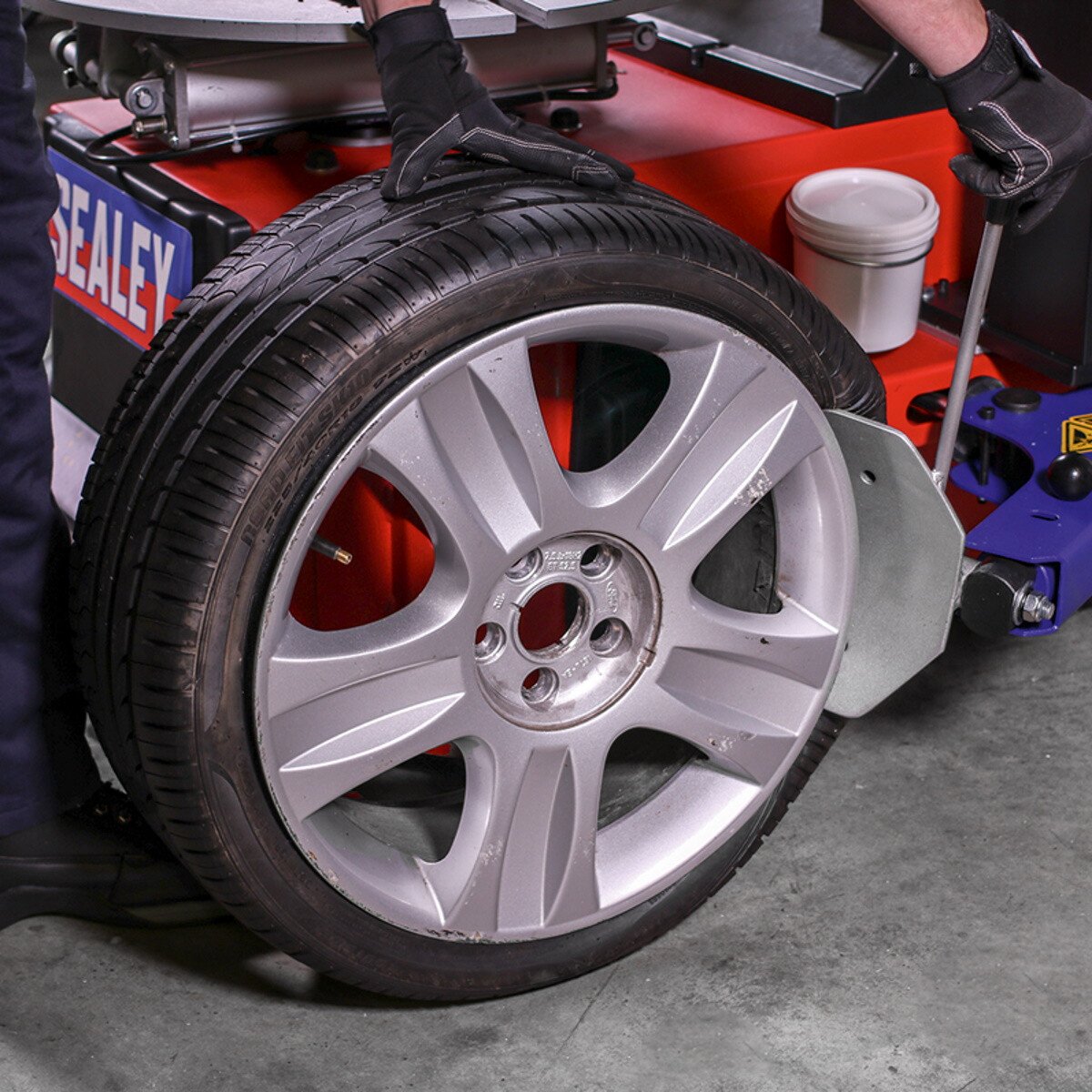

Bead Breaking Force: | 2500kg |
---|
|
Wheel Diameter Minimum/Maximum: | Internal Clamping ø11"-20", External Clamping ø12"-24" |
---|
