- Description
-
Details

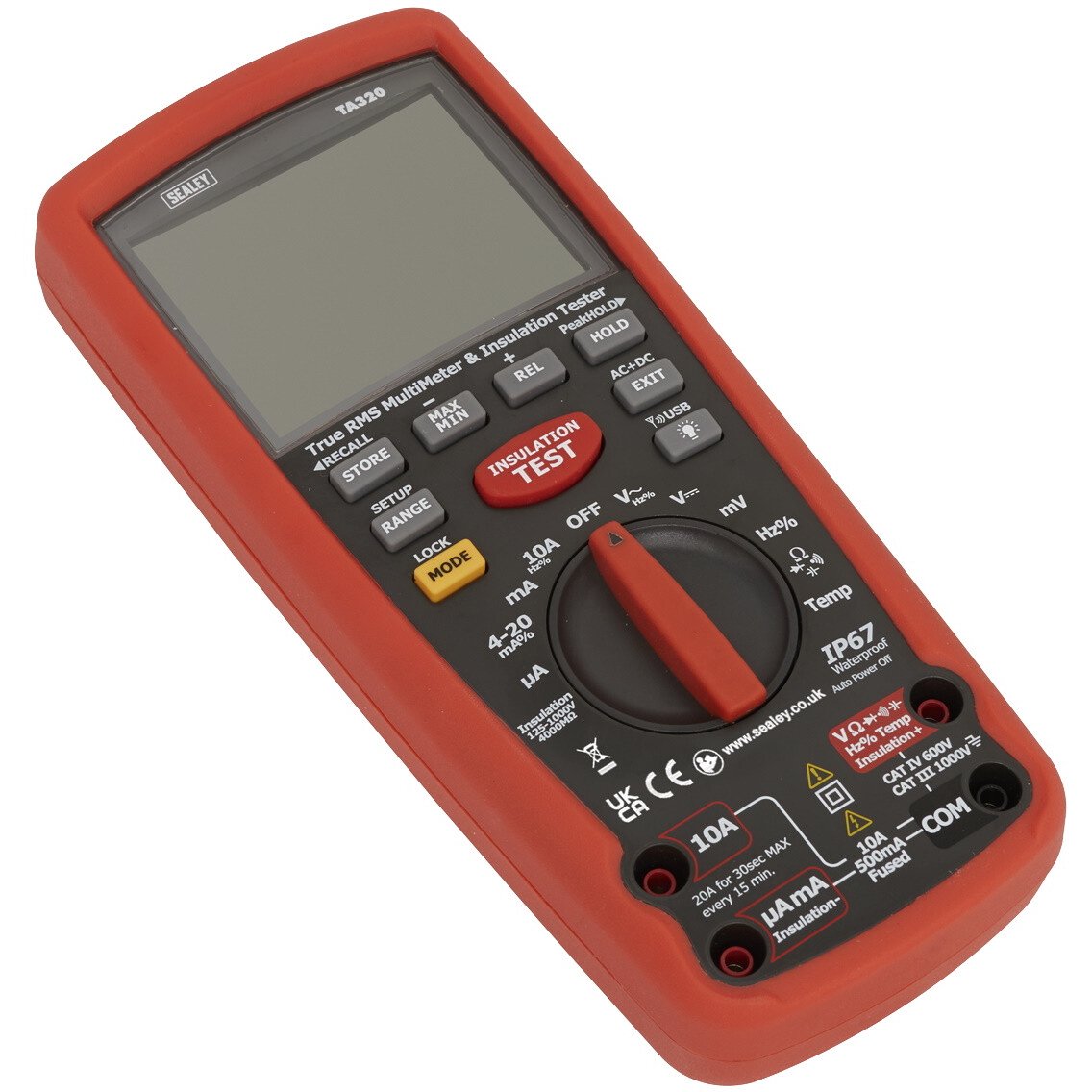

Specially designed for hybrid vehicles and conforms to EN61010 CAT III (1000V) and CAT IV (600V).
Unlike other multimeters this unit has an insulation test function that allows testing of the insulation of the high voltage wires found on hybrid vehicles.
Can be used as a stand-alone device or linked wirelessly with a USB interface to a PC or laptop enabling results to be graphed, saved or printed.

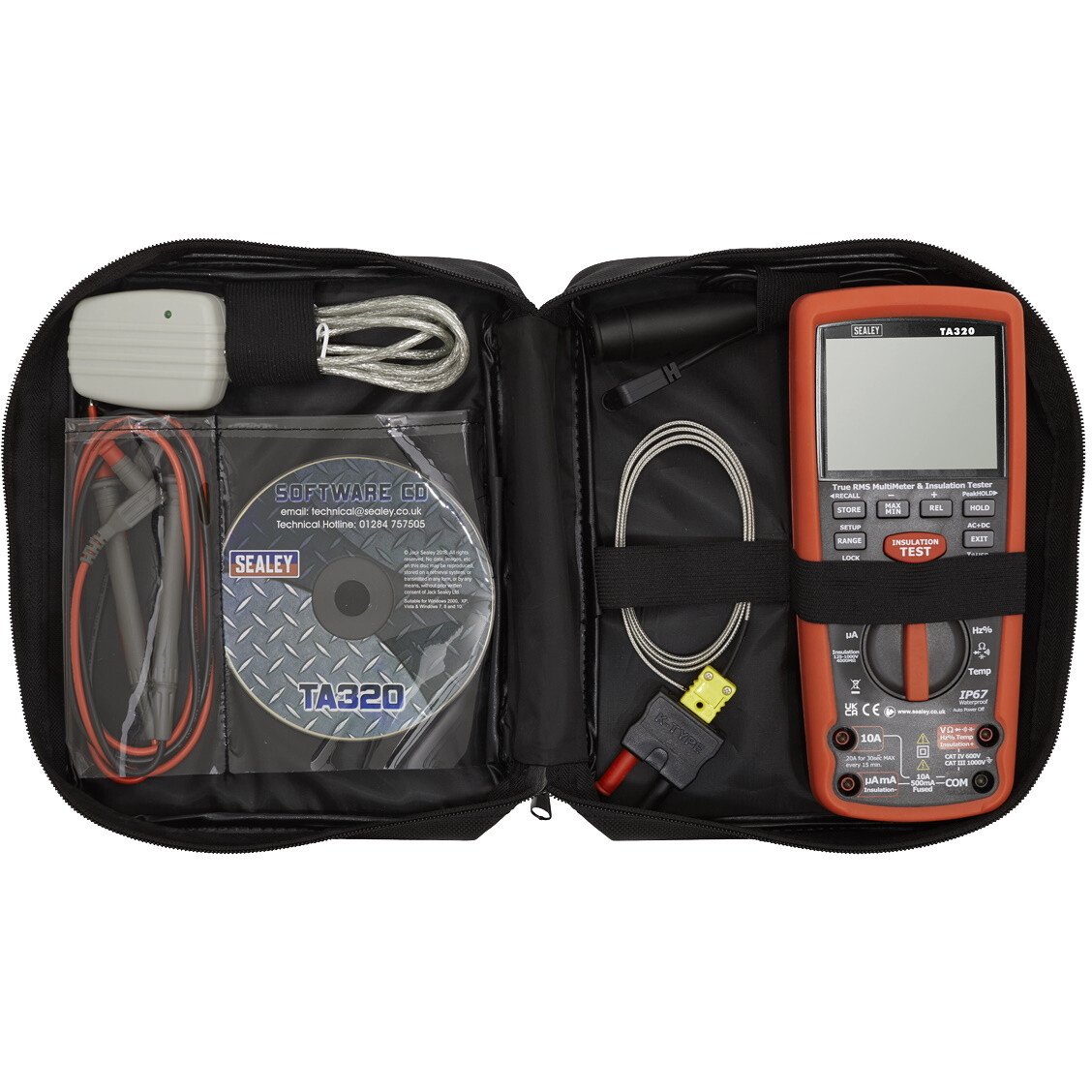

Supplied with high voltage probes, thermocouple and wireless USB cable.
The unit also has the usual functions expected on a high quality multimeter including true RMS (Root-Mean-Square) and IP67 waterproof rating.- Features
Features
Nett Weight:
700g Tach (rpm): No Dwell: No AC Voltage: 400mV, 4V, 40V, 400V, 1000V DC Voltage: 400mV, 4V, 40V, 400V, 1000V AC Current: 400µA, 4000µA, 40mA, 400mA, 10A DC Current: 400µA, 4000µA, 40mA, 400mA, 10A Capacitance: 40nF, 400nF, 4µF, 40µF, 400µF, 4000µF, 40mF Frequency: 40Hz-10kHz Duty Cycle: 0.1-99.9% Pulse Width: 100µs-100ms Resistance: 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ Continuity: <35Ω Temperature: -50 to +1000°C, -58 to +1832°F IR Temperature: No Insulation Test: 125V, 250V, 500V, 1000V Diode Check: Yes Transistor Test: No Back Light: Yes Bar-Graph Display: Yes Display Hold: Yes Auto-Ranging: Yes Inductive Coupler: No PC Interface: Yes Digits Height: 20mm Auto Power Off: Yes Low Battery Indicator: Yes Batteries (supplied): 6 x 1.5V AA Hi-Impact Case: Yes Size (L x W x D): 220 x 95 x 56mm PC Compatibility: Windows 2000, XP, Vista, Win7
