- Description
-
Details

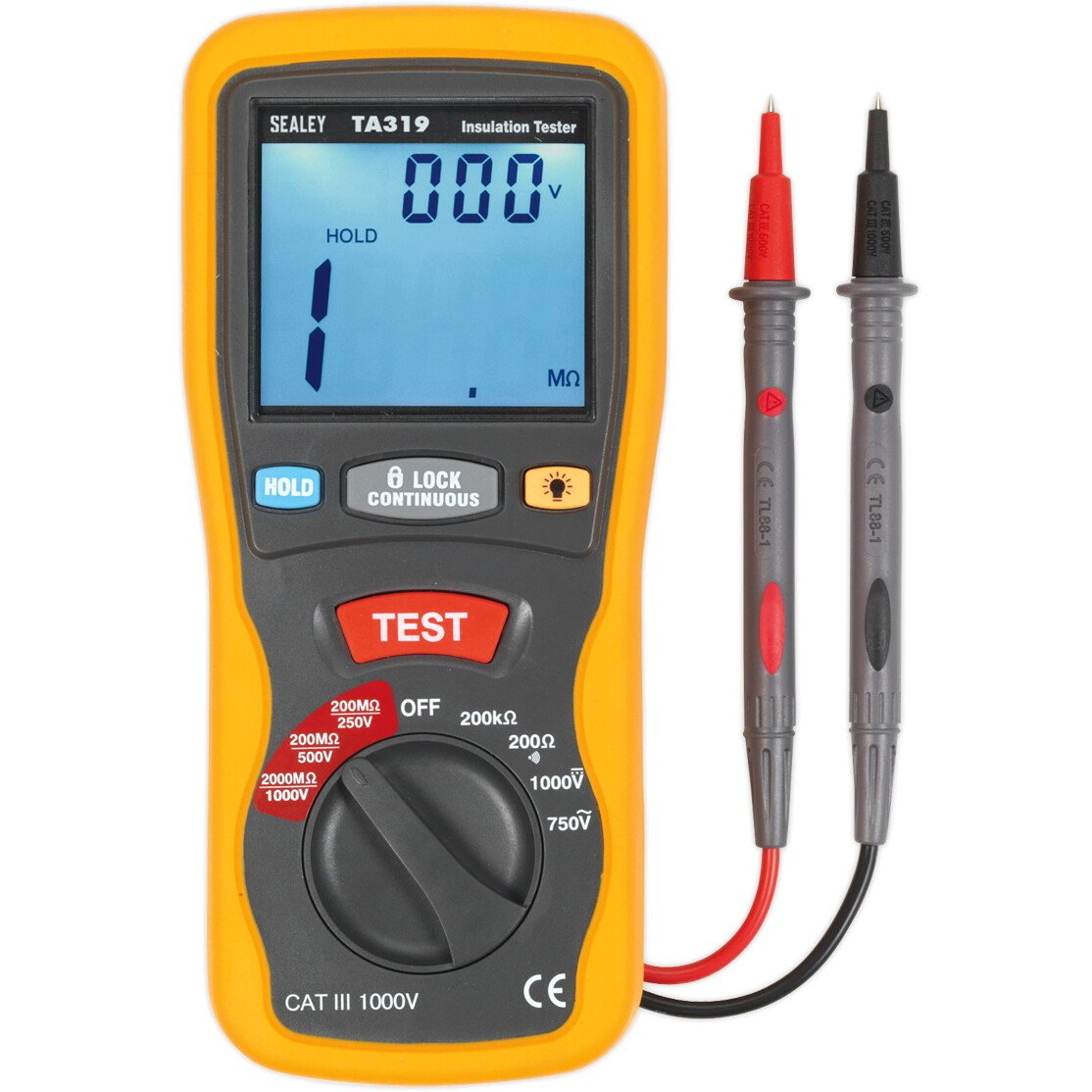

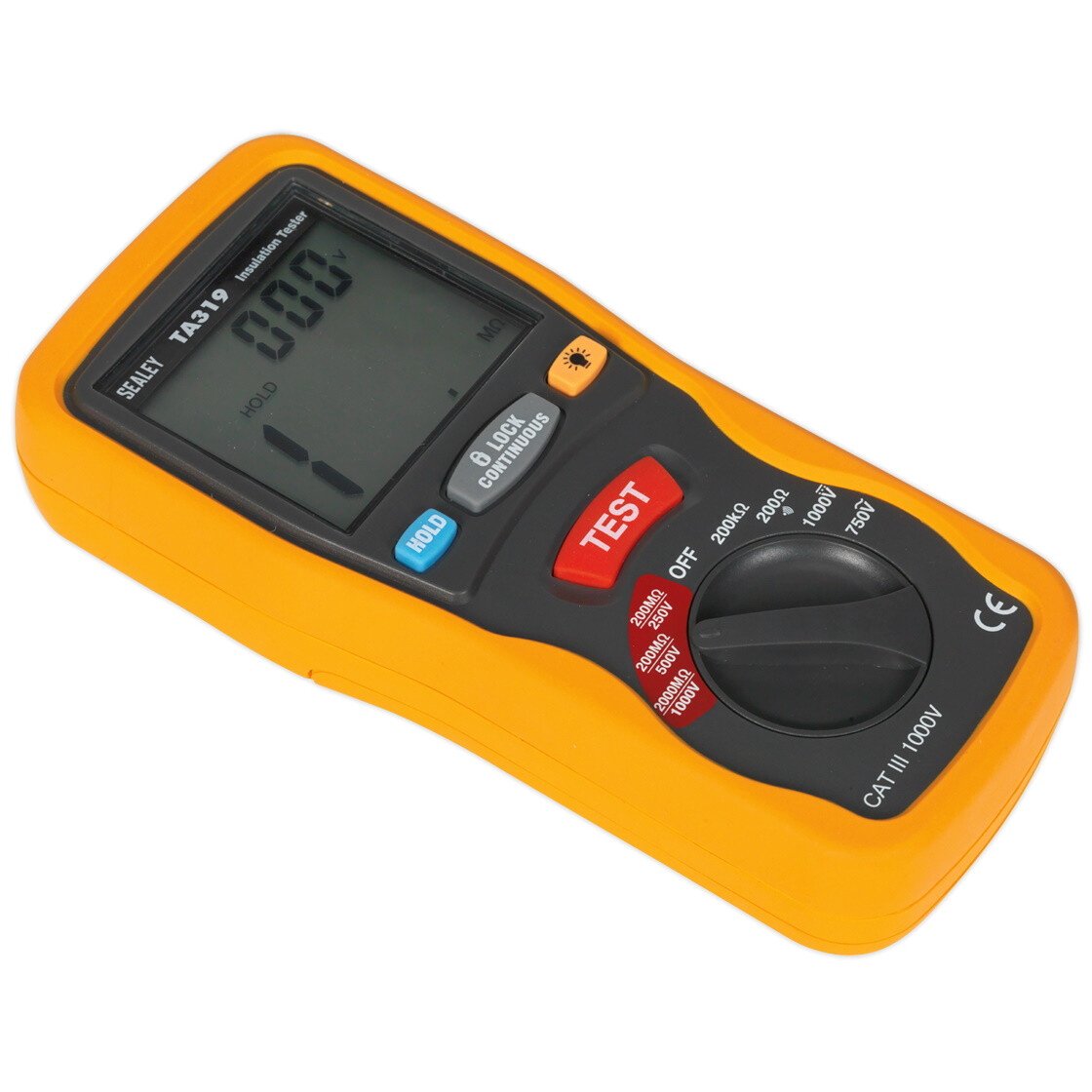

Specially designed for testing insulation on high voltage cables.

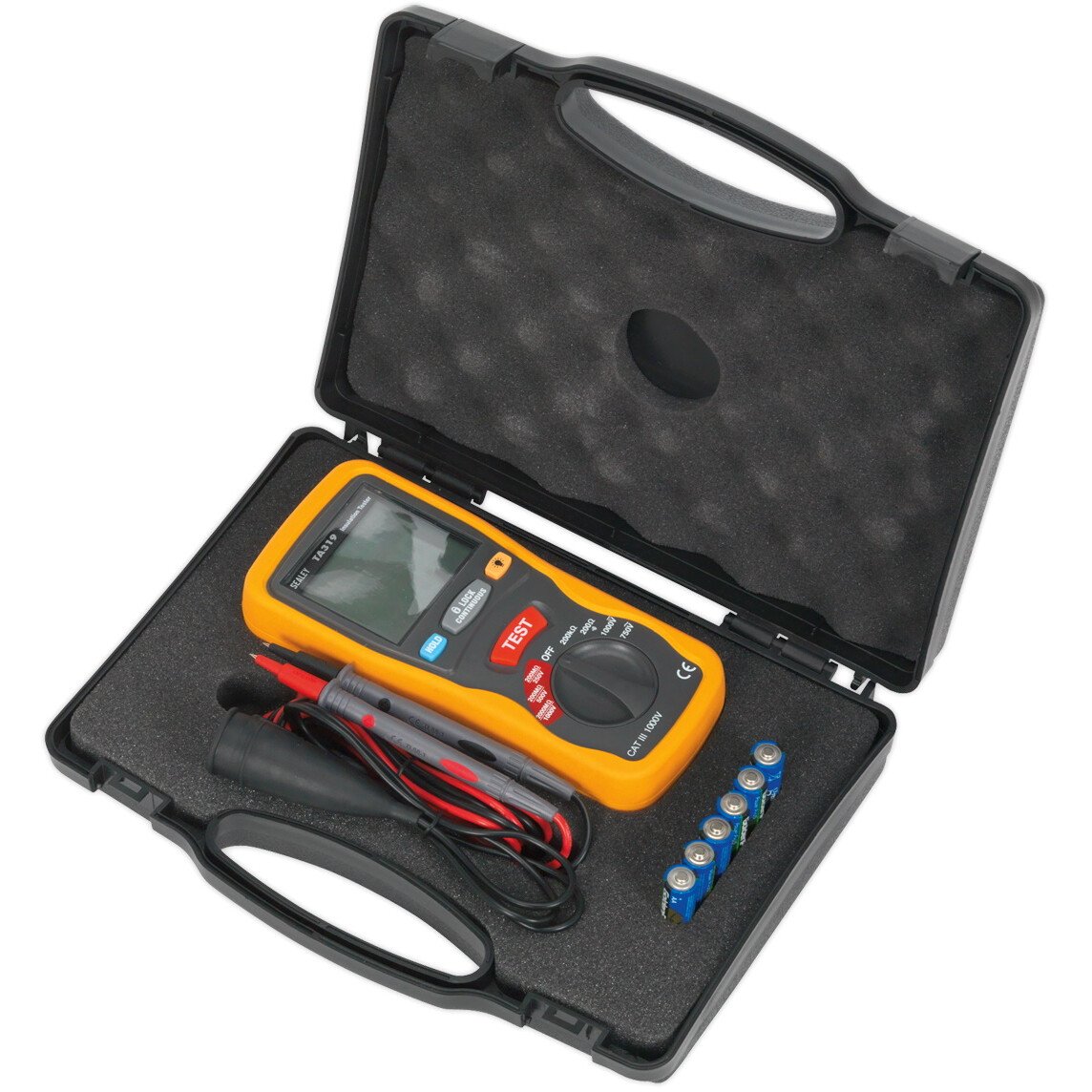

Supplied with test leads, batteries and carry case.
Conforms to EN61010 CAT III (1000V).- Features
Features
Voltage AC: Range; 750V, Max Resolution; 1V, Accuracy; (1.2% 10 digits) Voltage DC: Range; 1000V, Max Resolution; 1V, Accuracy; (0.8% 3 digits) Specification Table: Storage Temperature: -10C to +60C, (<70%R.H) Continuity Test: Active Sound Level; ≤40, Test Current; ≤200mA Insulation Resistance: Range; 200M 100k (3.5% 5 digits) Resistance: Range; 200 0.1 (1% 2 digits) Operating Temperature: 0C to +40C, (<80%R.H) Test Voltage: 250V/200MΩ, 500V/200MΩ, 1000V/2000MΩ Batteries: 6 x 1.5V (supplied)
