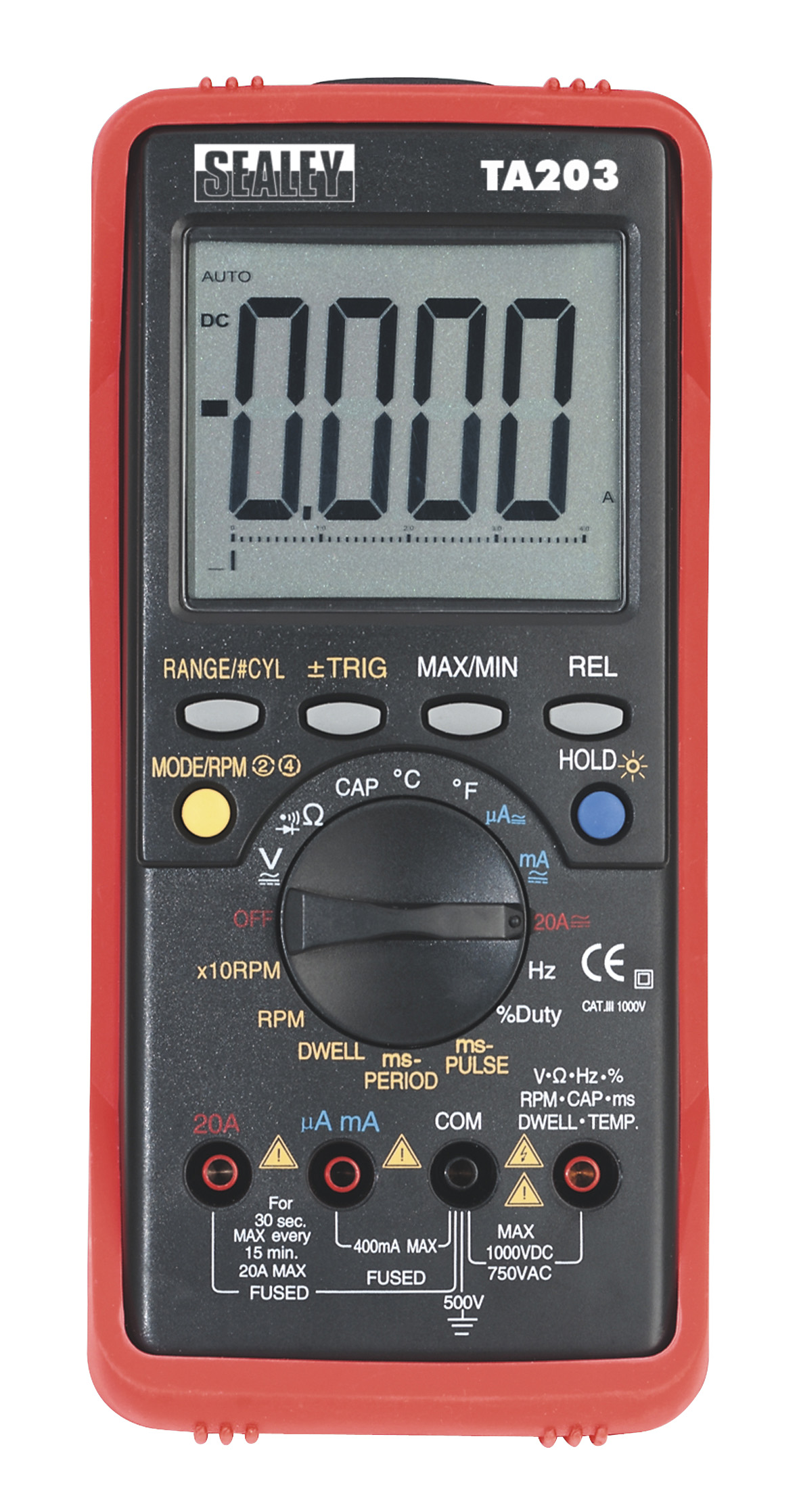

Sealey TA203 Automotive Digital Multimeter 15 Function Bar Graph/PC Link

Extra large, hi-contrast LCD display with 36mm high digital read-out, bar graph and backlight.
Durable bi-composite case with probe storage and integral stand, suitable for the toughest workshop conditions.
Features millisecond pulse-width function for accurate measurement of fuel injection systems.
Includes auto-ranging, data hold and auto-power-off.
Bar-graph is essential for the correct testing of lambda sensors.
Supplied with inductive coupler (IC) with adjustable sensitivity, for fast reading of engine rpm, test leads (probe and clip) and thermocouple plus USB interface cable and Windows ME/XP/Vista software for downloading data to PC.
Specification:
Tach (rpm): 4-Stroke 600-4000 (x1)rpm, 600-12000 (x10)rpm, 2-Stroke & DIS 300-4000 (x1)rpm, 300-6000 (x10)rpm
Dwell: 1Cyl 0-360°, 2Cyl 0-180°, 3Cyl 0-120°, 4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45°, 10Cyl 0-36°, 12Cyl 0-30°
AC Voltage: 400mV, 4V, 40V, 400V, 750V (Auto-ranging, except 400mV)
DC Voltage: 400mV, 4V, 40V, 400V, 1000V (Auto-ranging)
AC Current: 400µA, 4000µA, 40mA, 400mA, 4A, 20A (Auto-ranging for µA & mA)
DC Current: 400µA, 4000µA, 40mA, 400mA, 4A, 20A (Auto-ranging for µA & mA)
Capacitance: 40nF, 400nF, 4µF, 40µF, 100µF (Auto-ranging)
Frequency: 5Hz, 50Hz, 500Hz, 5kHz, 30kHz (Auto-ranging)
Duty Cycle: 0.1-99.9%
Period: 2-20ms
Pulse Width: 2-10ms
Resistance: 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ (Auto-ranging)
Continuity, Audible: <150Ω
Temperature: -20 to +760°C/-4 to +1400°F
Diode Check: Typical Test Current 0.3mA
Transistor Test: n/a
Back Light: Yes
Bar-Graph Display: Yes
Display Hold: Yes
Auto-Ranging: Yes
Inductive Coupler: Yes
PC Interface: Yes
Digit Height: 36mm
Auto Power Off: Yes
Low Battery Indicator: Yes
Batteries (included): 9V (PP3)
Hi-Impact Case: Yes
Size (L x W x D): 215 x 100 x 60mm
Weight: 605g
