- Description
-
Details

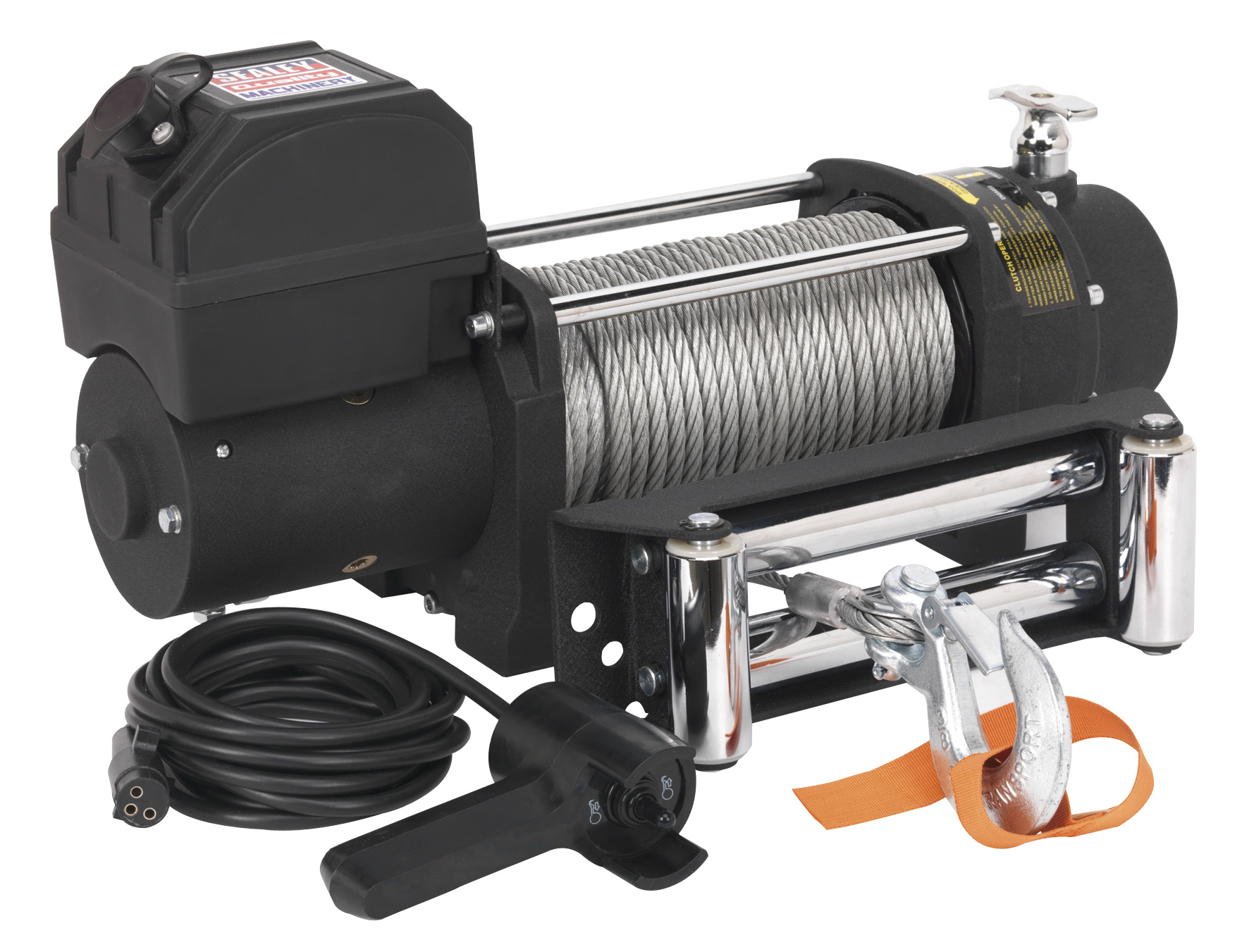

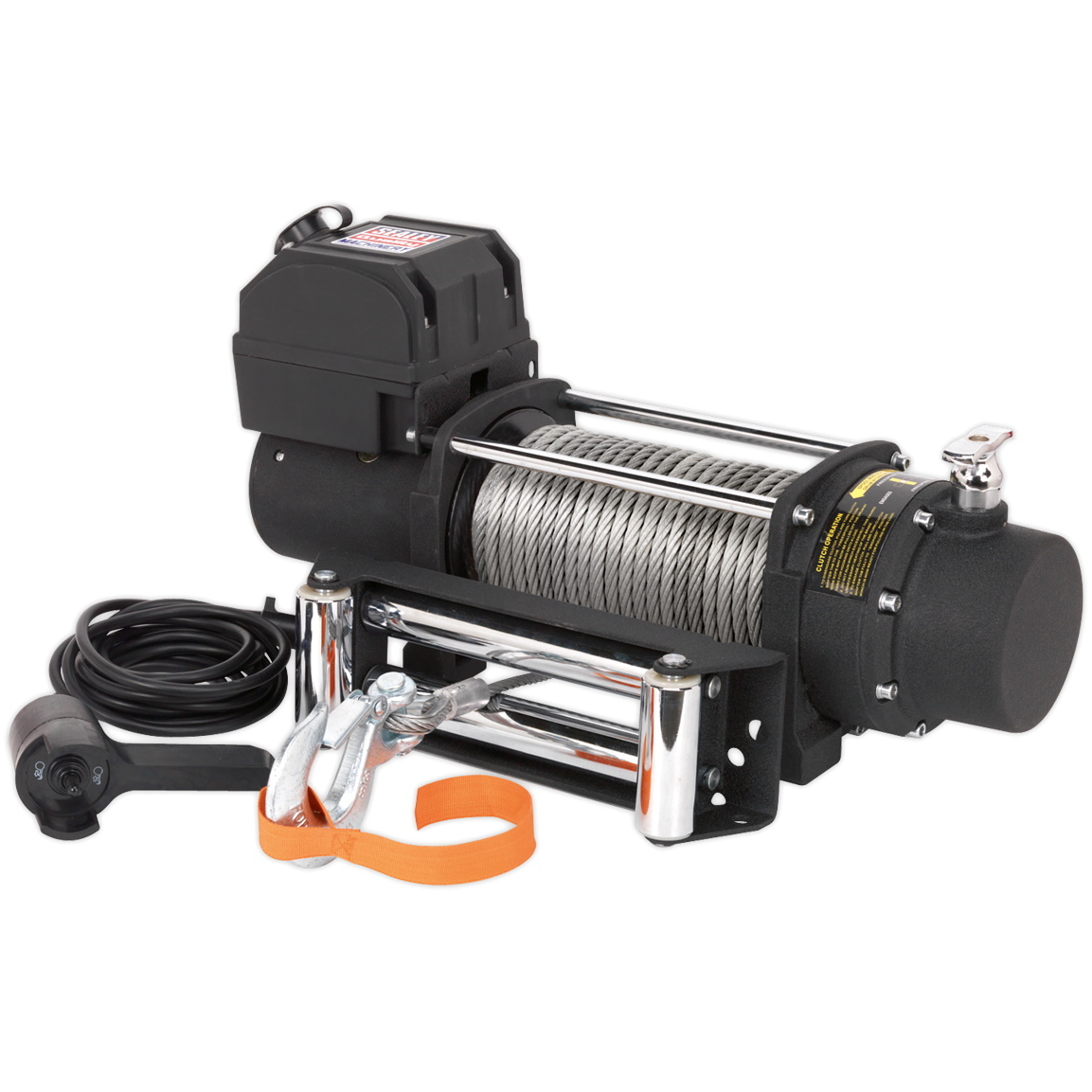

Designed and built with the toughest jobs in mind.
Check out the features:
- Heavy-duty all-weather housing.
- High power 1.96kW 12V DC series wound motor gives first class pulling power.
- 3-Stage planetary gears using oversized components for greater torque plus mechanical braking.
- Remote control allows power in and power out of cable from a safe distance.
- Ergonomic 'lift & turn' free spool clutches.
- High quality wire rope with a 4-way roller fairlead for smooth and even distribution of cable onto drum.
IP67 Ingress Protection rating.- Features
Features
Consumable Parts:
SRW5450.WR, SRW5450.DR Current Draw: No-Load - 90A, Maximum Load - 420A Gear Ratio: 196.6: 1 Line Pull*: 4300kg(9500lb) Line Speed*: No Load - 4.3m/min, Maximum Load - 1.6m/min Motor Power: 1.9kW Note: *Performance quoted at first layer of cable on drum Supply: 12V Wire Rope Diameter: 9.2mm Wire Rope Length: 26m
