- Description
-
Details
• Fully automatic 8-stage battery support unit & charger, designed for charging a variety of GEL, AGM, lead acid and calcium batteries with auto voltage selection.
• Additional function to charge lithium batteries via selection button on front of unit.
• Automatically selects and charges 6, 12, or 24V.
• Zero volt battery charging, enabling recovery and charging of a completely discharged battery (providing any load removed from the rechargeable battery).
• Old battery sulfation repair function.
• 13.5V DC power supply for battery support function providing support for the battery during prolonged electronic diagnostic checks.
• Reverse polarity, short circuit, over temperature and overcharging protection.
• Built-in cooling fan that only operates when required.

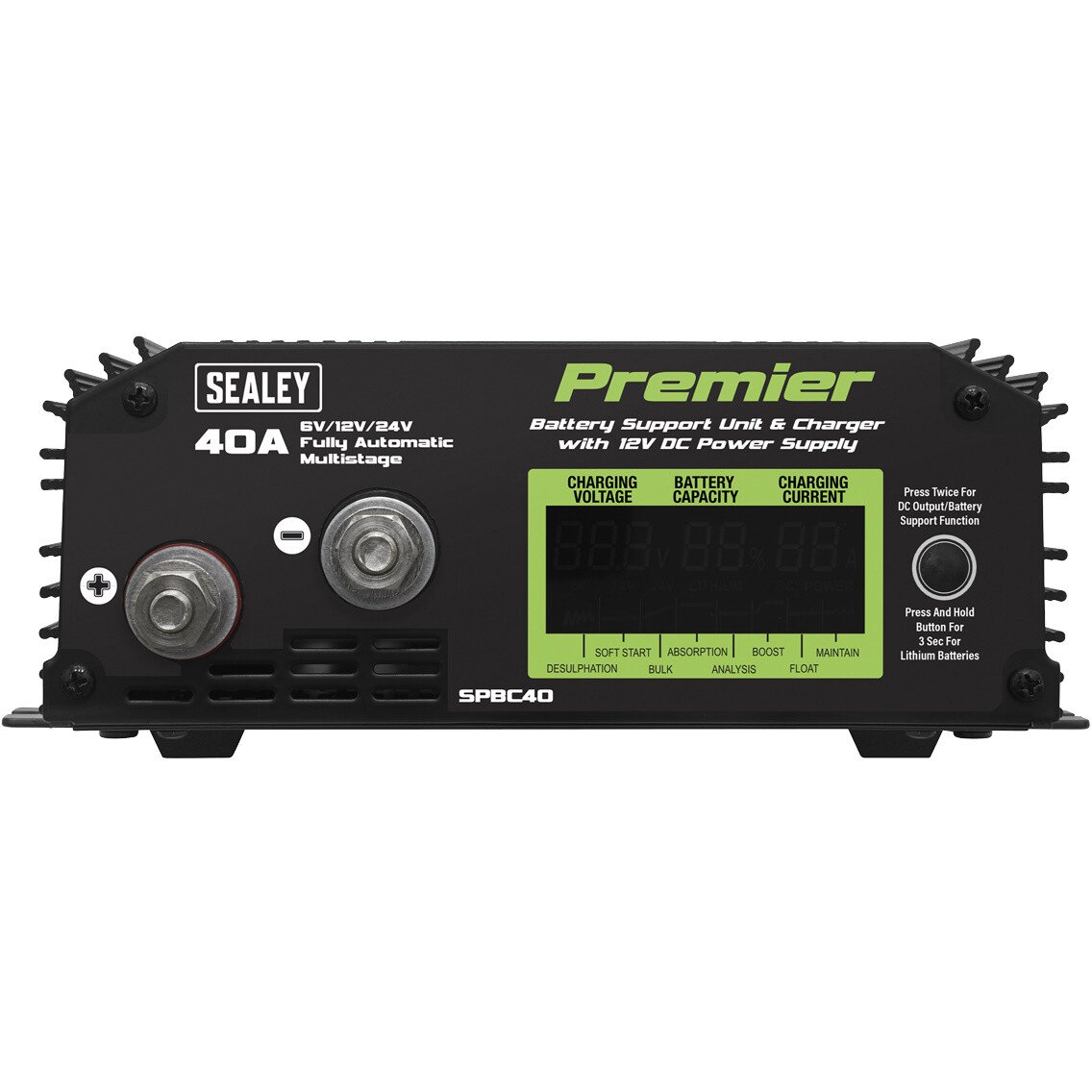

• Intuitive LED screen displays charging voltage, current, battery capacity percentage, and illuminated charging stages.
• Compact design with mounting brackets for permanent fitting.
• 5 Year guarantee*.- Features
Features
Nett Weight:
3.0kg Supply: 230V Output: 6/12/24V Output Charge: 40A @ 6/12V (21A @ 24V) Battery Range: 80Ah – 400Ah Battery Support Mode: 13.5V dc – 40A Cable Length: 2m IP Rating: IP20 Dimensions: 202 x 76 x 282mm
