- Description
-
Details
Manufactured to comply with Safety of Machinery (Safety) Regulations 1992 (and amendments) and fully CE approved.
Saw arms are fitted with hydraulic damping to prevent the arm being dropped onto the workpiece and to ensure smooth cutting performance.

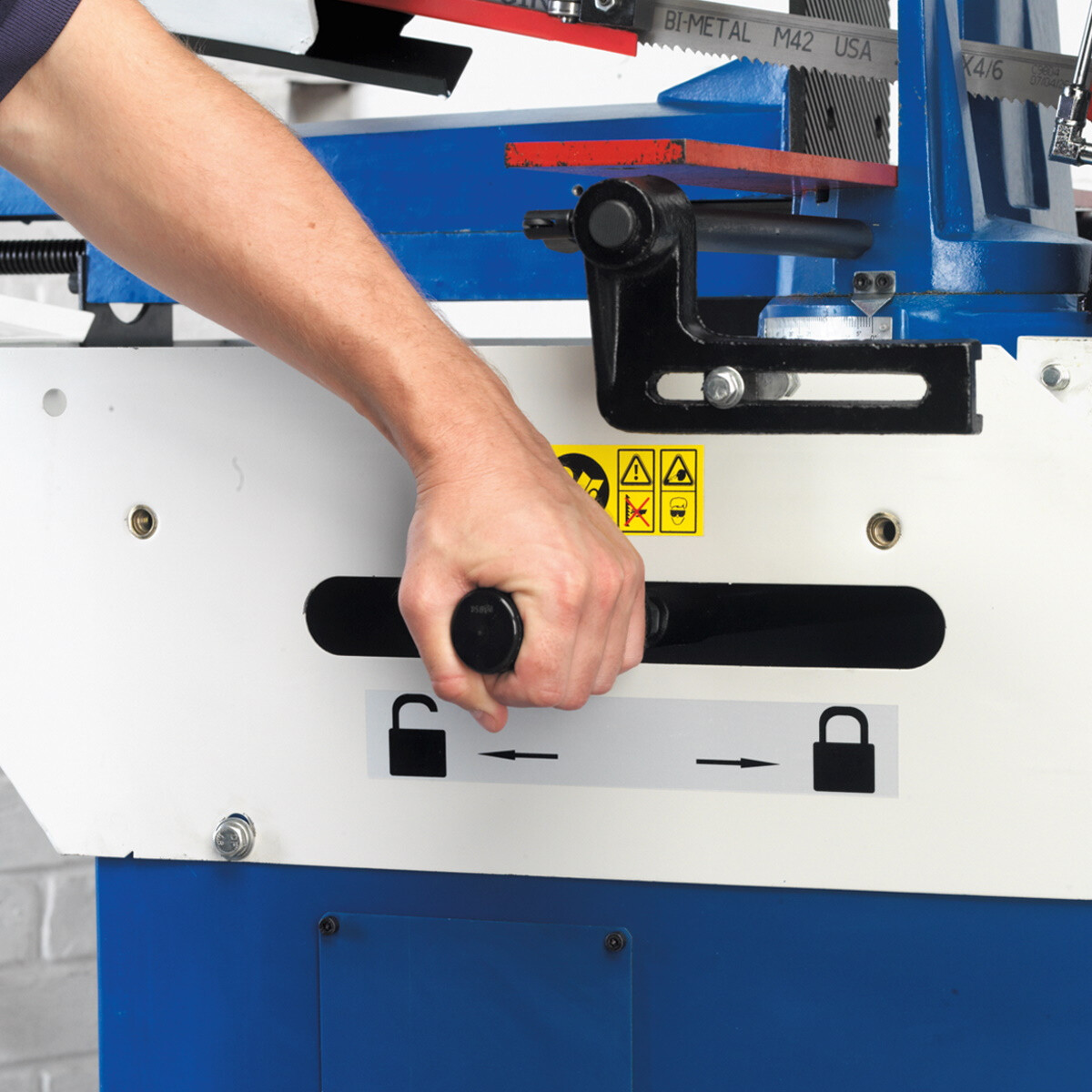

Bow rotates up to 60 angle allowing workpiece to always sit in a central position.

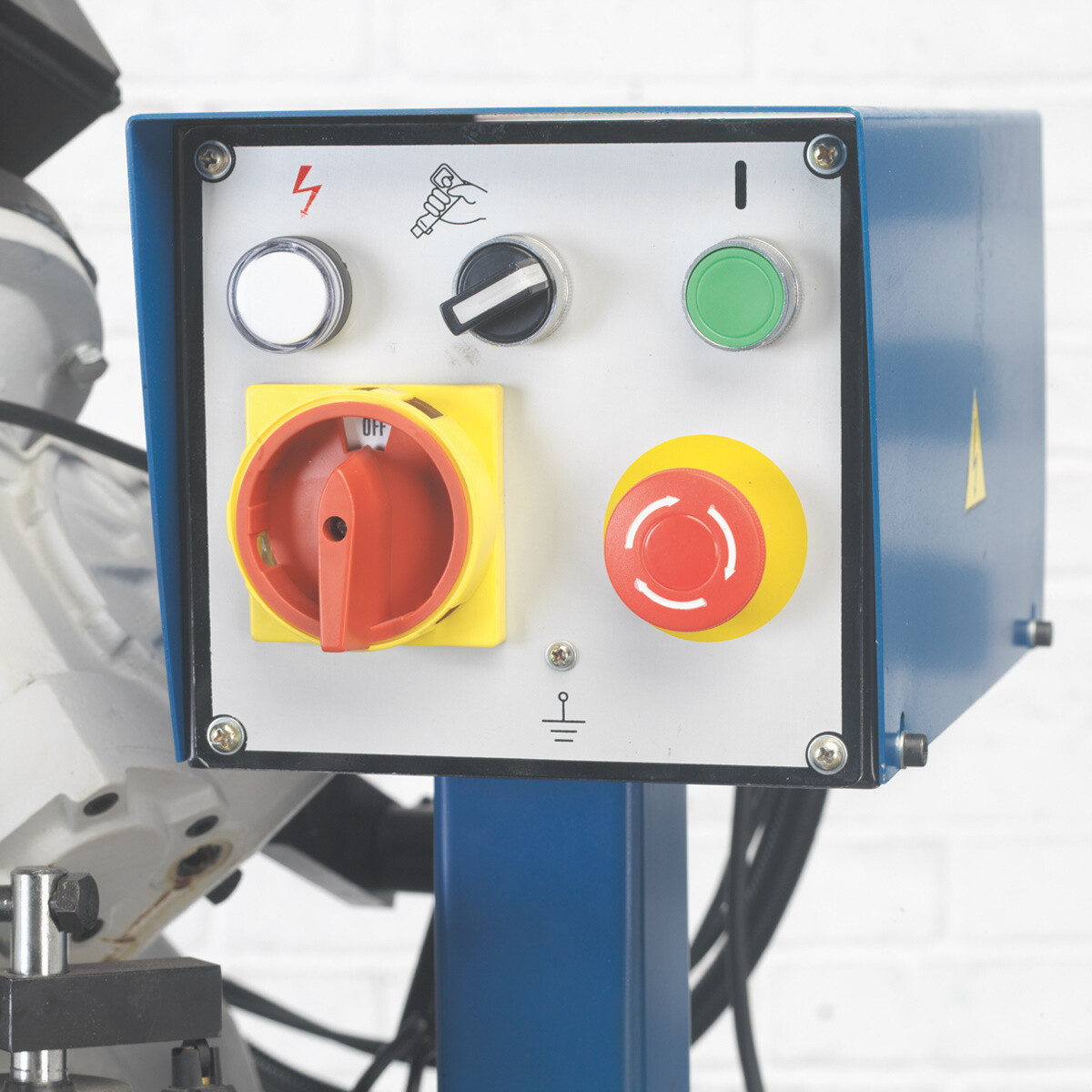

Coolant fluid system and main power controls are switched on individual 24V/230V circuits for extra safety.
Features auto and manual shut-off switches giving the user options of control when in use.
Heavy-duty single phase electric motor.- Features
Features
Nett Weight:
218kg Capacity 60° - Round: Ø90mm Capacity 60° - Square: 85mm Capacity 45° - Round: Ø150mm Capacity 45° - Square: 145mm Capacity 0° - Square: 220mm Capacity 0° - Round: Ø220mm Capacity 0° - Rectangle (H x W): 255 x 150mm Blade Size: 2460 x 25 x 0.9mm Blade Speed: 72m/min Coolant Pump Power: 25W Motor Power: 1100W Supply: 230V Overall Size (W x D x H): 1720 x 800 x 1810mm
