Details

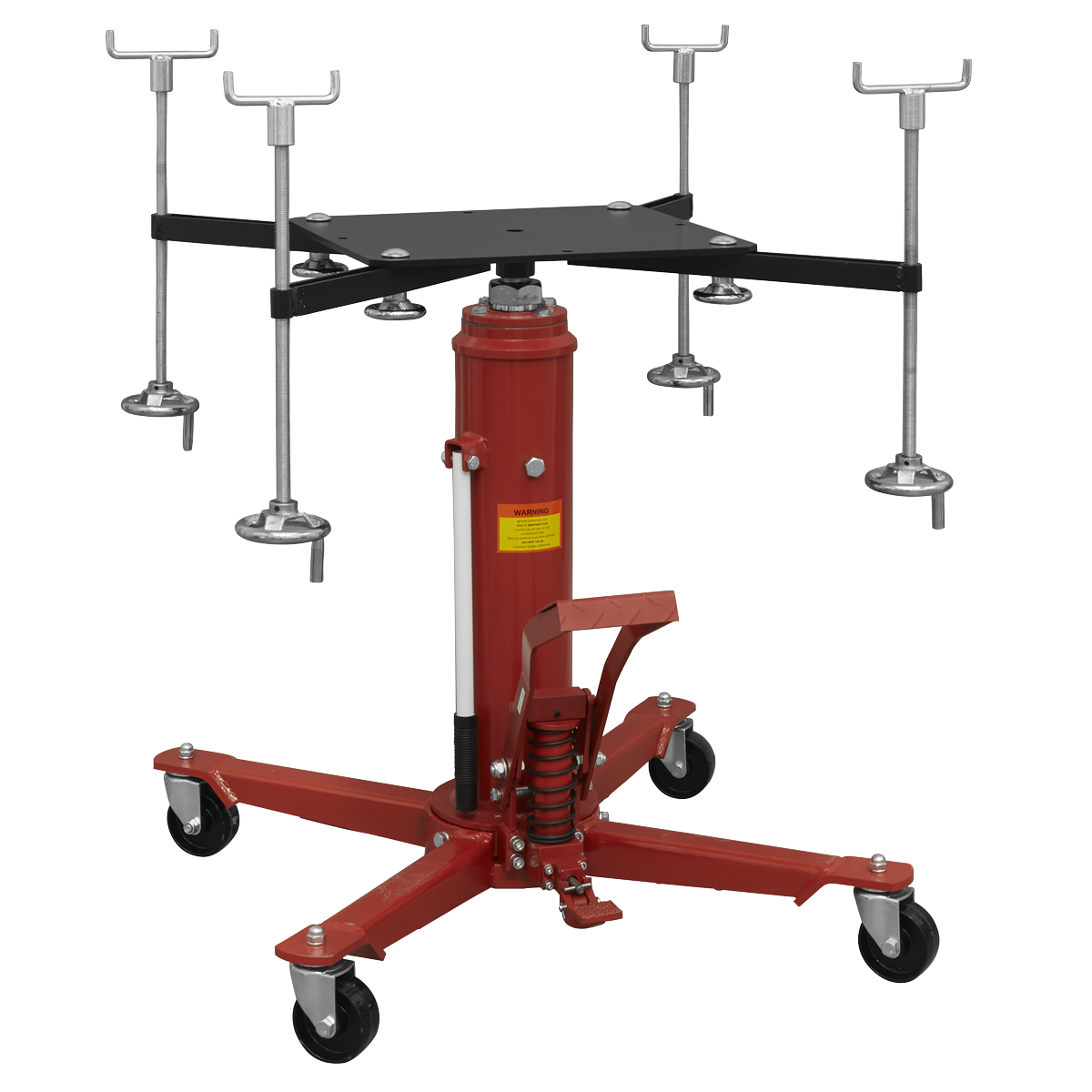

TELESCOPIC RAM - a two-stage ram reduces the clearance.
HIGH SPEED LIFT - quick lift, when unladen, reducing the foot pumps required to meet the load. But when laden slows to give control and accuracy.
FOOT PEDAL OPERATION - keeping hands free for fixings and adjustments.
SAFE - Spring loaded dead man's safety release control reduces the risk of inadvertent lowering.
HIGHLY MANOEUVRABLE - large, smooth running castors, make positioning quick and easy.
VERSATILE ADAPTOR - Fully adjustable Subframe/Engine support and supplied with various designs of fittings to suit different applications.
WILL ASSIST - in the removal and fitting of complete engine assemblies, rear axles, gearboxes, fuel tanks, exhaust systems and other awkward loads.
LABOUR SAVING DESIGN - allows many jobs to be carried out by one person.
EASY ASSEMBLY - the adaptor can be fitted and removed from the transmission jack with ease as required.
Features
Features
Base Size: | 1046 x 1046mm |
---|
|
Brand: | Sealey |
---|
|
Capacity: | 800TTJ - 800kg and SFC01 - 450kg |
---|
|
Fixed/Adjustable Saddle: | Adjustable |
---|
|
Maximum Saddle Height: | 1920mm |
---|
|
Minimum Saddle Height: | 960mm |
---|
|
Nett Weight: | 110kg |
---|
|
Pump Strokes to Maximum Height: | N/A |
---|
|
Ram Extensions: | 2 |
---|
|
Saddle Adjustment - Left-to-Right: | N/A |
---|
|
Saddle Tilt - Backward: | 40 |
---|
|
Saddle Tilt - Forward: | 15 |
---|
