- Description
-
Details

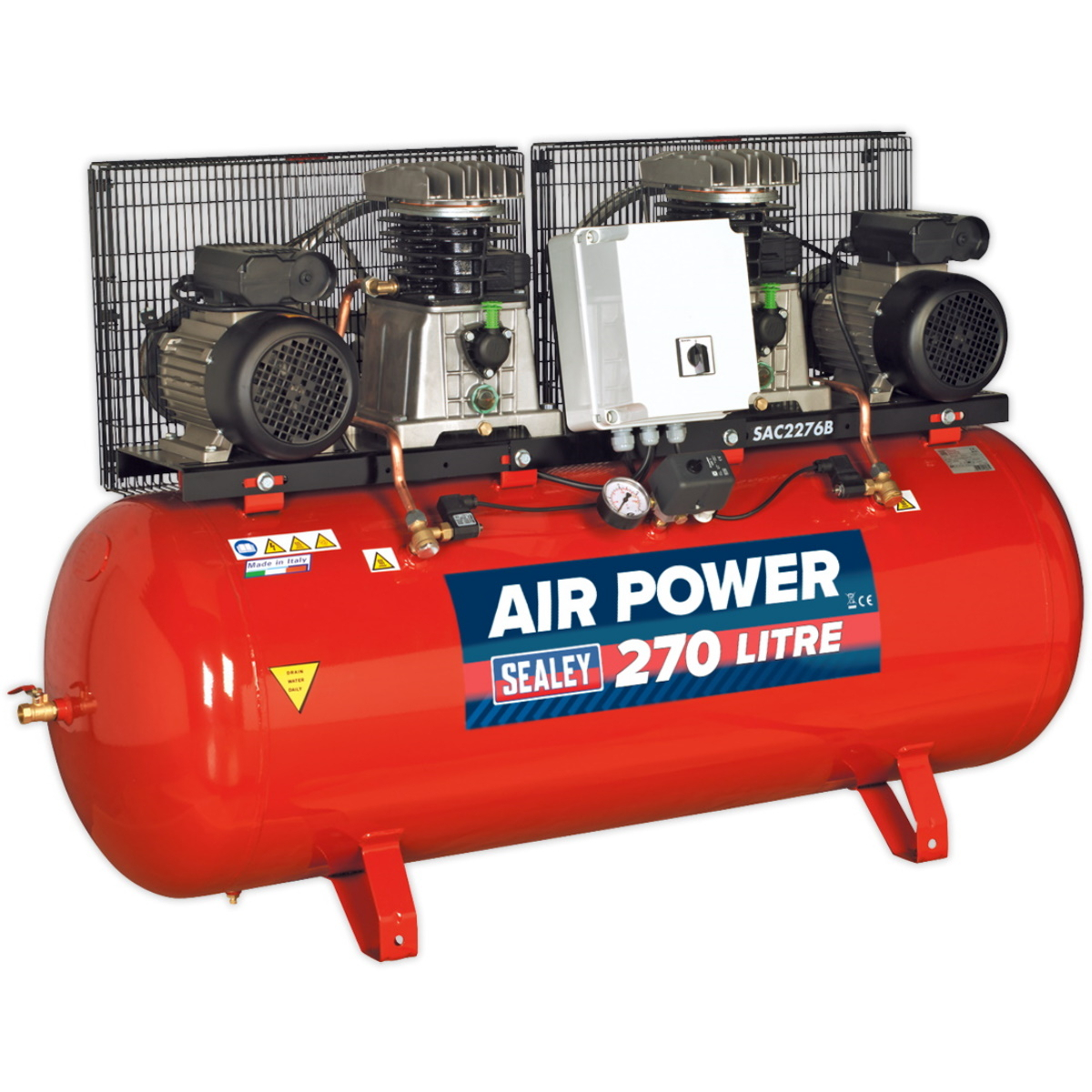

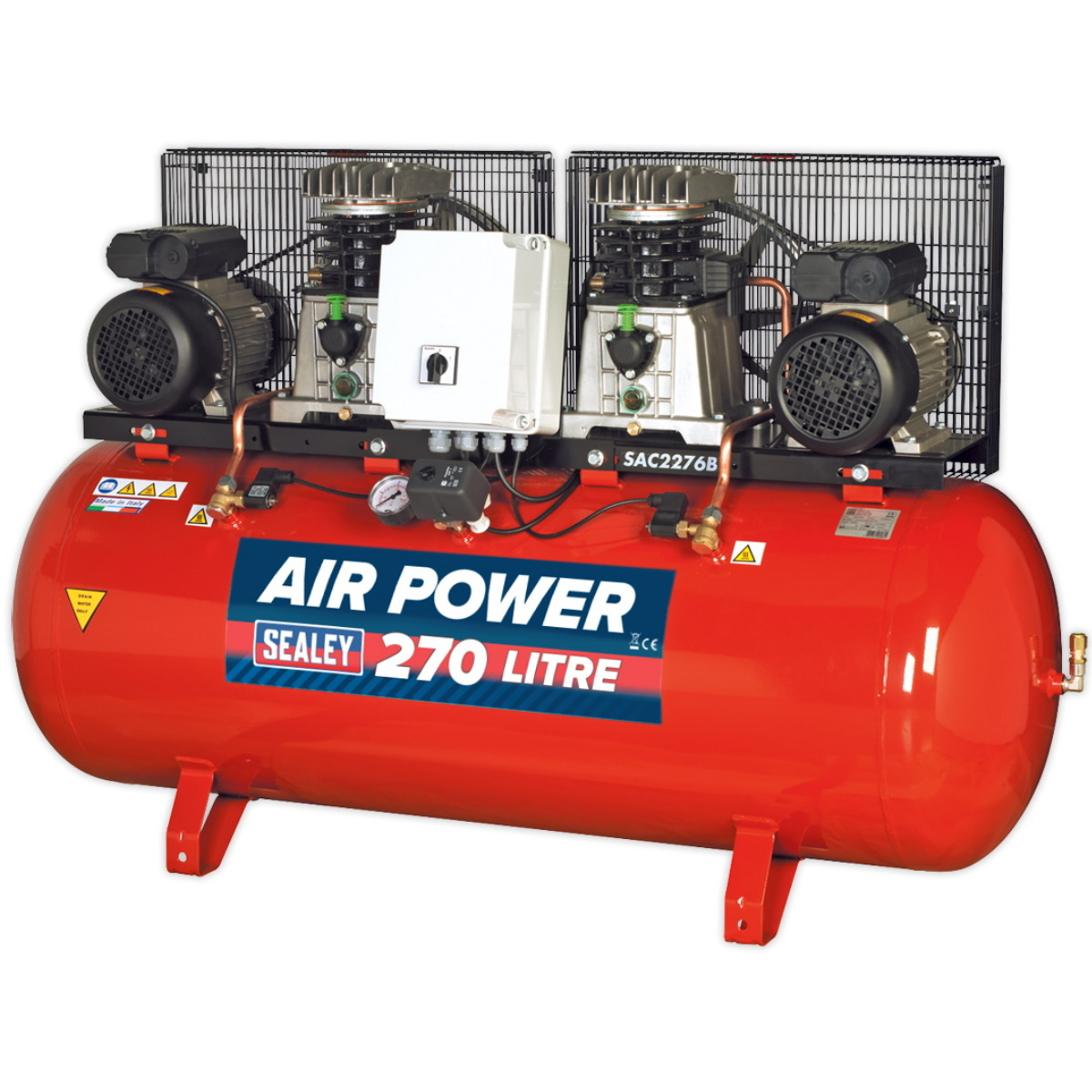

High output unit suitable for the professional workshop.
Fitted with two genuine 3hp motors and two identical pumps.
Twin capacitors and a centrifugal switch aid trouble free starting on a 230V 32Amp supply.
This unit is supplied with a control box that allows stepped start up or just one motor/pump running at a time.
Pumps feature heavy-duty full cast cylinders, capped by alloy heads for improved heat dissipation and long life.
Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.
Supplied with full CE certification, test certificates and operating/maintenance manual.
WARNING: Before using the compressor, check the oil level by observing the sight glass. If the oil is not up to the max mark it should be topped up with synthetic oil suitable for temperatures ranging from -5°C to 45°C (viscosity 5W50). Do NOT use mineral oil in these compressors.
For further information please click here to view user instructions.- Features
Features
Motor Output:
3hp (x2) Supply: 230V Phase: 1ph Minimum Rated Supply: 32A Speed: 1280rpm Air Displacement cfm(ltr/min): 30(850) Maximum Free Air Delivery cfm(ltr/min): 21.8(618) Maximum Pressure: 145psi(10bar) Receiver Capacity: 270ltr Outlet: 1/2"BSP Female Tap Size (W x D x H): 1550 x 540 x 960mm Weight: 150kg
