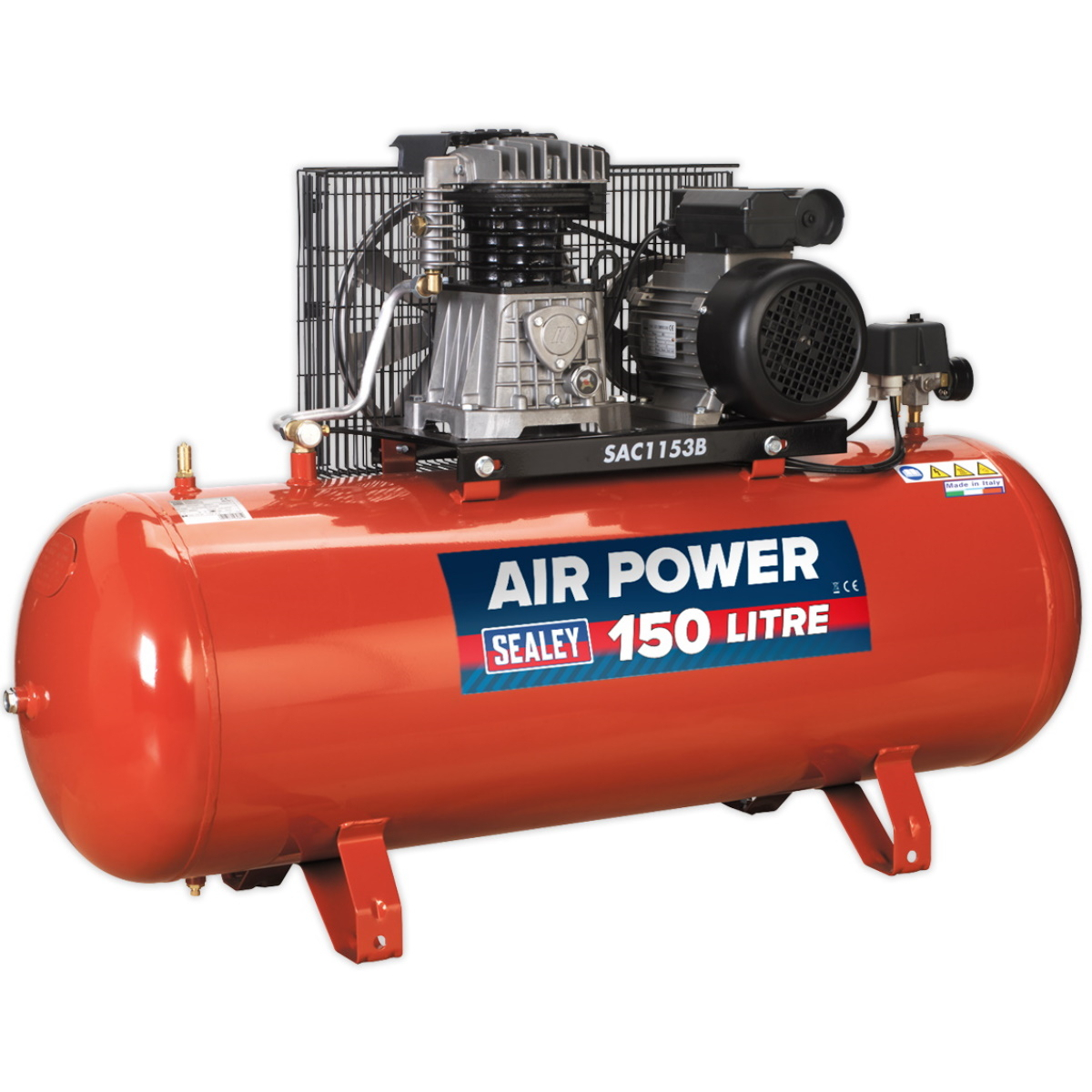

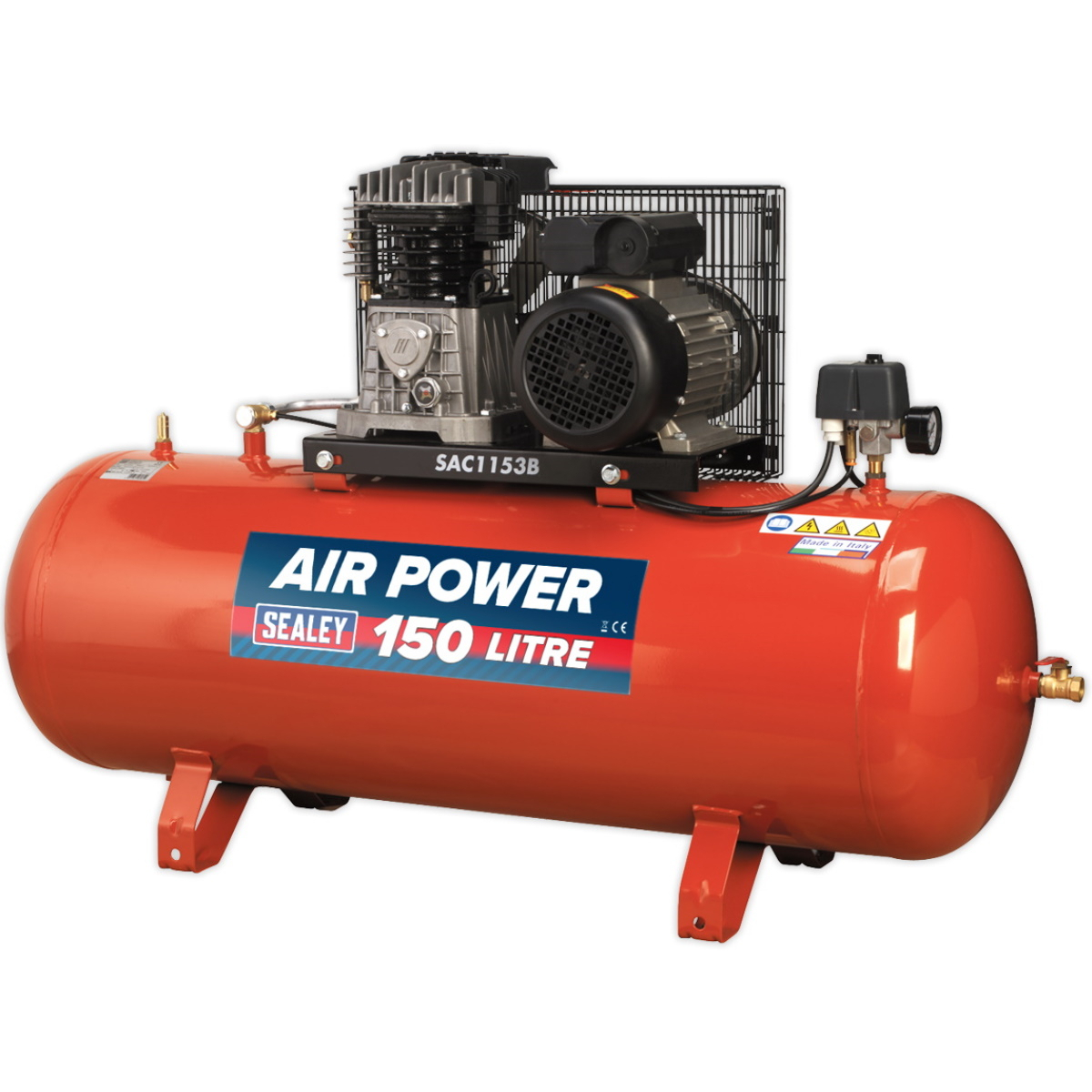

Suitable for the professional workshop, these units are fitted with a genuine 3hp motor.
Twin capacitors and a centrifugal switch aid trouble free start up on a 13Amp supply.
Pumps feature heavy-duty full cast cylinders, capped by alloy heads for improved heat dissipation and long life.
Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.
Supplied with full CE certification, test certificates and operating/maintenance manual.
WARNING: Before using the compressor, check the oil level by observing the sight glass. If the oil is not up to the max mark it should be topped up with synthetic oil suitable for temperatures ranging from -5°C to 45°C (viscosity 5W50). It is NOT recommended to use mineral oil in these compressors.
For further information please click here to view user instructions.- Features
Features
Motor Output:
3hp Supply: 230V Phase: 1ph Minimum Rated Supply: 13A Speed: 1630rpm Air Displacement cfm(ltr/min): 13.4(380) Maximum Free Air Delivery cfm(ltr/min): 8.8(249) Maximum Pressure: 145psi(10bar) Receiver Capacity: 150ltr Outlet: 1/2"BSP Female Tap Size (W x D x H): 1320 x 400 x 820mm Weight: 78kg
