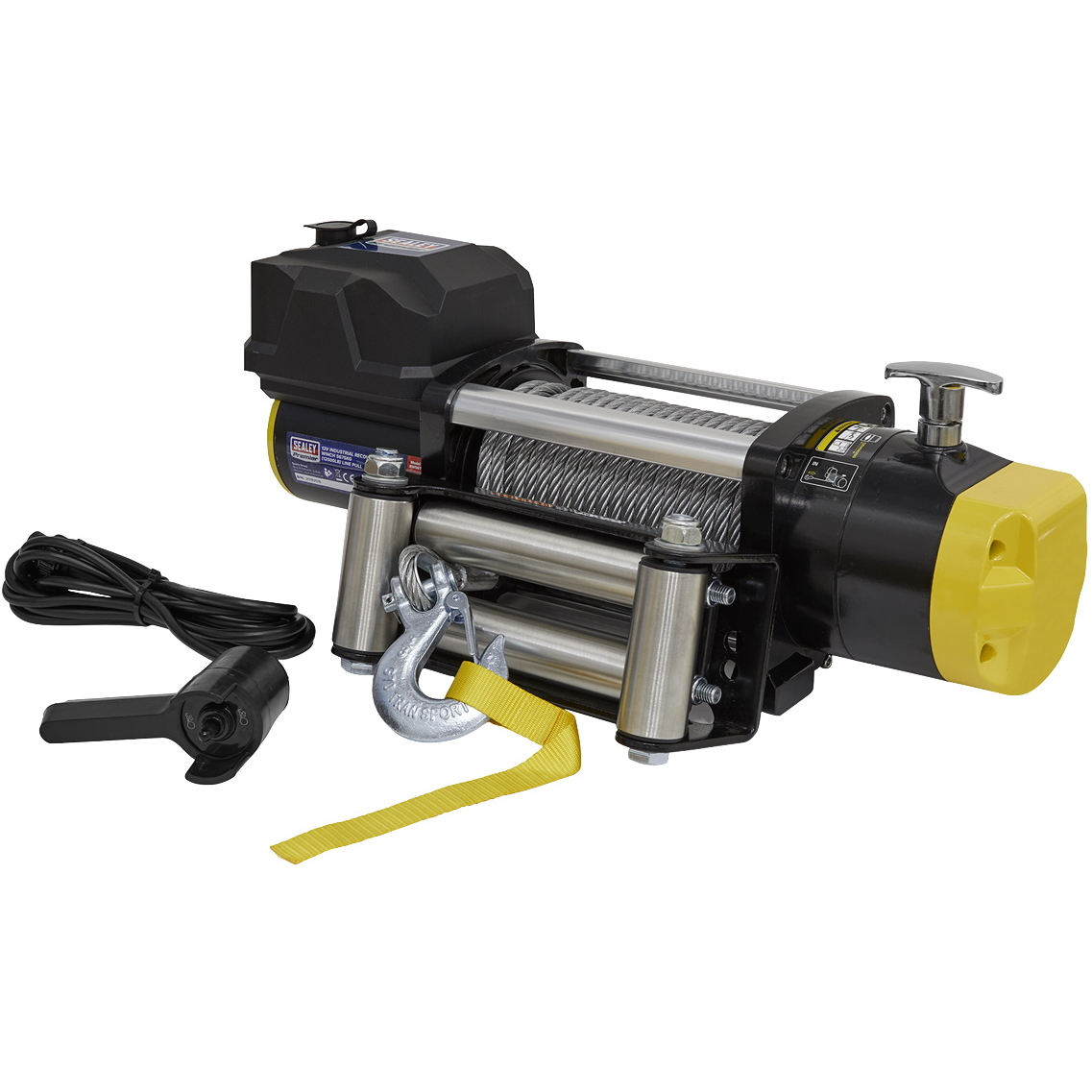

Designed and built with the toughest jobs in mind.
Check out the features:
- Heavy-duty all-weather housing.
- High power 2kW 12V DC series wound motor gives first class pulling power.
- 4-Stage planetary gears using oversized components for greater torque plus 'in drum' brake.
- Remote control allows power in and power out of cable from a safe distance.
- Ergonomic 'lift & turn' free spool clutches.
- High quality wire rope with a 4-way roller fairlead for smooth and even distribution of cable onto drum.- Features
Features
Current Draw:
No-Load - 50A, Maximum Load - 390A Gear Ratio: 171: 1 Line Pull*: 5675kg(12500lb) Line Speed*: No Load - 15m/min, Maximum Load - 1m/min Motor Power: 4.7kW(6.4hp) Note: *Performance quoted at first layer of cable onto drum Supply: 12V Wire Rope Diameter: 9.2mm Wire Rope Length: 26m
