- Description
-
Details

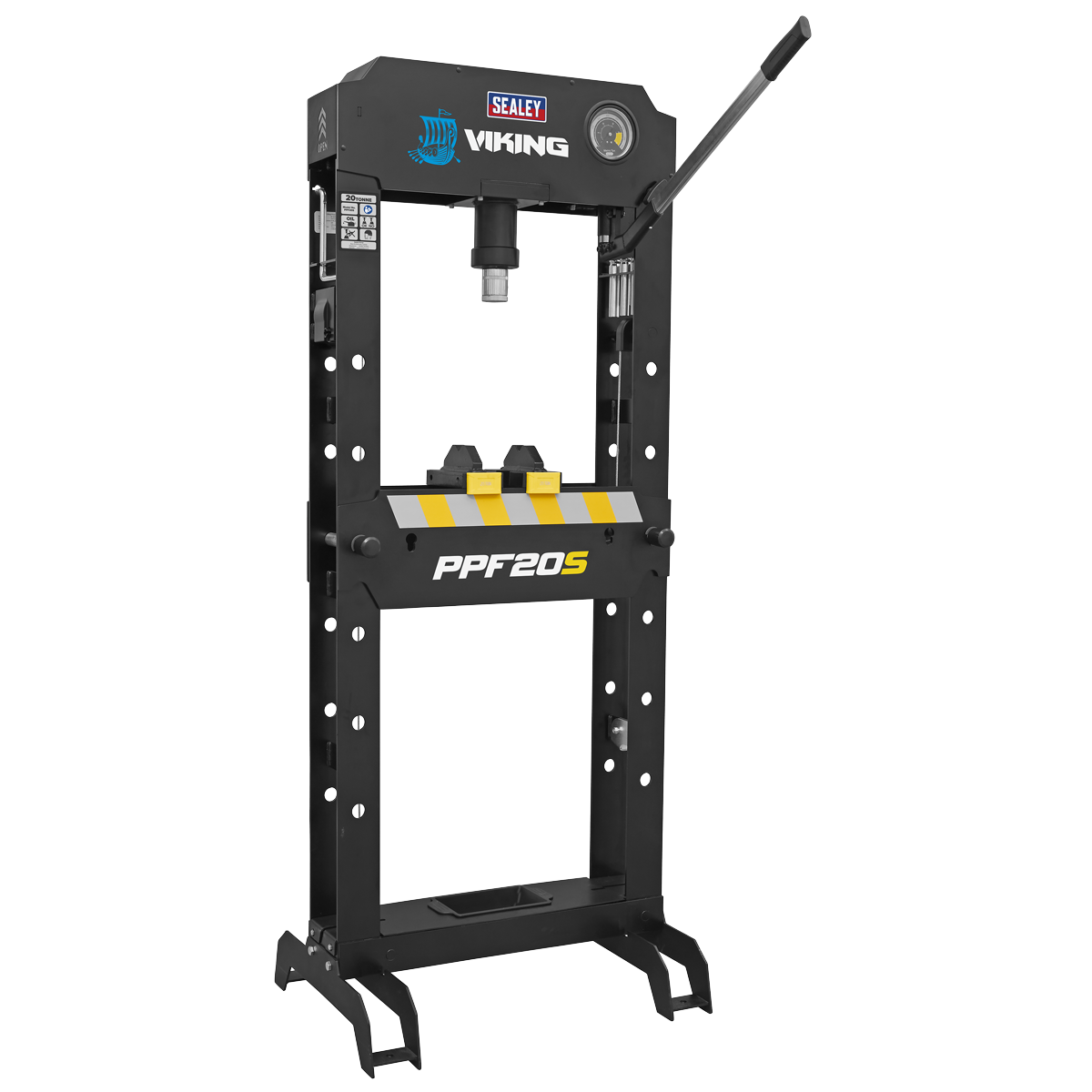

Heavy-duty steel frame construction with handle operated hydraulic pump unit.
Screw adjustable ram and adjustable work area with removable tray.
Frame head fitted with ram pressure gauge.
Winch assisted press table adjustment.
Storage for press pins included in frame.
Supplied with press pins, flat pressing plate/V-blocks.
5 Year guarantee*.
This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.- Features
Features
Bench or Floor Mounting: Floor Brand: Viking Capacity: 20 Tonne Gauge Included: Yes Lateral Ram Travel: n/a Maximum Height - Ram to Table: 875mm Minimum Height - Ram to Table: 25mm Nett Weight: 121.4kg Overall Height: 1800mm Overall Width: 710mm Ram Diameter: ø83mm Ram Stroke: 145mm Screw Extension: 75mm Table Aperture: 150mm Type: Floor Working Table Depth: 166mm Working Table Width: 710mm
