- Description
-
Details

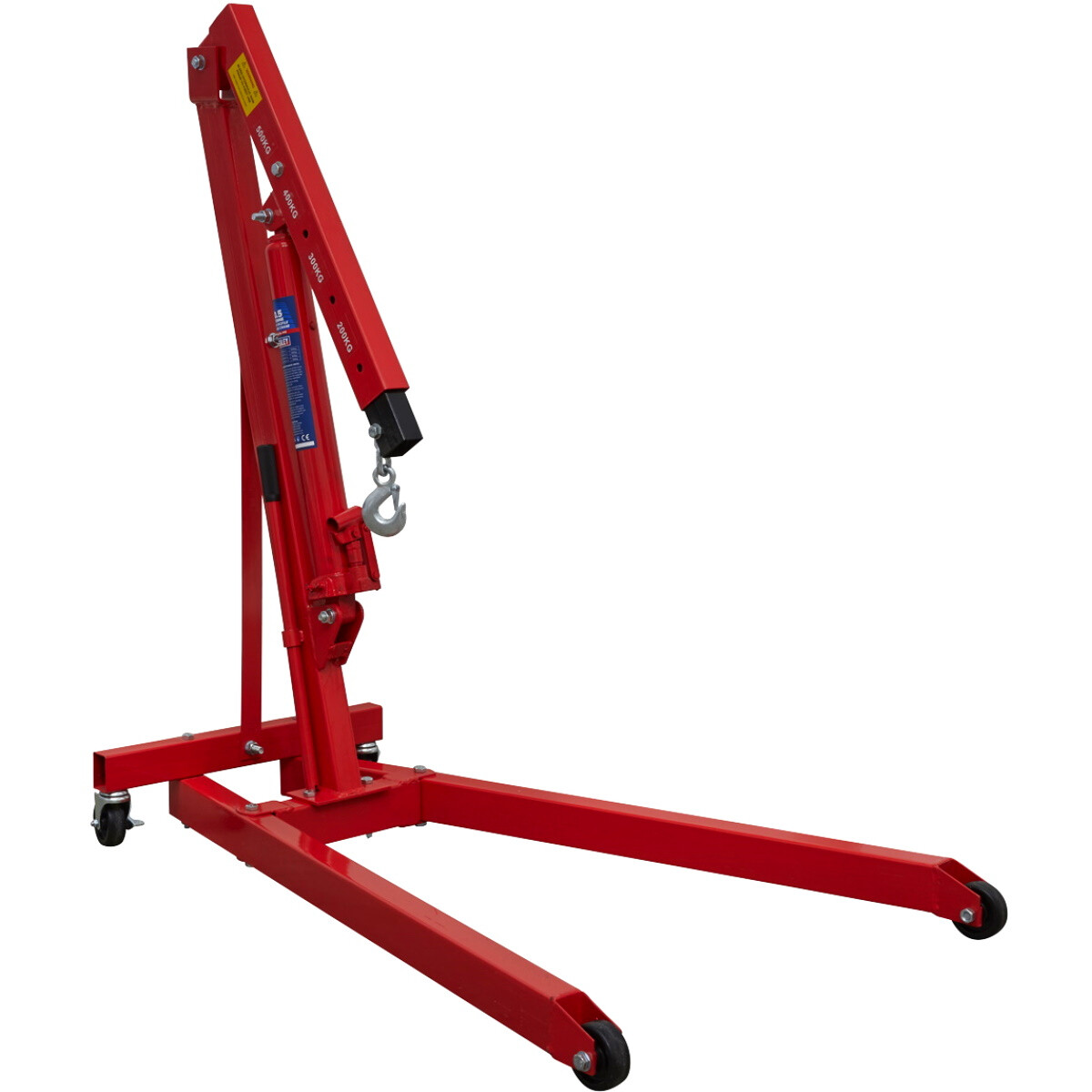

• Low entry engine crane with a height of only 100mm at the wheels.
• Weighs only 37kg so is extremely lightweight and manoeuvrable.
• Heavy-duty castors and pump access from side, for safe handling of loads.
• Delivered in knock-down form to reduce freight costs, some self-assembly required.- Features
Features
Height Jib Down:
1330mm Height Legs Folded: n/a Height of Frame: 100mm Length Legs Extended: n/a Length of Jib Position 1: 750mm Length of Jib Position 2: 860mm Length of Jib Position 3: 980mm Length of Jib Position 4: 1100mm Length of Jib Position 5: n/a Length: 1210mm Lifting Capacity in Position 1: 500kg Lifting Capacity in Position 2: 400kg Lifting Capacity in Position 3: 300kg Lifting Capacity in Position 4: 200kg Lifting Capacity in Position 5: n/a Max. Lift Ht at Jib Position 1: 1950mm Max. Lift Ht at Jib Position 2: 2050mm Max. Lift Ht at Jib Position 3: 2150mm Max. Lift Ht at Jib Position 4: 2250mm Max. Lift Ht at Jib Position 5: n/a Nett Weight: 37kg
