- Description
-
Details

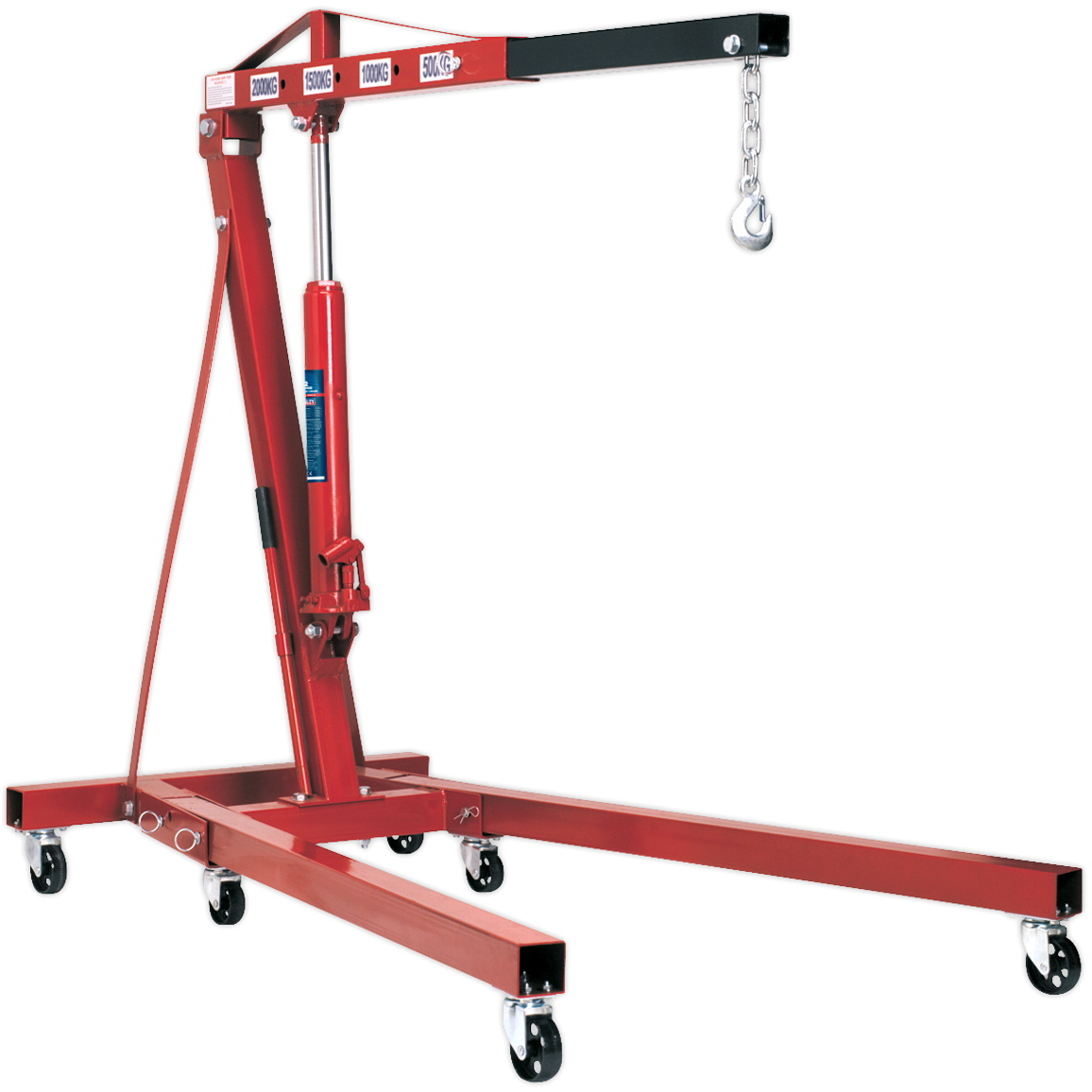

Lifts 2000kg at 930mm jib extension.

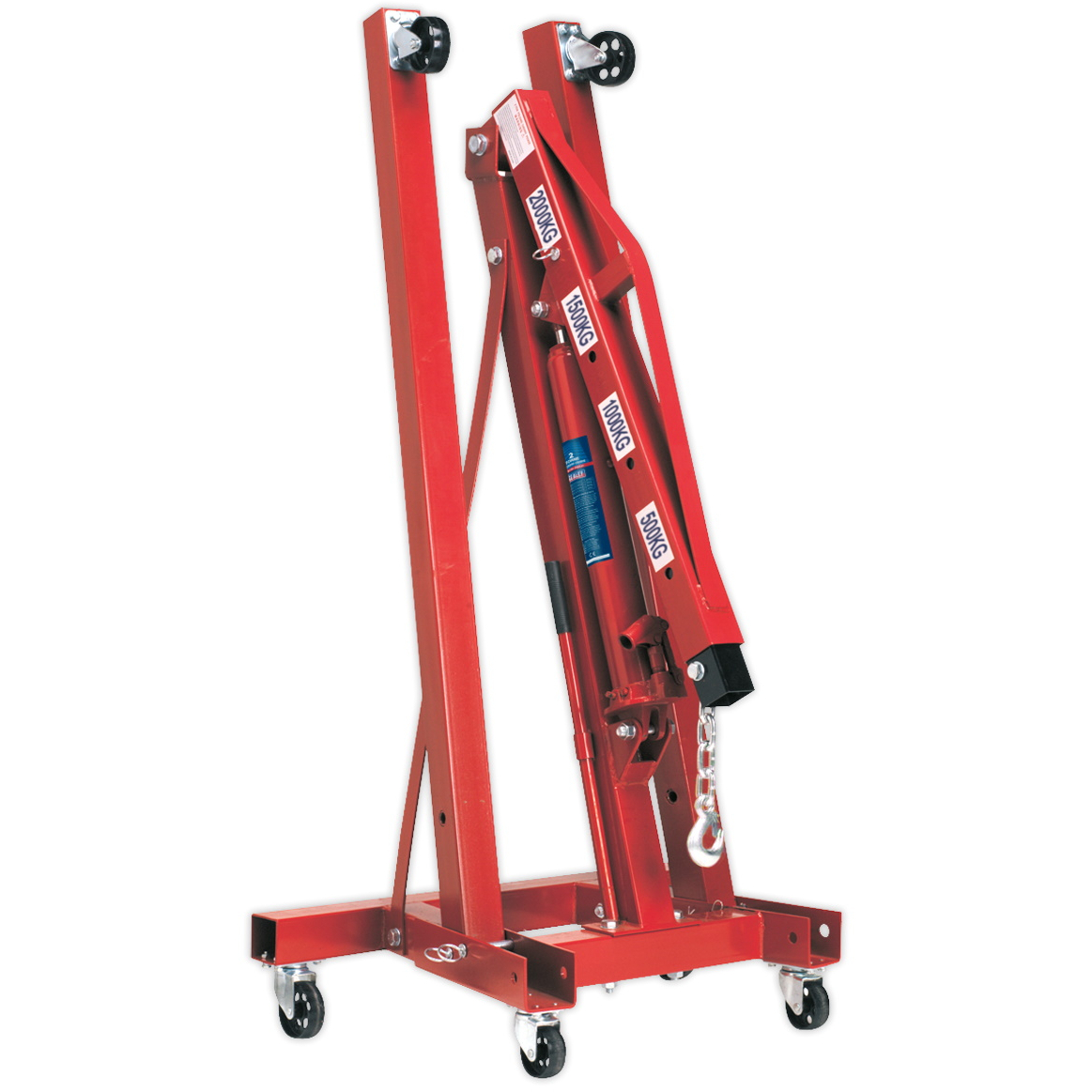

Folds for easy storage, freeing valuable workshop space when not in use.
Bottle jack type hydraulic unit for economy.
Tested to 25% overload.
Some self-assembly required.- Features
Features
Height Jib Down:
1440mm Height Legs Folded: 1540mm Height of Frame: 195mm Length Legs Extended: n/a Length of Jib Position 1: 930mm Length of Jib Position 2: 1110mm Length of Jib Position 3: 1200mm Length of Jib Position 4: 1460mm Length of Jib Position 5: n/a Length: 1750mm Lifting Capacity in Position 1: 2000kg Lifting Capacity in Position 2: 1500kg Lifting Capacity in Position 3: 1000kg Lifting Capacity in Position 4: 500kg Lifting Capacity in Position 5: n/a Max. Lift Ht at Jib Position 1: 2060mm Max. Lift Ht at Jib Position 2: 2190mm Max. Lift Ht at Jib Position 3: 2330mm Max. Lift Ht at Jib Position 4: 2490mm Max. Lift Ht at Jib Position 5: n/a Rear Width: 850mm Width Front Frame: 1055mm Width Inside Front Frame: 915mm
