- Description
-
Details

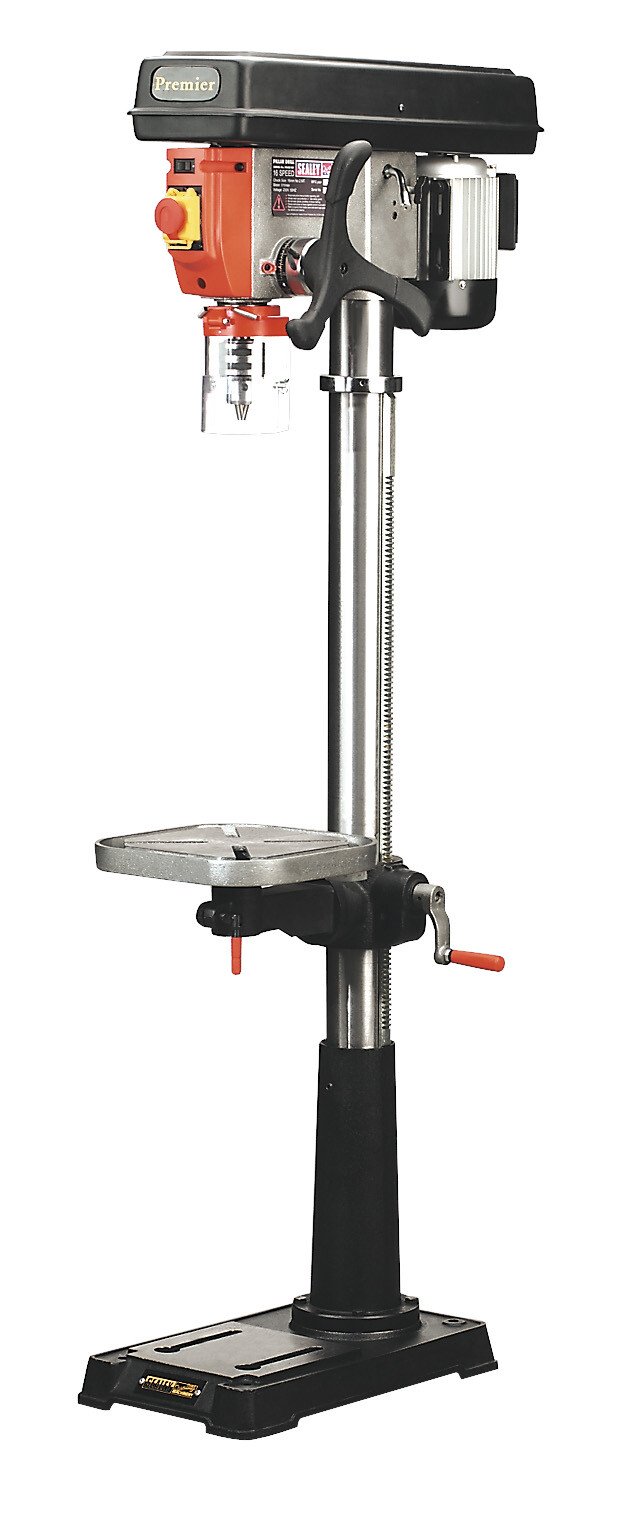

Floor pillar drill for the professional workshop. Fitted with an integral work light which illuminates the drilling table giving operator a clear view of the drilling process. Supplied with flip-up chuck guard. Large sized square table fitted with precision rack and pinion height adjustment.
Drilling Capacity (Chuck Size) 16mm, Spindle Nose Taper MT2, Swing 460mm, Distance Centre Chuck to Upright Face 190mm, Spindle Travel 80mm, No. of Speeds 16, Speed Range 190-3000rpm, Max. Distance Spindle to Table 725mm, Max. Distance Spindle to Base 1225mm, Working Table Surface Size 290 x 290mm, Working Base Surface Size 205 x 200mm, Overall Base Size 495 x 290mm, Column Diameter 80mm, Collar Diameter 60mm, Overall Height 1610mm, Nominal Motor Power 370W - 230V, Maximum Motor Power 550W - 230V, Weight 68kg.
