Details

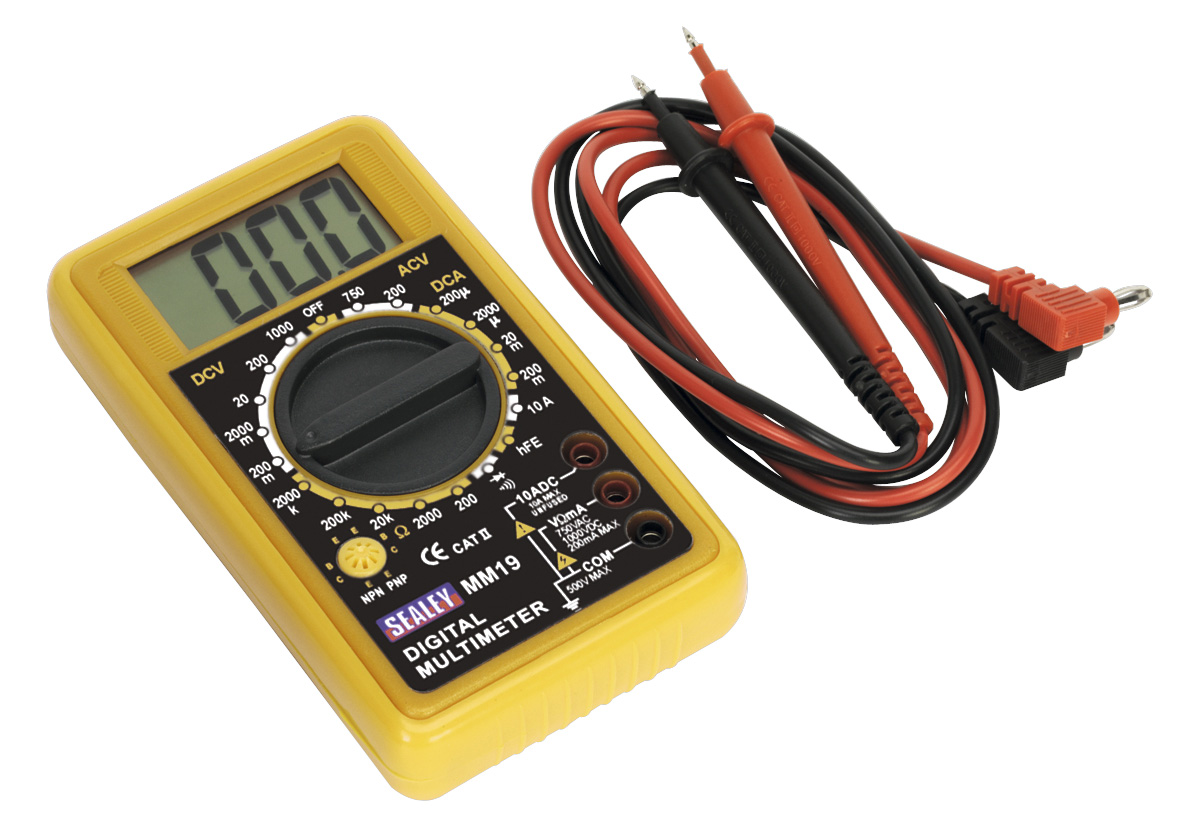

High quality general purpose multimeter with a large (25mm), clear and easy-to-read LCD display.
Supplied with full set of leads and probes.
Measures: AC and DC Voltage, DC Current, Resistance, Diode/Transistor Verification Model.
Voltage DC: 200mV (±0.25%), 2V, 20V, 200V (±0.5%)
Voltage AC: 200V, 750V (±1.2%)
Current DC: 200µA, 2000µA, 20mA (±1%), 200mA (±1.2%), 10A (±2%)
Resistance: 200Ω, 2kΩ, 20kΩ, 200kΩ (±0.8%), 2MΩ (±1%)
Continuity: n/a
Diode Test: Forward voltage drop
Transistor Test: hFE @ 10µA & 2.8Vce
