- Description
-
Details
Safety devices fitted include a no-volt release switch and pulley cover cut-out microswitch.

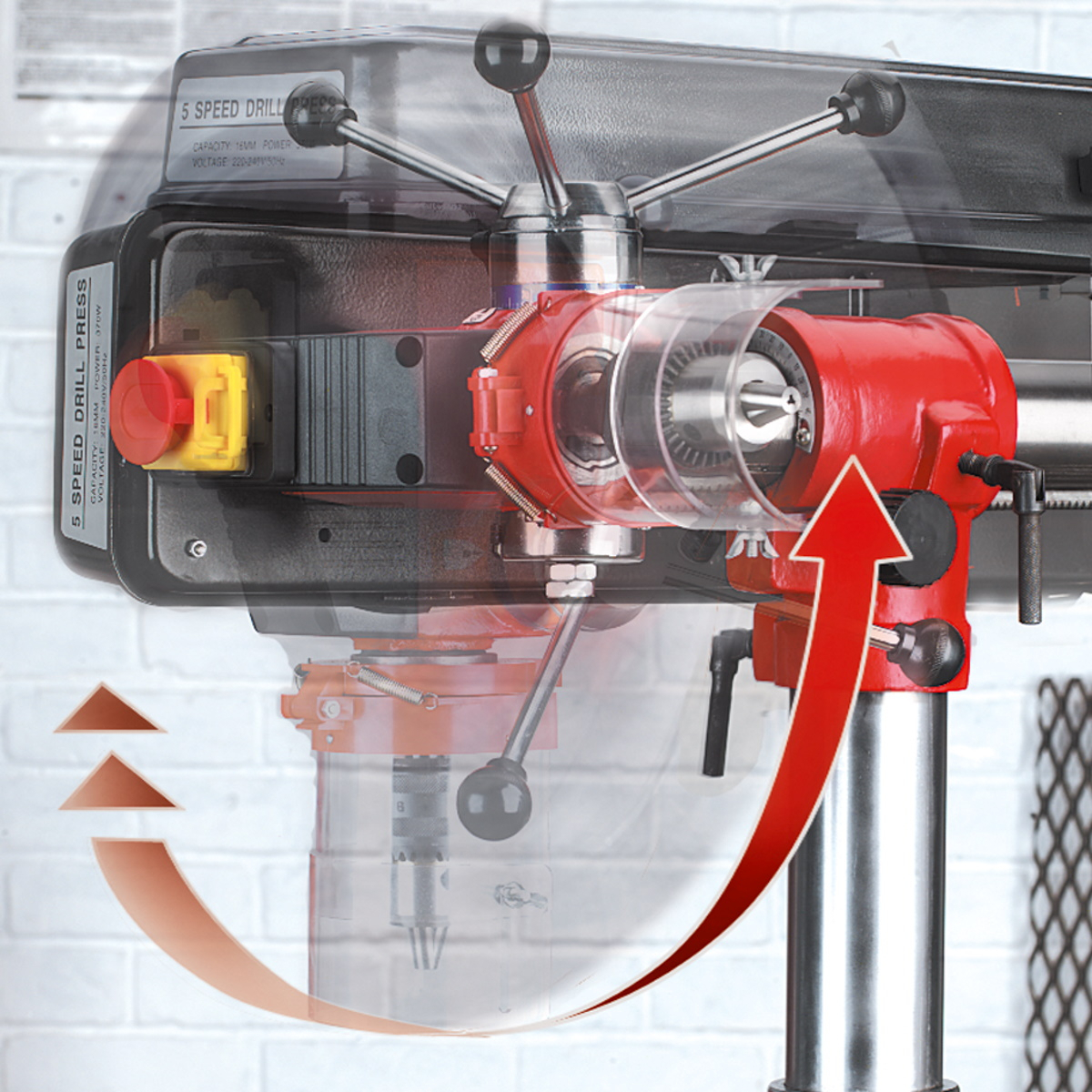

Radial feature allows off-table drilling and angle drilling.
Features a maximum throat depth of 420mm.

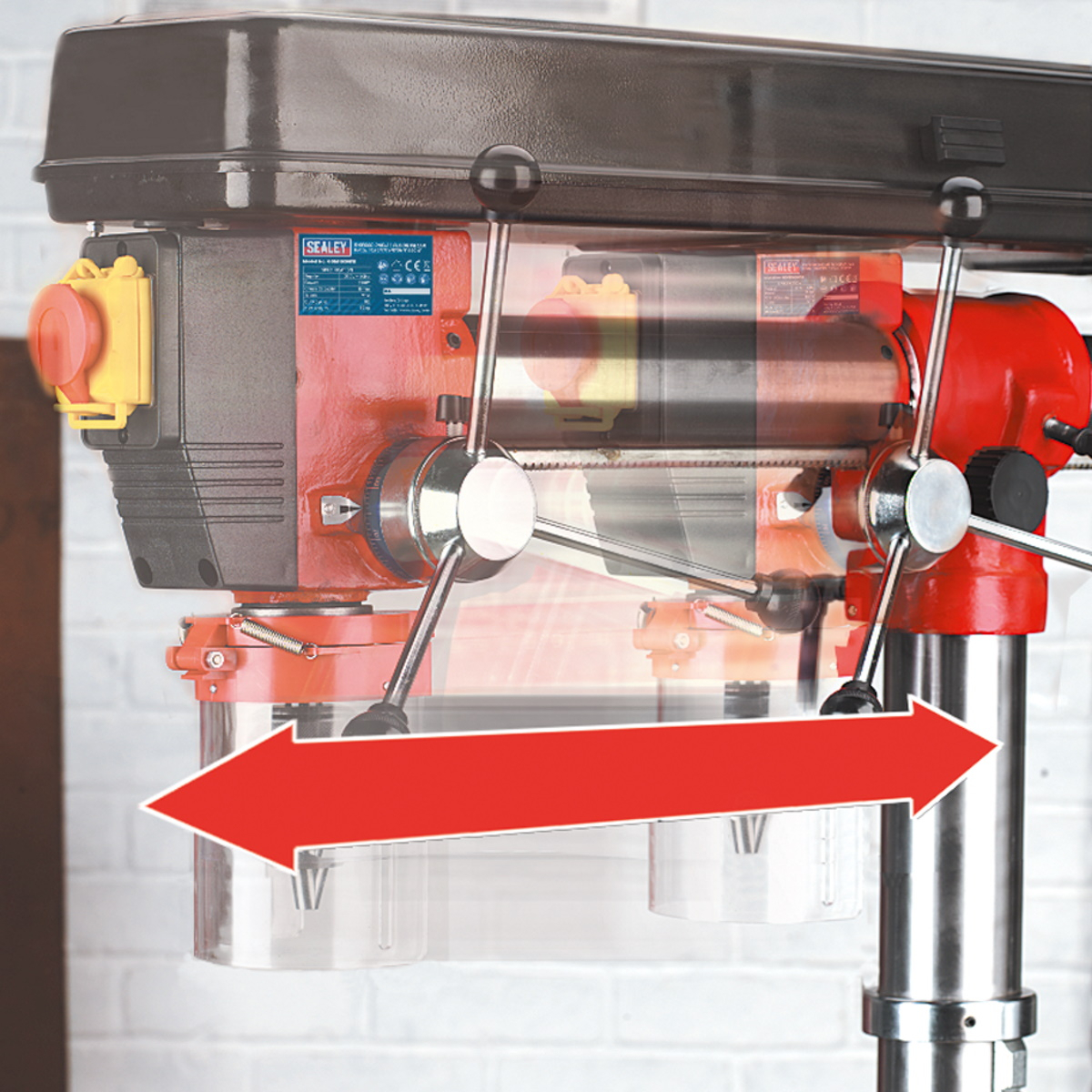

Radial arm controlled by rack and pinion assembly allowing fine positioning of drill bit.
Also available as floor standing type - GDM1630FR.- Features
Features
Base Size:
345 x 215mm Collar Diameter: Ø60mm Column Diameter: Ø60mm Drilling Capacity (Chuck Size): 16mm Maximum Distance Spindle to Base: 470mm Maximum Distance Spindle to Table: 300mm Motor Power (Start): 350W(550W) Nett Weight: 43kg Number of Speeds: 5 Optional Accessories: GDMX/KC - Keyless Pillar Drill Chuck 16mm Overall Height: 820mm Radial Arm Travel: 285mm Speed Range: 500-2450rpm Spindle Centre to Column: 420mm Spindle Nose Taper: MT2 Spindle Travel: 80mm Supply: 230V Swing: 840mm Working Base Surface Size: 160 x 180mm Working Table Surface Size: Ø310mm
