Details

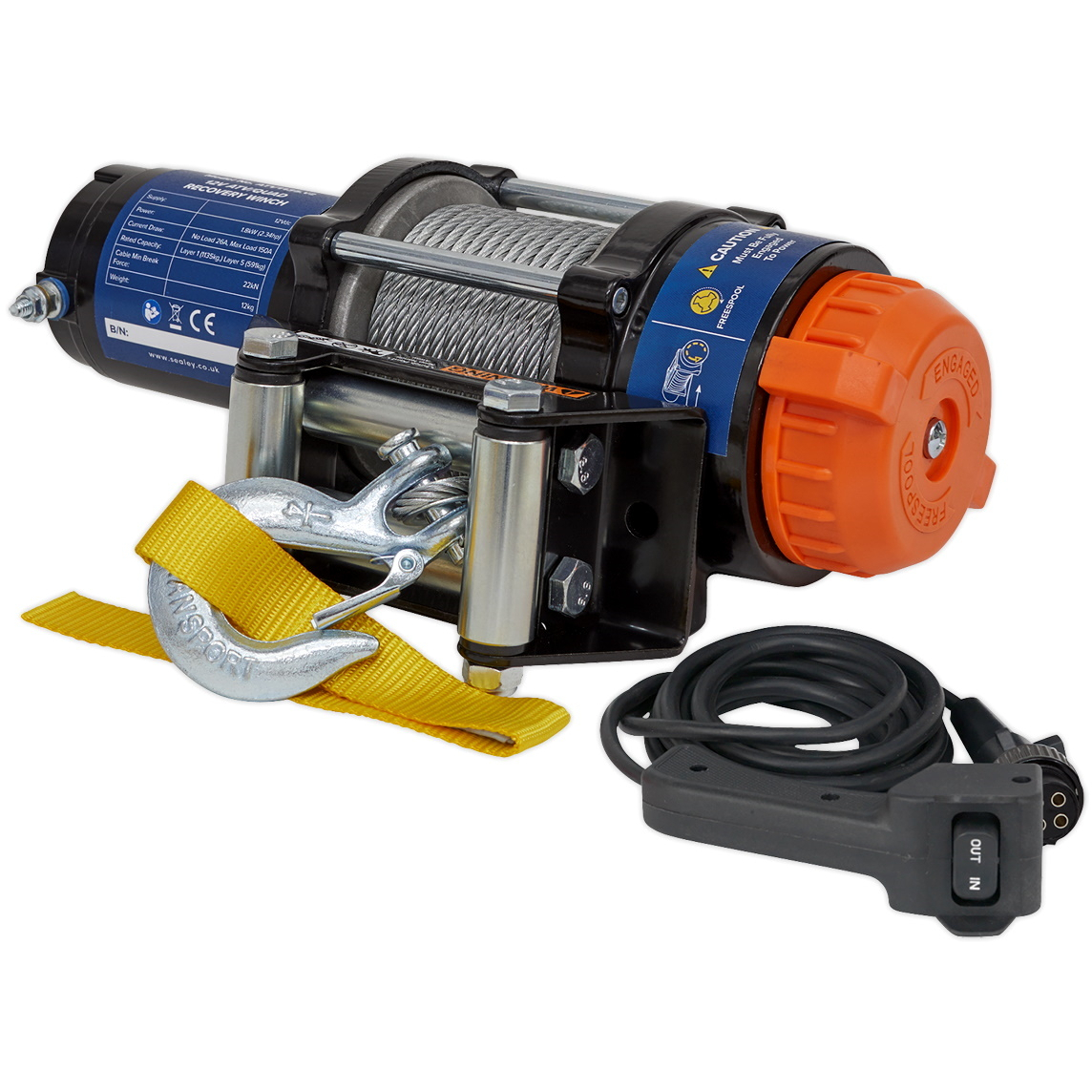

Designed and built with the toughest jobs in mind.
Check out the features:
- Heavy-duty all-weather housing.
- High power 0.8kW 12V DC motor with 1.5hp permanent magnet gives first class pulling power.
- 3-Stage planetary gears using oversized components for greater torque plus mechanical and dynamic braking.
- Drum clutch with ergonomic hand control allows free spooling of cable.
- High quality wire rope plus a 4-way roller fairlead with mounting bracket for smooth and even distribution of cable onto drum.

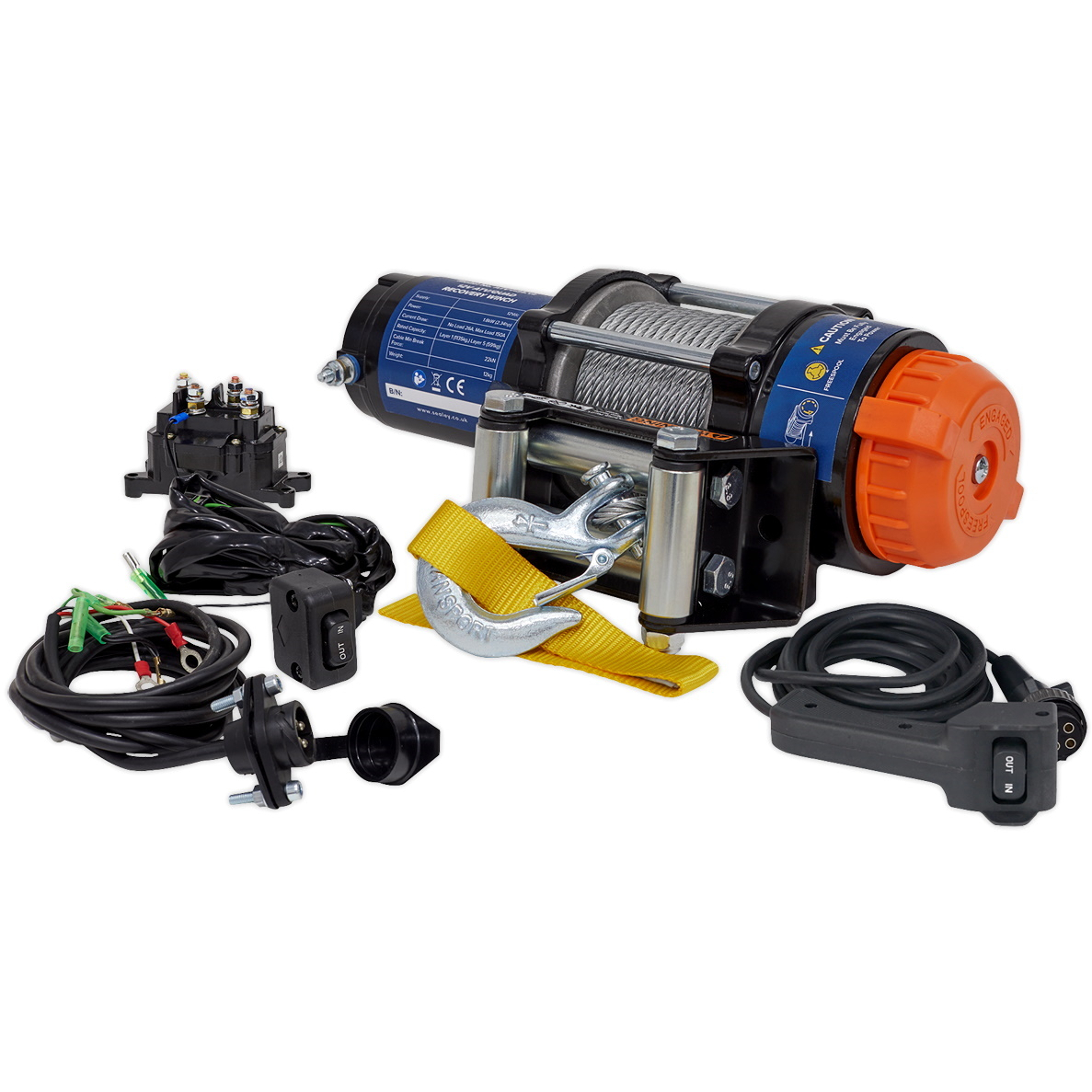

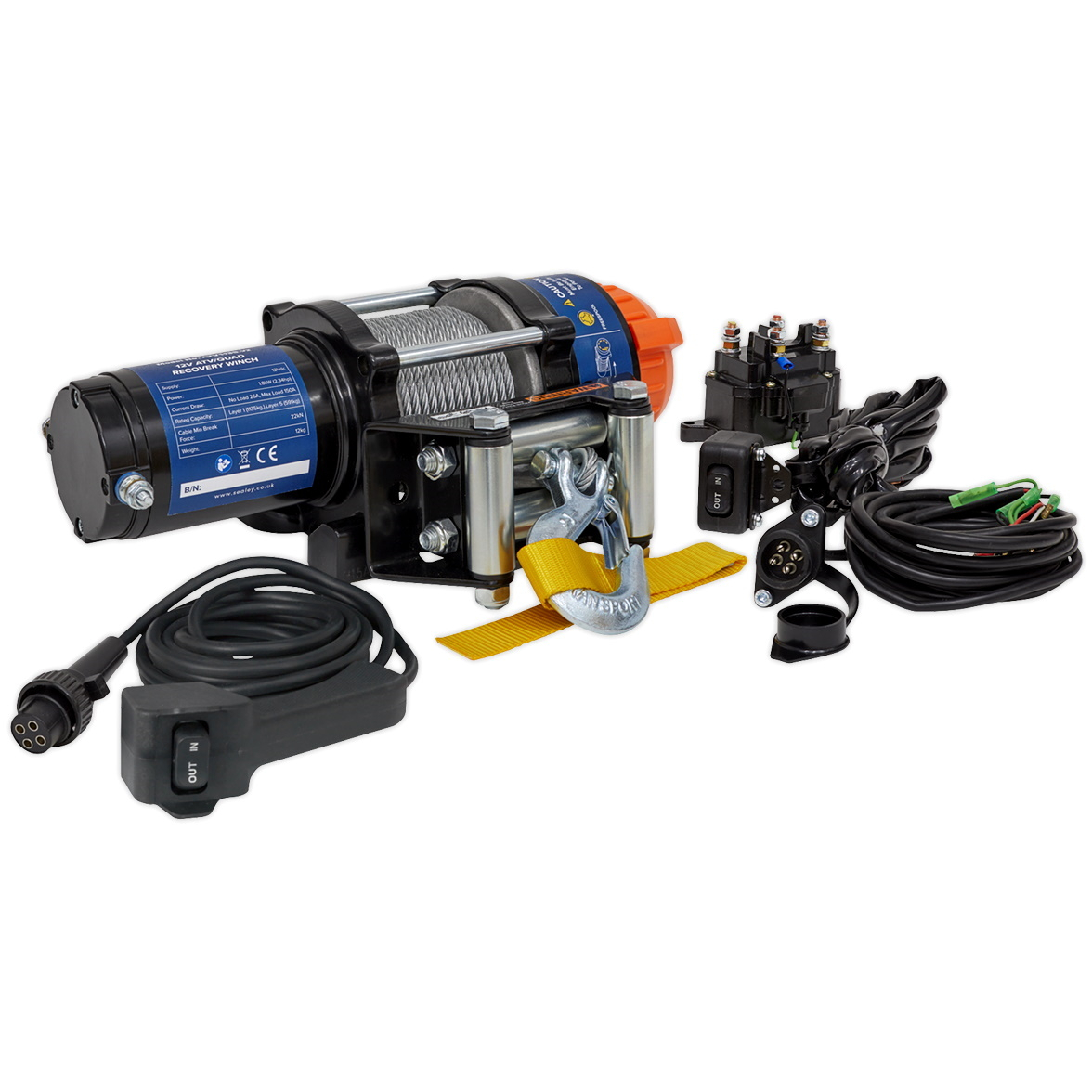

- Plug-in hand held controller, handle bar switch and mounting hardware are included as standard.
IP67 Ingress Protection rating.- Features
Features
Consumable Parts:
ATV1135.WR - Wire Rope (Ø4.8mm x 15.2m) for ATV1135, ATV1135.DR - Dyneema Rope (Ø4.9mm x 15.2m) for ATV1135 Current Draw: No-Load - 26A, Maximum Load - 150A Gear Ratio: 180: 1 Line Pull*: 1135kg(2500lb) Line Speed*: No-Load - 4.8m/min, Maximum Load - 1.6m/min Motor Power: 1.8kW(2.34hp) Note: *Performance quoted at first layer of cable on drum Supply: 12V Wire Rope Diameter: 4.8mm Wire Rope Length: 14m
