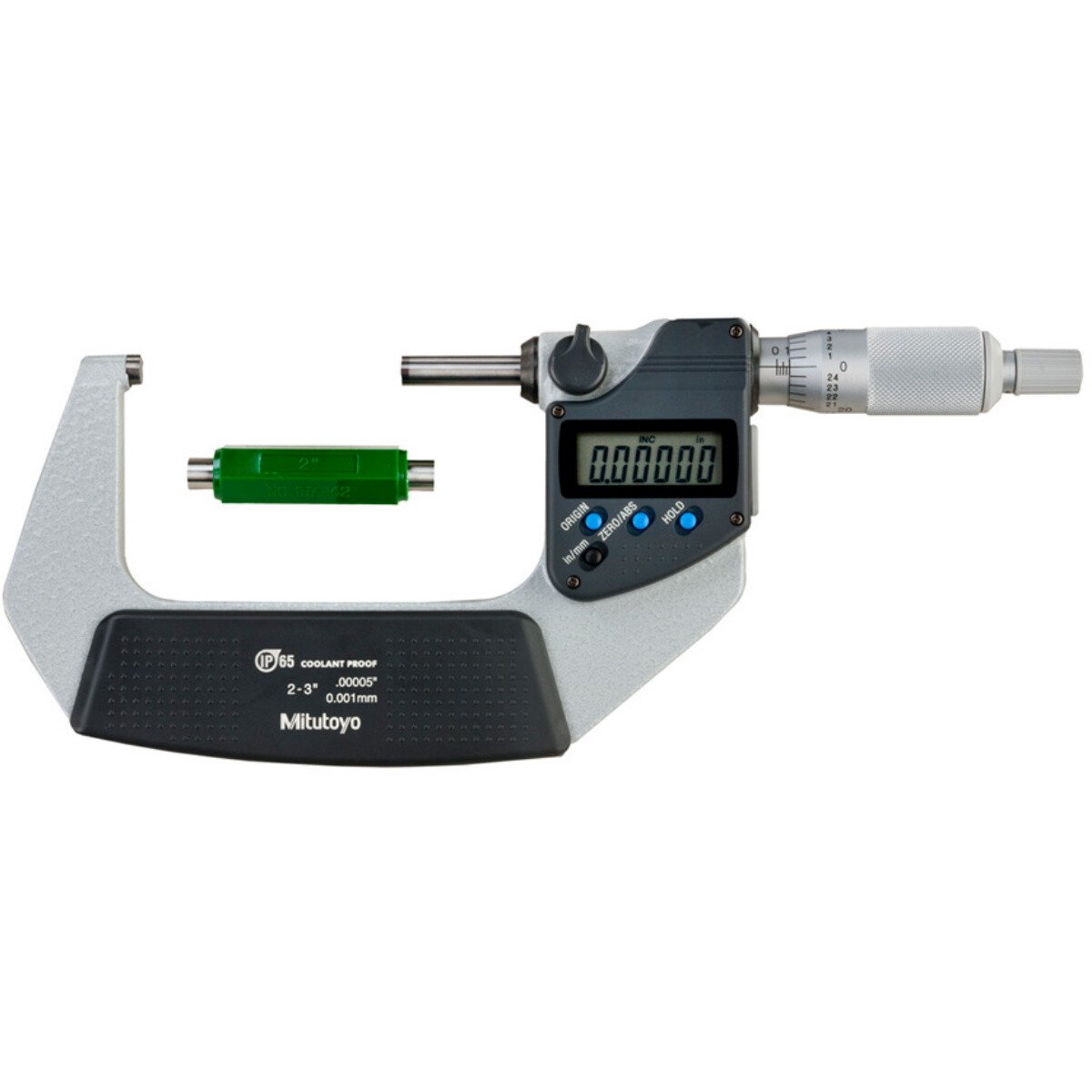

Mitutoyo 293-332-30 Digimatic Coolant Proof Micrometer 50-75mm / 2-3"

More Views

Mitutoyo 293-332-30 Digimatic Coolant Proof Micrometer 50-75mm / 2-3"
Ex. VAT £316.80 Inc. VAT £380.16

Usually ships within 10 working days with Free Shipping

Description

Details

A Mitutoyo waterproof digital micrometer suitable for use in the presence of coolant or cutting oil.
The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions.
A ratchet stop guarantees repeatable measurement.
Digimatic data output.
IP65 protection level, enabling use in environments exposed to cutting oil, etc. Anti-corrosion treatment is required after use.
Measurement data output function is available with a water-resistant connection cable.
Oil-resistant materials are used in all plastic components.
±1μm instrumental error.
Auto power ON/OFF function.

Features

Features

Range:50-75mm / 2-3"
Actual Range:50.8-76.2mm / 2-3"
Resolution:0.001mm / .00005"
Accuracy:±1µm / ±.00005"
Data Output:Yes
Display:LCD
Flatness:0.3µm / .000012"
Measuring Faces:Carbide
Parallelism:2µm / .00008"
Protection:IP65
Battery:SR44
Battery LifeApprox.:2.4 years under normal use
Functions:Origin-set, Zero-set, Preset, Inch/mm, Function Lock, Data Hold, Automatic Power On/Off, Data Output, Low Voltage alarm, Counting Value Composition Error alarm.
