- Description
-
Details
The Makita DWD181ZJ is supplied Body Only (without batteries or charger)

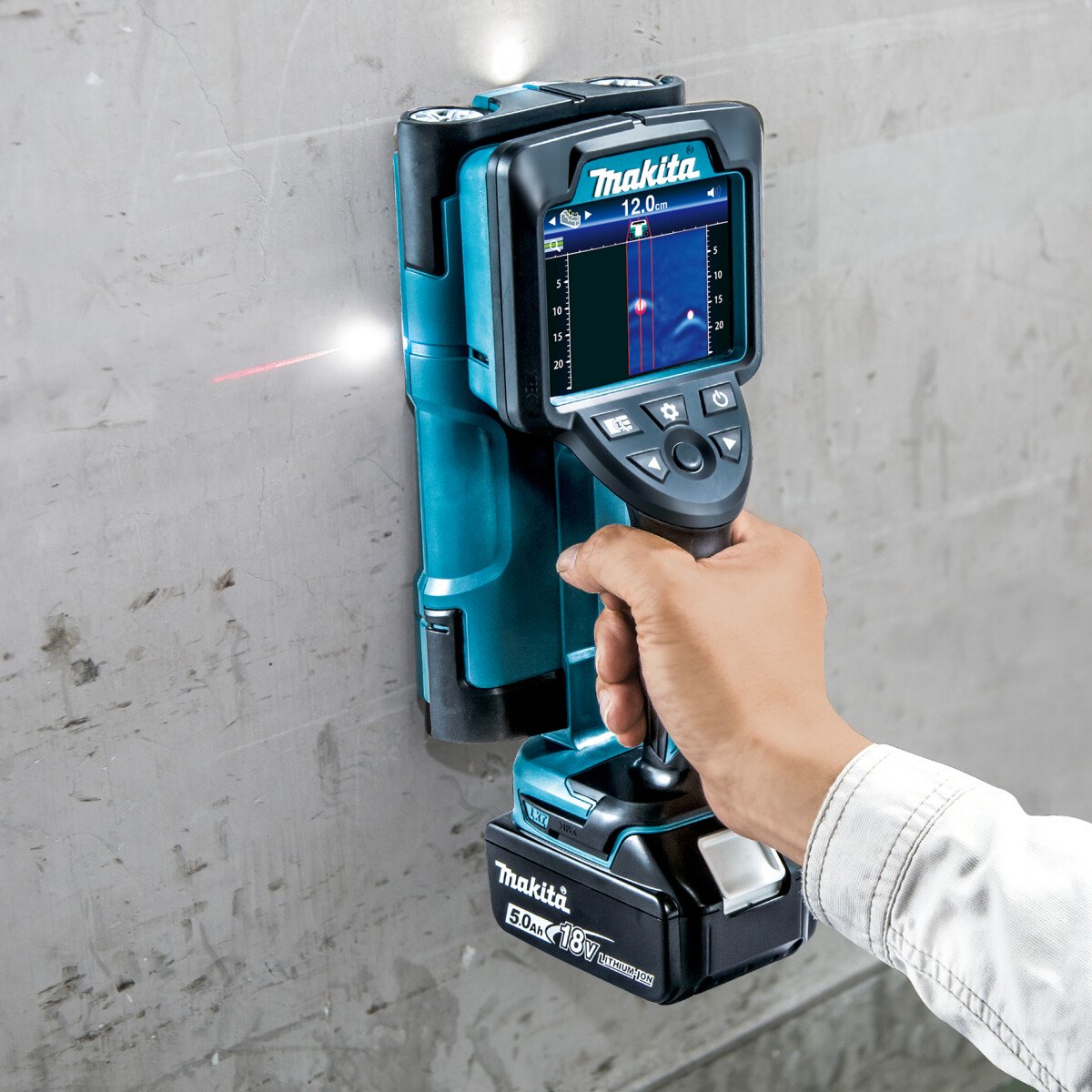

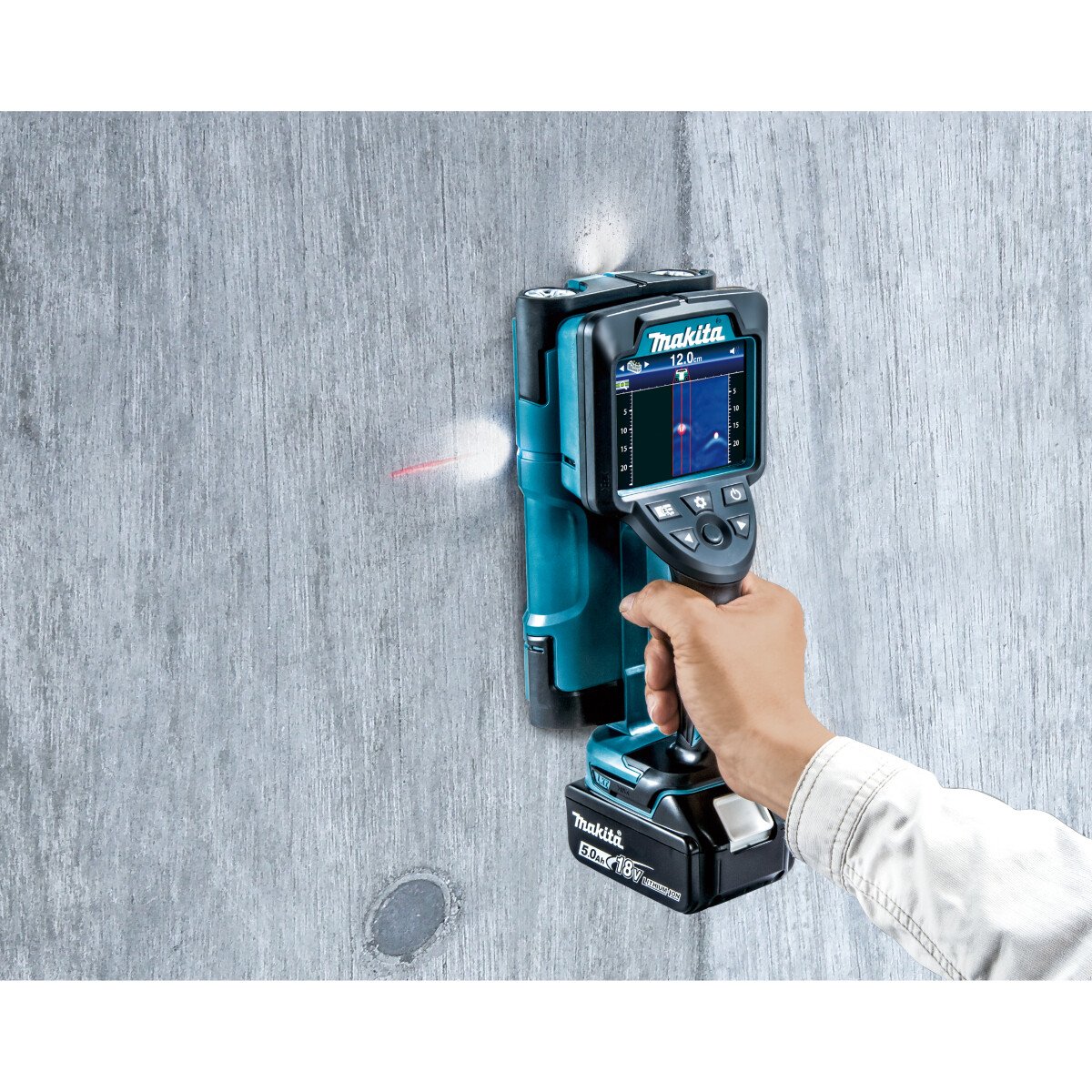

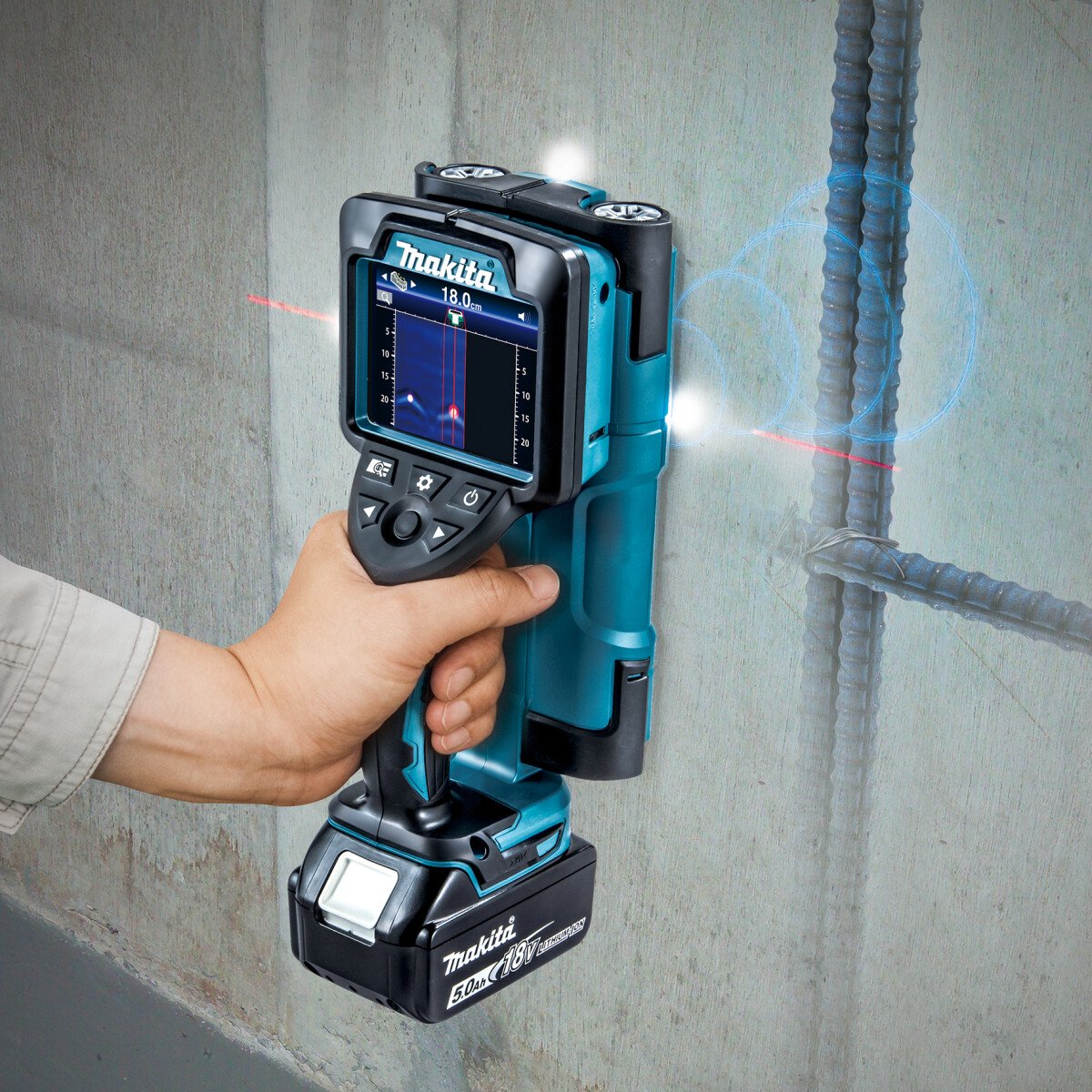

The DWD181 is a rechargeable wall scanner powered by 14.4V/ 18V LXT Li-Ion battery, and it can detect objects embedded in concrete frame like metal, live electrical cables, plastic pipes and more.
LED job light
High detection accuracy
Full-colour display: indicates object position, depth and more on a large 4.1 inch screen
Indication of detection status: The presence of object is indicated visually and acoustically

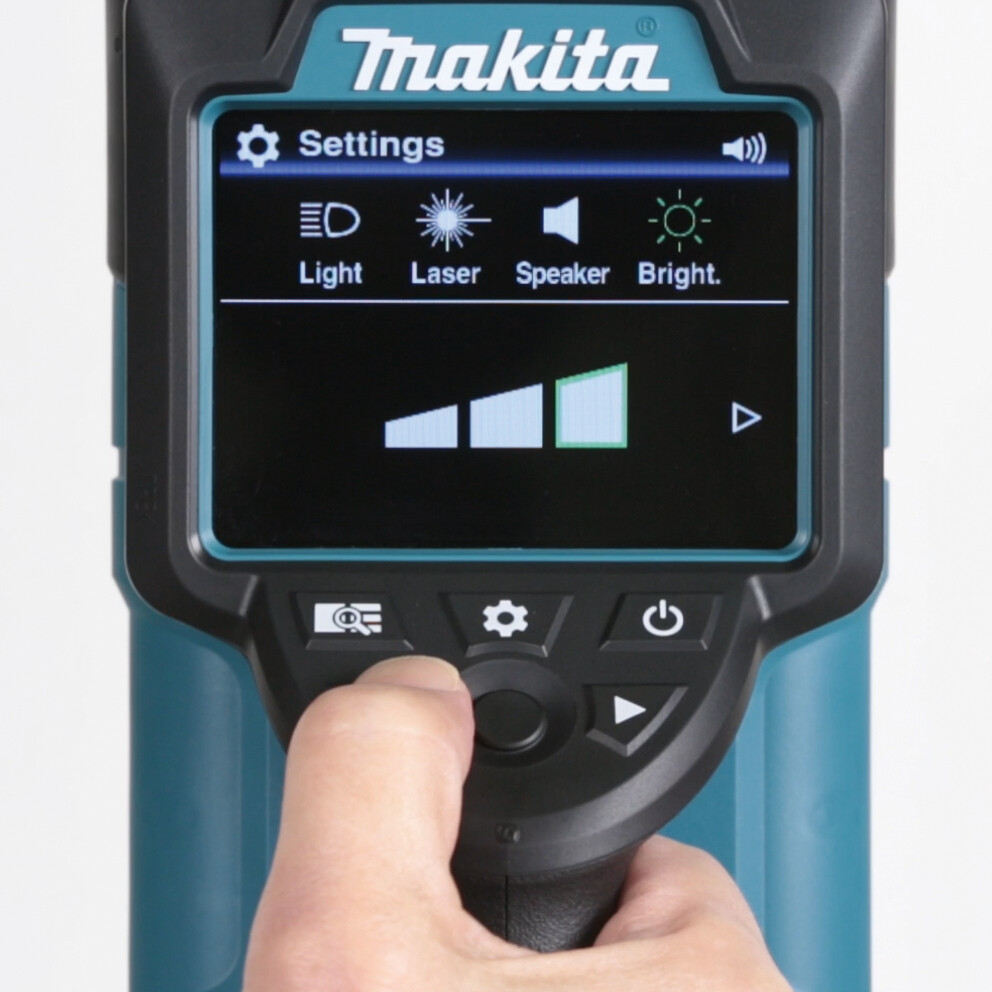

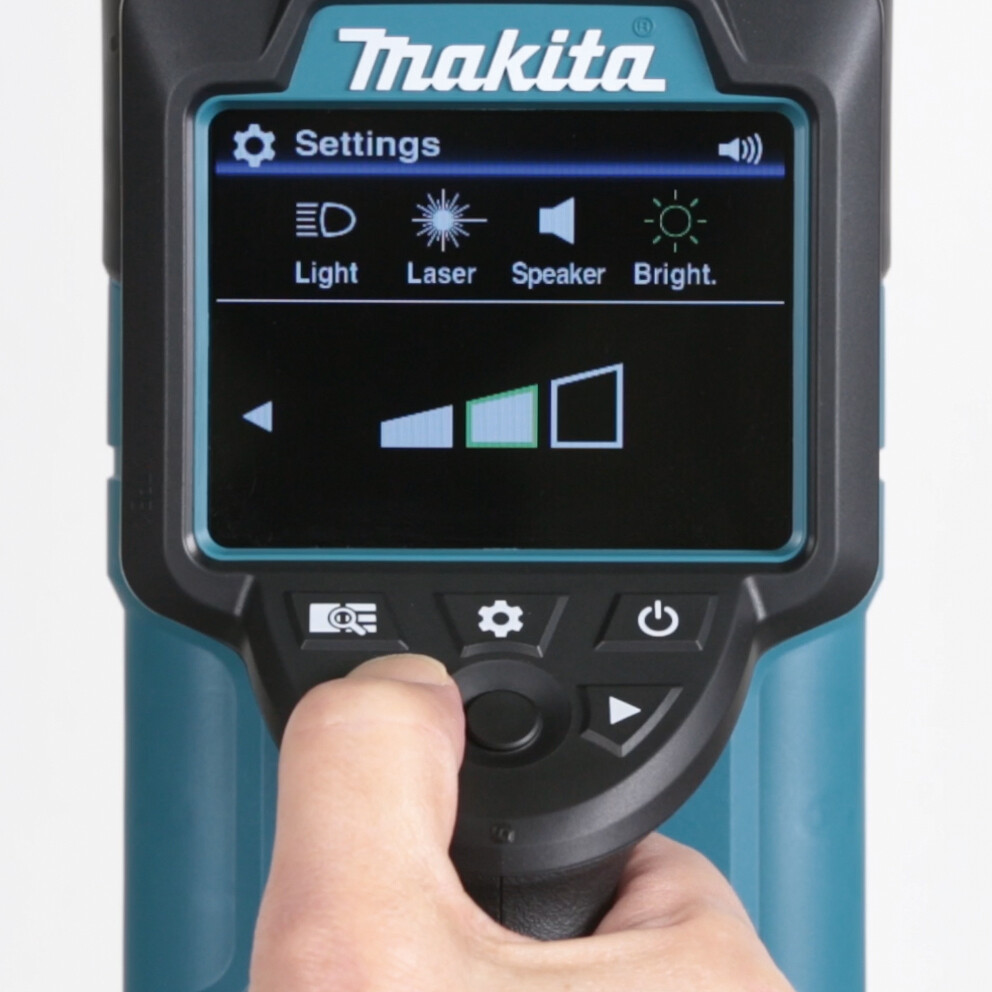

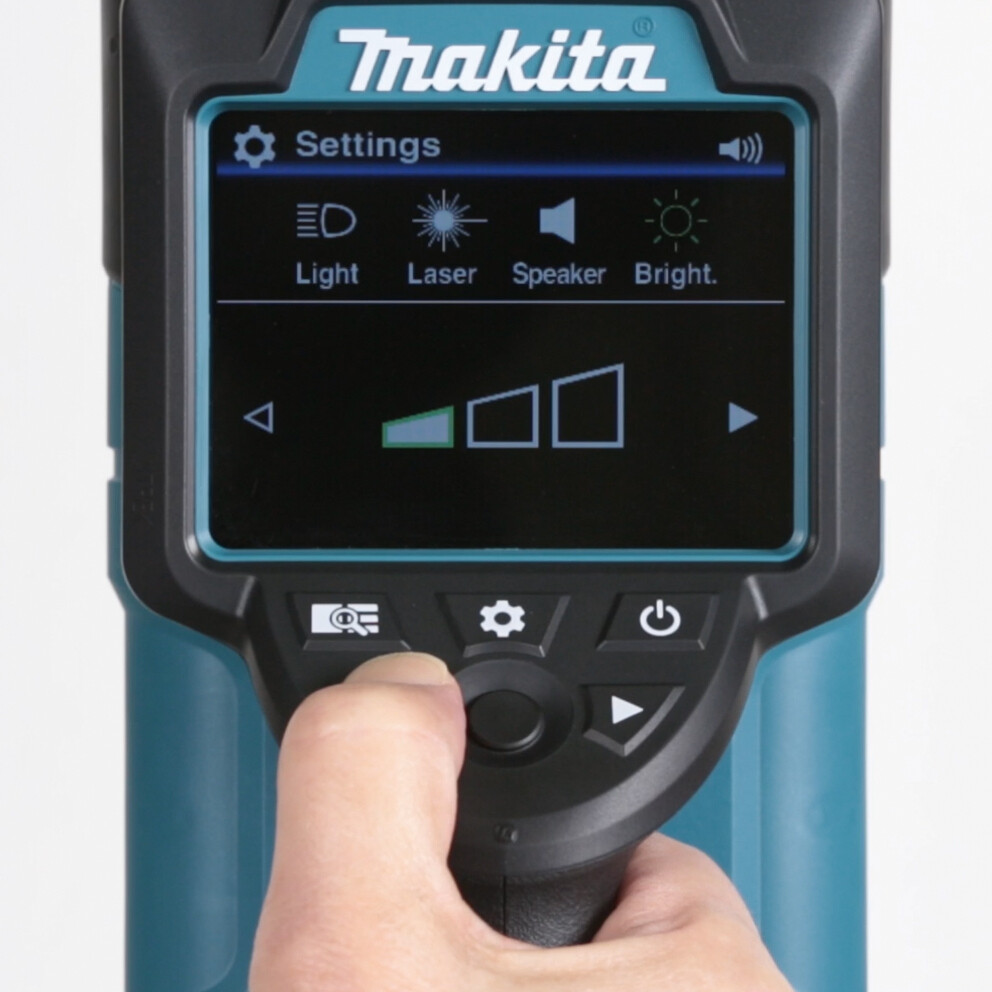

Control panel with power button, detection mode change and setting button
Powered by either 14.4 or 18V LXT Li-Ion battery
Multi-detection mode: up to 3 detection results can be displayed on a split screen at a time
Laser guide: emits laser lines to indicate the vertical centre of the sensor and the axis of the scan direction
Scene mode selection ( Dry concrete / Wet concrete / Partition mode / Radar view mode)
IP54 Dust and Drip proof designSupplied With:
- Makpac stacking case
- Features
Features
Battery type: Li-ion Battery power: 14.4 / 18v Max detection depth (Metal in concrete) : 180mm Max detection depth (Plastic pipe in concrete) : 120mm Max detection depth (Wood stud behind drywall: 25mm Detection accuracy of object centre position: +/- 5mm Detection accuracy of object depth: +/- 5mm Detectable minimum distance between two adjacent objects: 40mm Max runtime (6ah Battery): 28hrs Net weight: 1Kg
