- Description
-
Details
Return fuel volume tester for common rail diesel injectors and conventional injectors.
For up to 10 cylinders.

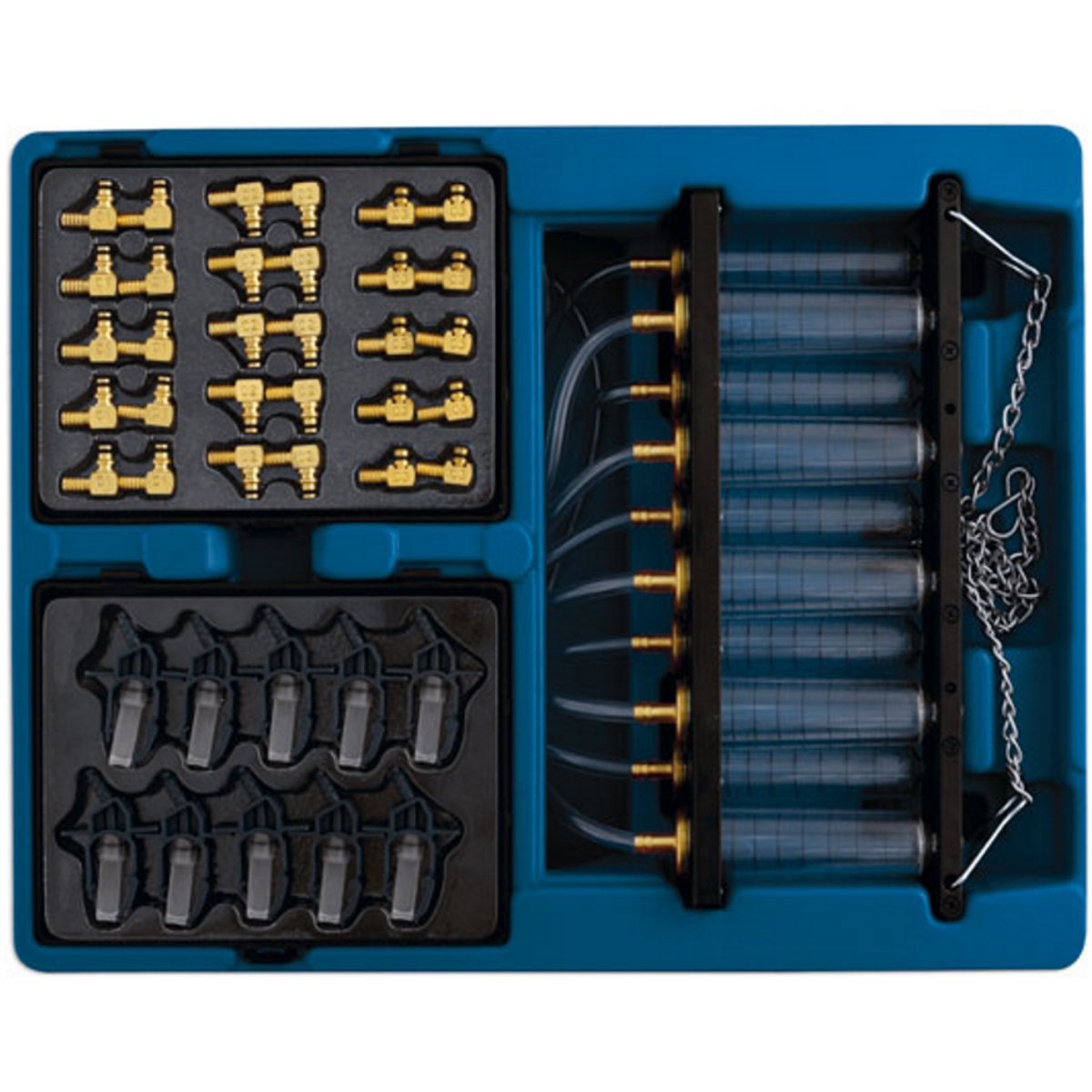

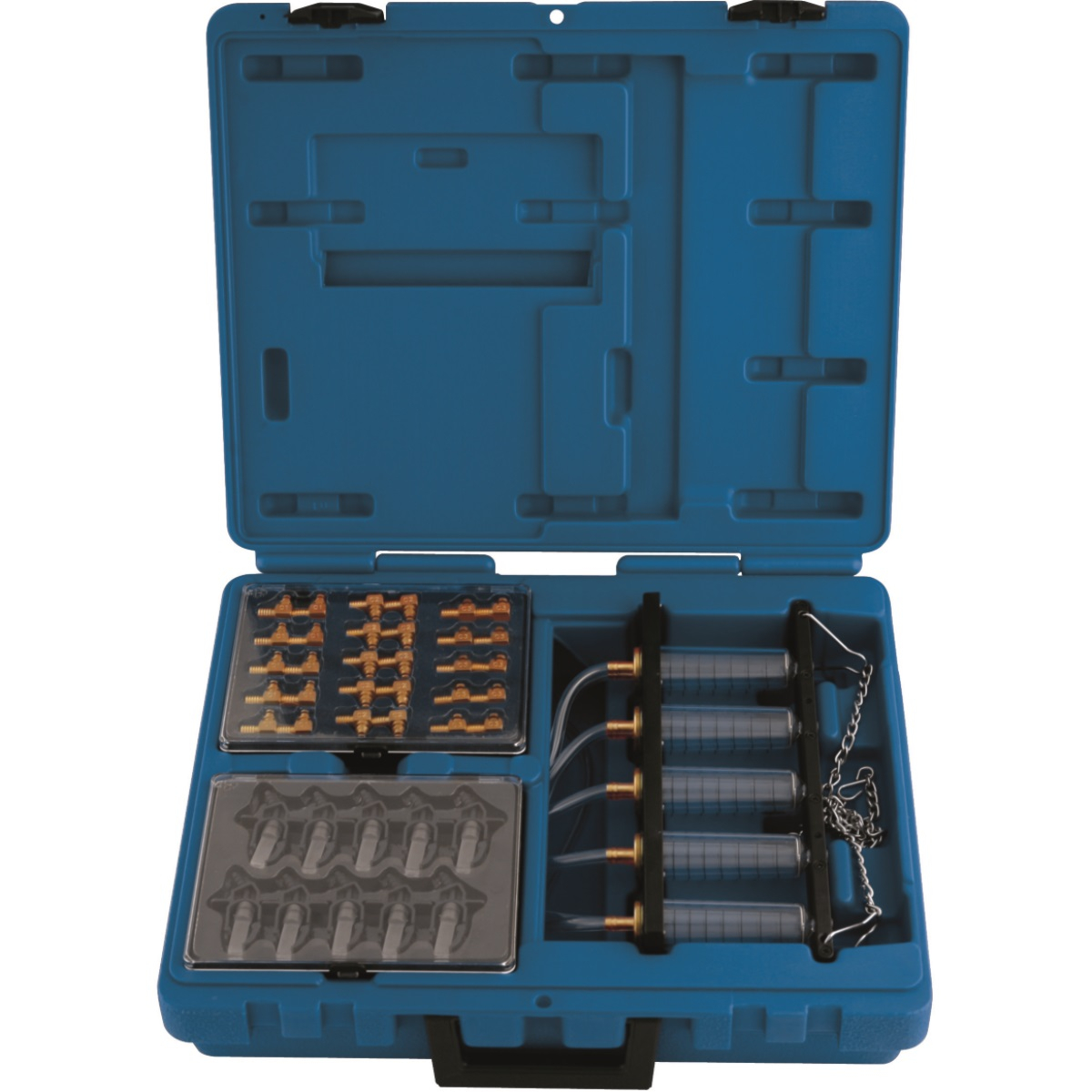

40 (10 of eack) Adaptors for Bosch CRD | Siemens CRD | Denso CRD | Delphi CRD.
10 graduated fuel chambers.
Easy to read fuel chambers.
Essential tool.
Designed for use on the injector return side of a common rail diesel system.
Measures the return fuel flow on engines up to ten cylinders, very useful on certain commercial and marine applications.
Assists with the diagnosis of poor (or no) engine starting, rough running, overall lack of power and excessive smoke.
A faulty or partially blocked injector will send excessive fuel back to the fuel tank (also referred to as ‘back leakage’).

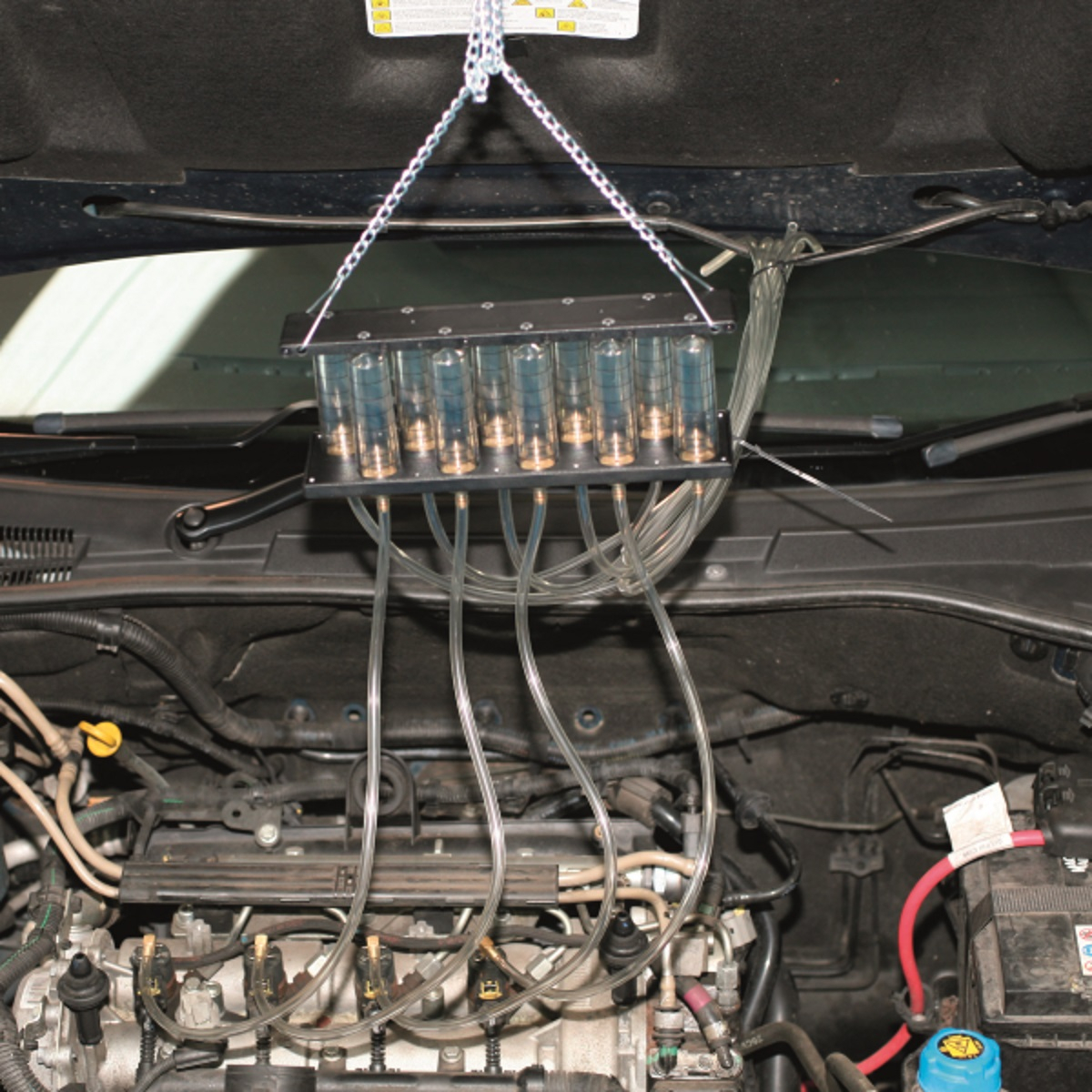

Running the engine for just a few seconds with the injector return flow tester fitted will show up a faulty injector by reading a higher level of fuel in the graduated fuel chambers.
Very easy to fit, just pop off the return pipe connectors on the injectors and substitute with the fuel lines from the tester.
