- Description
-
Details
The fischer pipe clamp FRS Plus is a two-screw pipe clamp made from zinc-plated steel in material quality DD11 with an M8/M10 combination connecting thread and a sound protection certificate. The plus rapid locking mechanism allows for quick and easy installation. The two-screw version enables optimised adjustment in line with the outer diameter of the pipe. Together with the combination connecting thread, this increases flexibility. This enables pipelines with an outer diameter of 12 to 119 mm to be securely fixed with a threaded rod or stud screw indoors. With a chlorine-free and silicone-free sound insulation insert, the pipe clamp meets the requirements of DIN 4109.
The two-screw pipe clamp with rapid-locking mechanism.
- The rapid-locking mechanism allows for fast, time-saving installation of pipelines
- The two screws allow for ideal adaptation to suit the outer pipe diameter
- The safety mechanism and fixed sound insulation insert guarantee safe pipe adjustment
- Connecting nut with combination thread M8 / M10 for holding threaded rods or hanger bolts
- Pipe clamp screws with loss protection

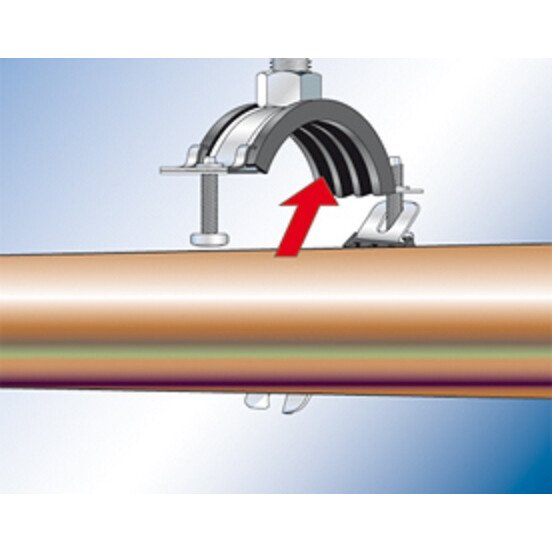

- The rapid-locking mechanism allows for fast and time-saving installation
- The safety latch fastening guarantees pipe installation without the clamp springing open
- The tight fit of the sound insulation insert prevents it from falling out when aligning the pipe
- The combination connecting nut with M8/M10 thread enables optimised mounting choices

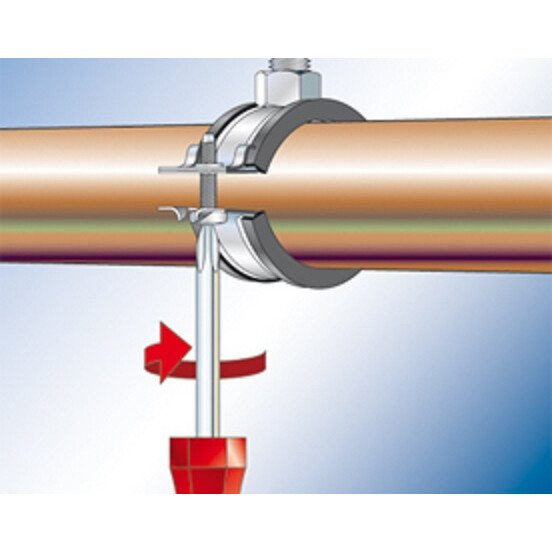

- The two screws allow an easy adjustment to suit the outer pipe diameter
- The screw's safety feature ensures trouble-free installation.
Approval Documents for Downloading
https://content.fischer.de/cbfiles/fischer/zulassungen/zd_dop_samontec_f_%23sen_%23aip_%23v1.pdf
https://content.fischer.de/cbfiles/fischer/zulassungen/zd_p_01_frs-plus_f_%23sen_%23aip_%23v1.pdf
- Features
Features
Thread A M 8 / M 10 Size 2 1/2" [inch] Clamping range D 72 - 80 [mm] Width B B 125 [mm] Height H H 107 [mm] Width x thickness clamp band b x s 20 x 2.0 [mm] Height Z Z 61 [mm] Locking screw M 6 Max. recom. static load (centr. tension) Nrecom. 1.80 [kN] Amount 25 Unit(s) Properties Material: steel DC01 (material no. 1.0330) acc. to DIN EN 10130 Zinc plating: electro zinc-plated, 5 - 9 µm Connecting nut: resistance welded, M8 / M10, SW 13 Locking screw: flat head screw with combination recessed head Material sound insulation insert: EPDM; chlorine-free; silicone-free Sound insulation: for DIN 4109 Temperature range: -40 °C to +100 °C Hardness: 55 ± 5° Shore A Fire behaviour: DIN 4102: Class B2
