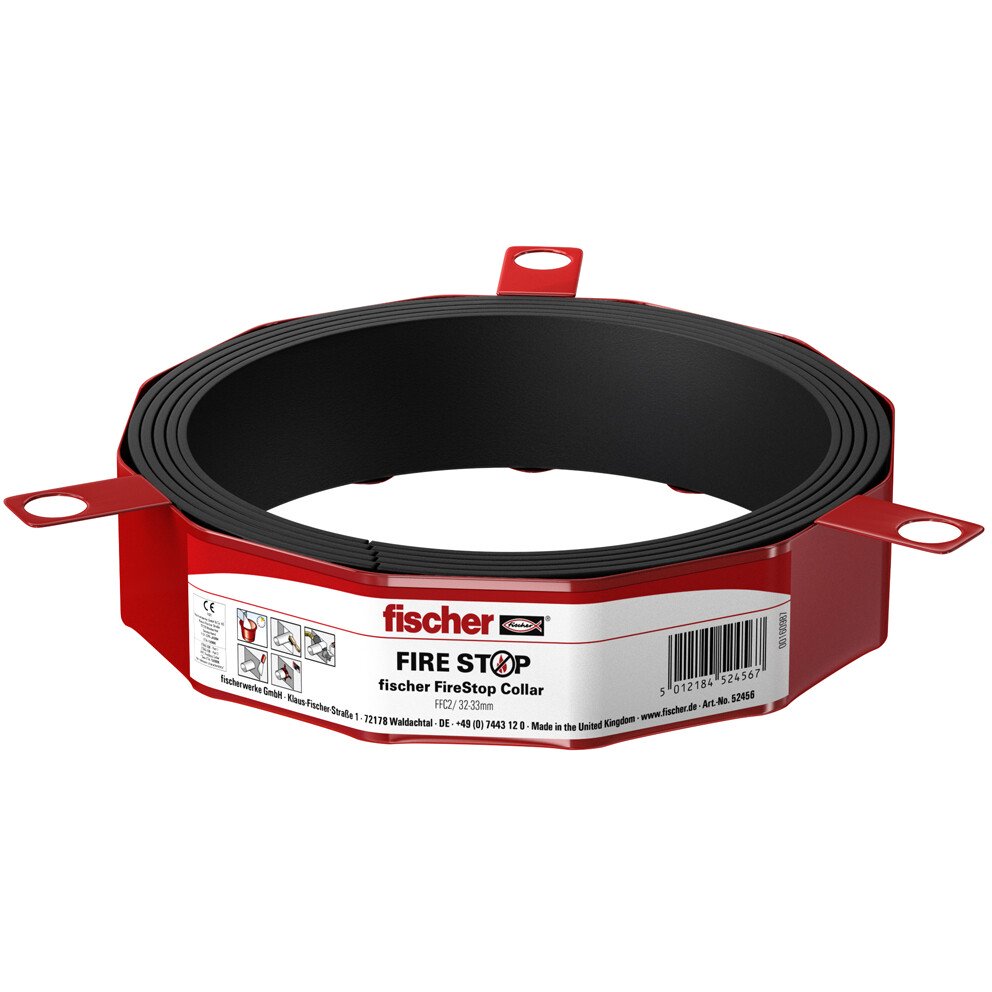

Fischer Firestop 52456 FFC 2/30-32 30-32mm Red/Black Fire Collar

Made in the UK

• Fischer Fire Collars - FFC 2 is a powder coated cylindrical steel sleeve which contains a heat reactive graphite based intumescent material that expands during fire
• The fischer FFC 2 can be used on its own or in mixed penetration applications in conjunction with the FCPS fischer Coated Panel System
• Annular gaps up to 10 mm can easily be backfilled with fischer FiAM Intumescent Acoustic Mastic

Top Features

• Easy retrofit at any time
• ETA approved.
• Pre-fixed attachment lugs
• Tested in U/U configurations.

Advantages

• Easy retrofit at any time
• Water resistant
• No minimum annular service required
• Pre-fixed attachment lugs
• Fold back tag for secure fixture around pipe

Functioning

• FFC is a powder coated cylindrical steel sleeve, which contains a heat reactive graphite-based intumescent material that expands during fire

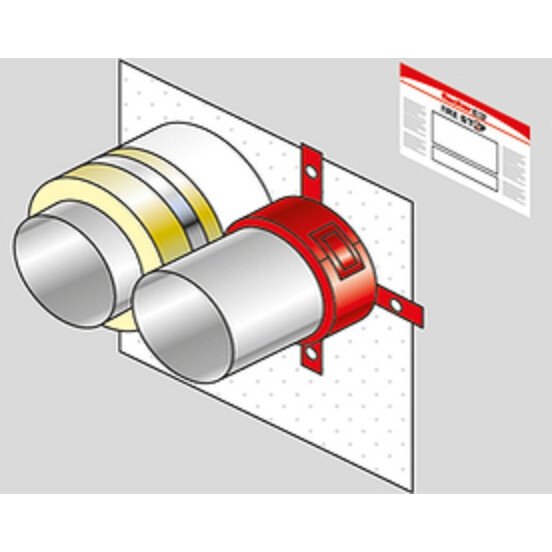

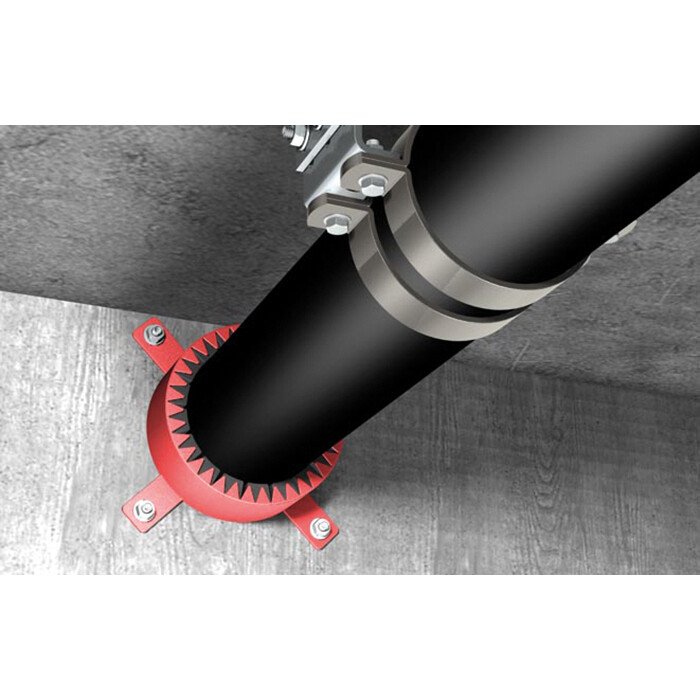

• Designed to be securely fitted around the pipe and held in position with a retaining bolt
• Any gaps up to 10 mm around FFC should be backfilled with FiAM or larger annular space should be closed with FCPS or FFSC.

Documents for Downloading

https://content.fischer.de/cbfiles/fischer/zulassungen/eta/zd_etab_f_15-0696_%23sall_%23aip_%23v1.pdf

https://content.fischer.de/cbfiles/fischer/zulassungen/zd_cert_1121-cpr-ja5094_f_%23sall_%23aip_%23v1.pdf

https://content.fischer.de/cbfiles/fischer/zulassungen/zd_cert_ul-eu-01033-cpr_f_%23sall_%23aip_%23v1.pdf
