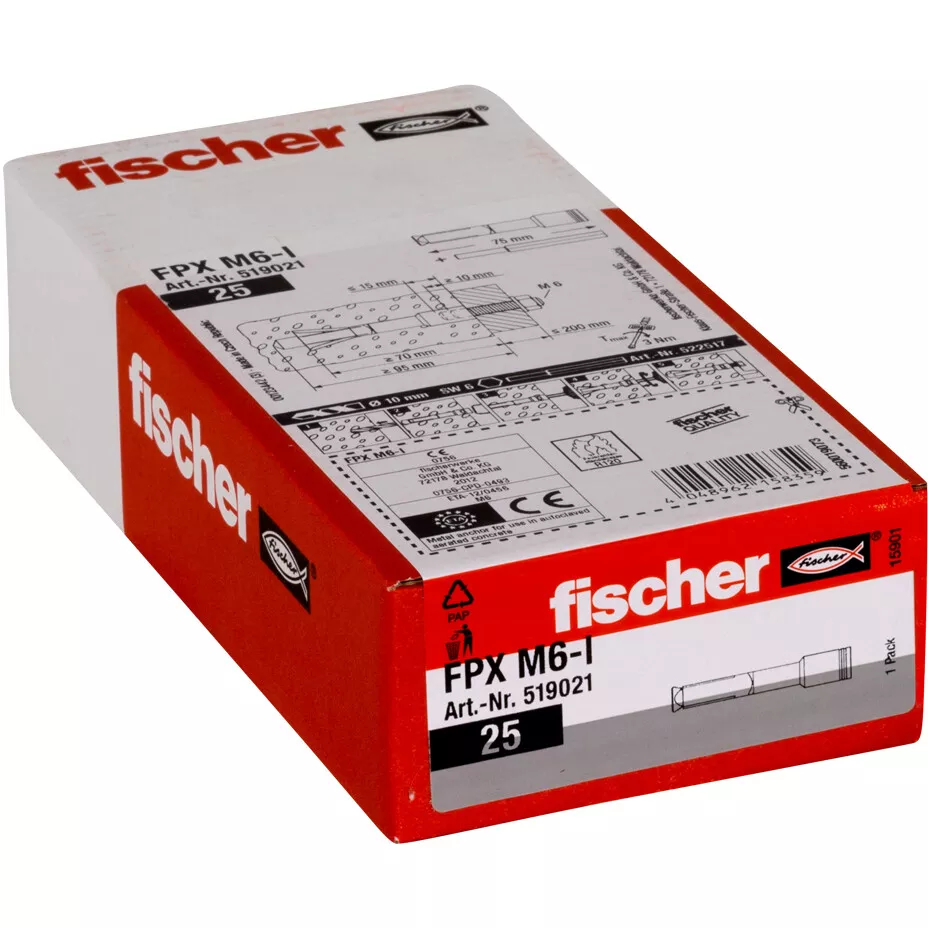

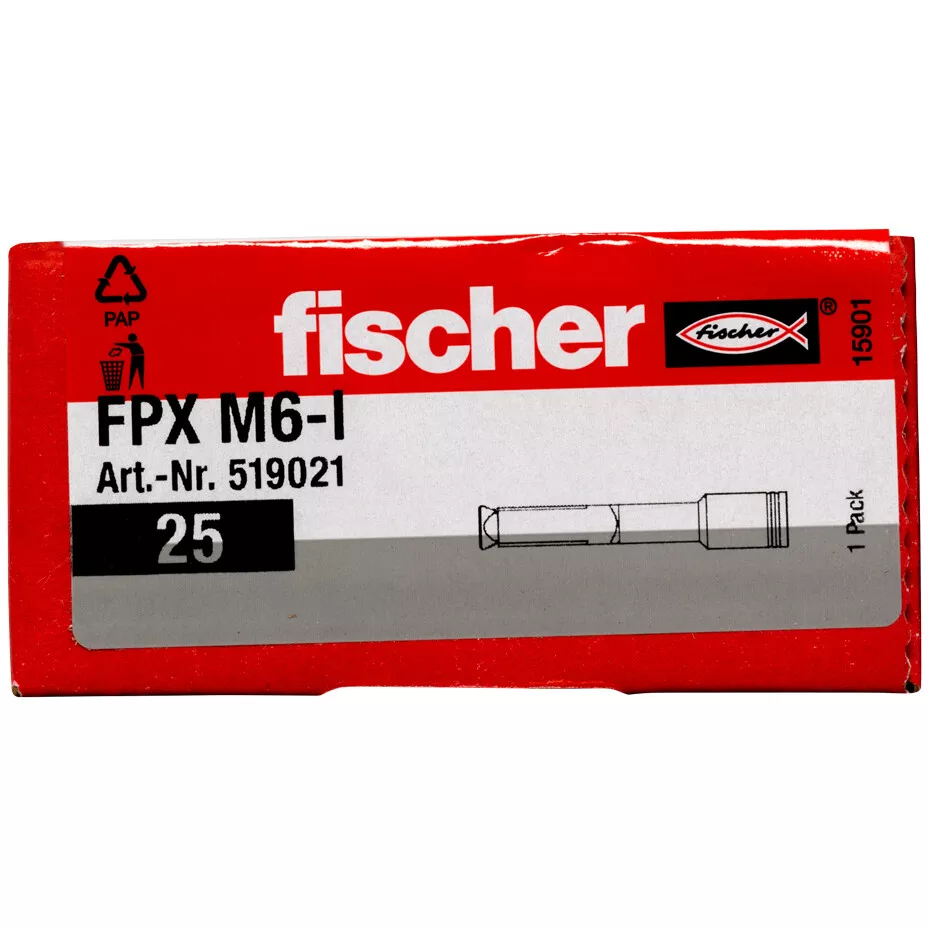

Fischer 519021 Aircrete Anchor FPX-M6-I Electro Zinc Plated Pack x 25

Fischer 519021 Aircrete Anchor FPX-M6-I Electro Zinc Plated Pack x 25
Ex. VAT £58.29 Inc. VAT £69.95

Usually ships within 14 working days

The strong internal thread anchor with unique four-way expansion for fixings in aerated concrete

Description

Details

  • The fischer Aircrete anchor FPX-I is made of zinc-plated steel
  • After pre-drilling, the FPX-I is only driven in with the hammer. It is not necessary to clean the drill hole
  • The fischer Aircrete anchor is applied with a hex driver via a cordless screwdriver or via a ratchet
  • The cone is then pulled into the expansion sleeve
  • In this case the four wings create an undercut in the drill hole
  • After expansion, the hex socket is automatically released
  • The fischer Aircrete anchor FPX-I is ideally suited for fixing suspended ceilings, railings or kitchen cabinets in aerated concrete

Top Features

  • The first approved metal anchor for aerated concrete
  • High load capacity: Expanding wings create undercut.This saves on fixing points
  • Simple and power-saving installation without an additional setting tool
  • No rotation of the anchor. Automatic setting control ensures maximum safety

Advantages

  • The FPX-I enables easy tightening via the hexagon wrench using a cordless screwdriver or ratchet and therefore offers top installation comfort
  • The deformation-controlled expansion of the anchor with the hexagon wrench ensures safe, even and gentle installation
  • The unique 4-way expansion of the FPX-I with a square expansion sleeve prevents the rotation of the anchor in the drill hole and ensures high tension and shear loads, which means fewer fixing points
  • The releasing of the hexagonal wrench guarantees an automatical setting control for each installation process
  • The first steel anchor with an ETA-Approval and fire protection certificate for fixings in aerated concrete enables use for safety-relevant fixings, too

Functioning

  • The FPX-I with internal thread is suitable for pre-positioned installation.
  • Pre-drilling enables easy hammering in, even in high-strength aerated concrete
  • There is no need to clean the drill hole

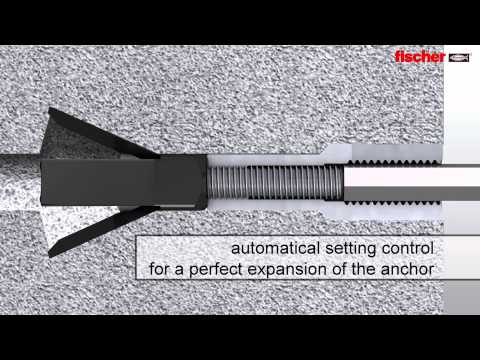

  • When the anchor is tightened with the hexagon wrench, the internal thread sleeve starts to rotate and the cone is pulled into the square expansion sleeve
  • The aerated concrete is compressed on the four sides and generates an undercut in the drill hole
  • When reached the optimum expansion, the hexagon wrench is released automatically from the anchor

Load Table for Downloading

https://content.fischer.de/cbfiles/fischer/lastentabelle/lt_01_fpx-i_f_%23sen_%23aip_%23v2.pdf

Documents for Downloading

https://content.fischer.de/cbfiles/fischer/zulassungen/eta/zd_etab_f_12-0456_%23sen_%23aip_%23v4.pdf

https://content.fischer.de/cbfiles/fischer/zulassungen/zd_dop_fpx-i-porenbeton-2_f_%23sall_%23aip_%23v1.pdf

Features

Features

Technical Data
ETA-approval
Drill diameter d0 10 [mm]
Min. drill hole depth for pre-positioned installation h1 95 [mm]
Anchor length l 75 [mm]
Effect. anchorage depth hef 70 [mm]
Min. bolt penetration lE,min 10 [mm]
Max. bolt penetration lE,max 15 [mm]
External-Ø d 14 [mm]
Amount 25 Unit(s)
GTIN (EAN Code) 4048962158359
Applications
Suspended ceilings
Cable trays
Pipelines
Ventilation ducts
Guard rails/hand rails
TV consoles
Kitchen cupboards
Stand-off installations
Building materials
Approved for:
Aerated concrete with compressive strength 2 to 7 N/mm²
Aerated concrete wall or ceiling boards with compressive strength 3.3 to 4.4 N/mm²
Planked aerated concrete masonry, e.g. plastered, tiled, papered etc.
