Fischer 97744 Bolt Anchor EXA M12/35 (12mmx136mm) Electro Zinc Plated Pack x 25

• The fischer bolt anchor EXA is a particularly installation-friendly steel anchor for fixings in non-cracked concrete
• The two expansion clips increase the expansion range and reduce the torque slippage

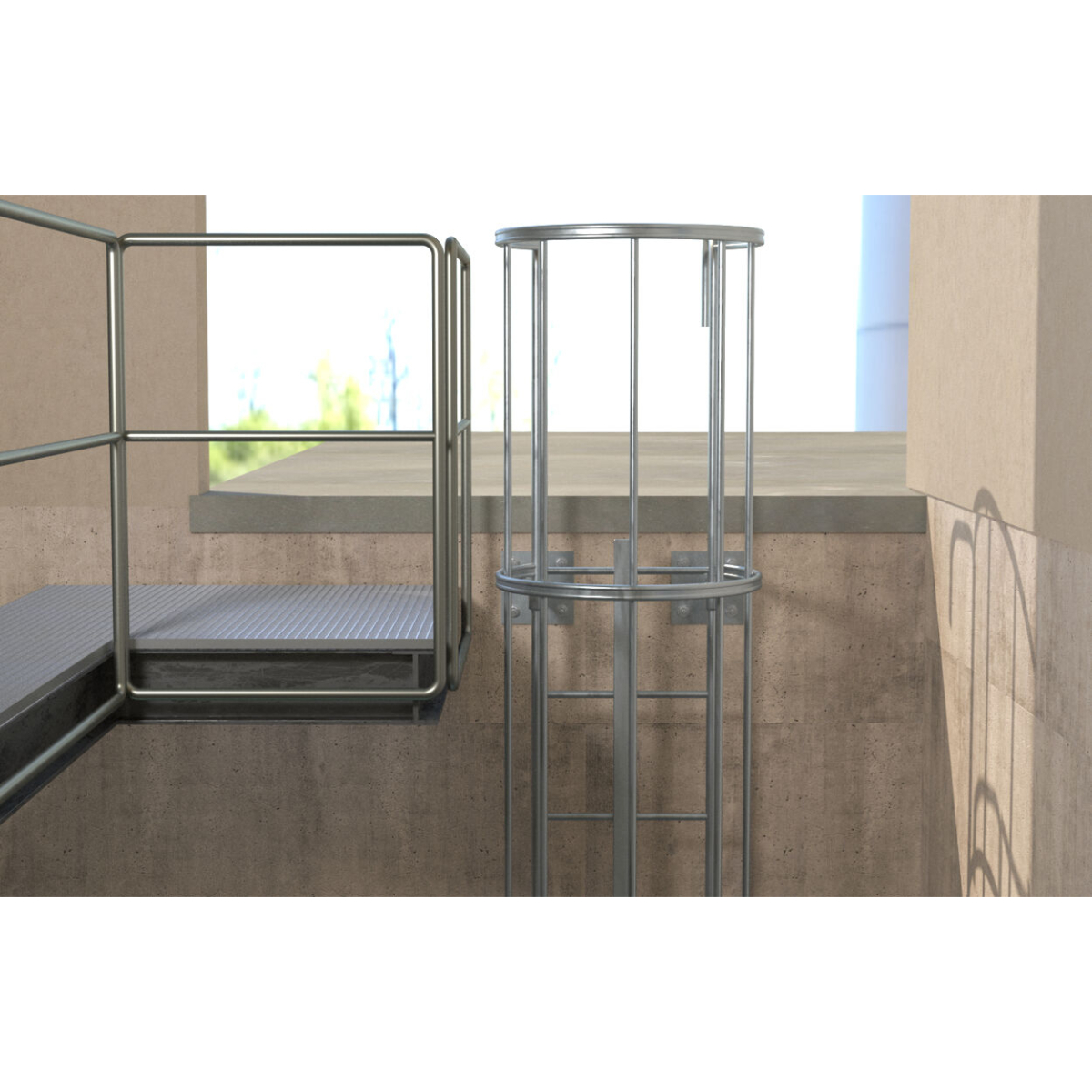

• The zinc-plated steel version of the bolt anchor is suitable for fixing railings, consoles, and cable trays in internal areas

Top Features

• The bolt anchor with the two expansion clips: fast, simple fixing
• Less assembly time due to lower torque slippage
• When hammering in, the drive-in pin protects the thread from damage
• This saves time during installation and removal

Advantages

• The two clips increase the expansion range and reduce the torque slippage
• This allows for a fast and simple installation
• The drive-in pin protects the thread from damage, and thus ensures a faster installation and dismantling of the fixture

Functionality

• The EXA is suitable for pre-positioned and push-through installation
• Prior to installation, place the hexagon nut in the optimal position (the drive-in pin projects by approx. 3 mm out of the hexagon nut)
• When applying the torque, the cone bolt is pulled into the expansion clips and expands these against the drill hole wall

Approvals

• ETA-05/0185 DoP No. 0014 DoP No. 0258 DoP No. 0756-CPD-0292

ETA Certification

https://fiproductmedia.azureedge.net/media/Certification%20Documents/ETA%20European%20Technical%20Assessment/fischer/ZD_ETAB_F_05-0185_SEN_AIP_V1.pdf
