Fischer 97296 Highbond Anchor Rod FHB II-A S M16 x 95/165mm gvz Pack x 10

• Drill hole diameter d0 16 [mm]
• Drill hole depth h0 110 [mm]
• Anchorage depth hef 95 [mm]
• Usable length tfix 165 [mm]
• Thread M M 16 Width across nut SW 24 [mm]

• The fischer Highbond rod anchor FHB II-A S is produced from zinc-plated steel
• The torque-controlled composite anchor can be processed with the Highbond special mortar FIS HB or the mortar cartridges FHB II-P and FHB II-PF HIGH SPEED.
• When tightening the hexagon nut, the anchor rod cones are pulled into the mortar shell, which expands against the drill hole wall
• Using the fischer Highbond system FHB II means that railings, machines and heavy steel constructions are securely installed within internal areas

Top Features

• Reduces anchorage depth, lowers expense when drilling and installing
• This saves costs
• Through-type installations without additional aids
• This saves time
• Optimised for low axial and edge distances in cracked concrete
• No drill hole cleaning is required when using a mortar cartridge
• This saves time.
• ETA approval for cracked concrete

Advantages

• The reduced anchorage depth of the FHB II-A S minimises the drilling and installation effort
• In addition using the combination with FHB II-P/-PF capsule no drill hole cleaning is required
• Thus allowing for an especially economical and time-saving fixing
• With the anchor rod FHB II-A S, the drill bit diameter is the same as the thread diameter
• This allows for push-through installation without any tools and reduces the amount of mortar required
• The cone shape of the anchor rod FHB II-A S is optimised for small axial and edge distances in cracked concrete, as well as thin concrete members
• As a result, it is suitable for a wide range of applications
• The anchor rod FHB II-A S is approved for use both with capsules and with injection mortar
• This guarantees maximum flexibility in the application.

Functioning

• The FHB II-A S is a bonded anchor with torque-controlled expansion for pre-positioned and push-through installation
• With the FHB II-A S, the drill bit diameter is the same as the thread diameter, similar to with an anchor bolt
• The anchor rod can be set either with injection mortar FIS HB or with the capsule FHB II-P / FHB II-PF HIGH SPEED, and is fully bonded in the drill hole
• When tightening the hexagon nut, the anchor rod cones are pulled into the mortar shell, which expands against the drill hole wall
• When using the resin capsule, set the anchor rod through rotating and hitting motions with a hammer drill
• Use the RA-SDS setting tool, FIS-62420.

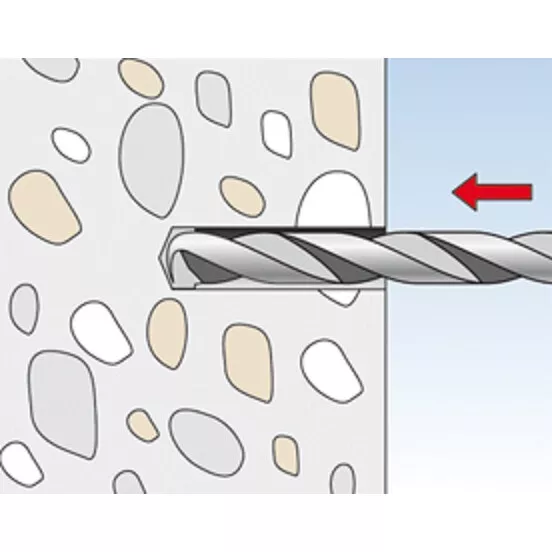

Assembly Instructions

https://content.fischer.de/cbfiles/fischer/zulassungen/ma_01_fhbii_f_%23sall_%23aip_%23v1.pdf

Load Table

https://content.fischer.de/cbfiles/fischer/lastentabelle/lt_01_fhbiias_f_%23sen_%23aip_%23v2.pdf

Safety Data

https://content.fischer.de/cbfiles/fischer/zulassungen/zd_sdb_01_fhbiip_f_%23sen_%23aip_%23v8.pdf

Approval Documents

https://content.fischer.de/cbfiles/fischer/zulassungen/eta/zd_etab_f_05-0164-1_%23sen_%23aip_%23v1.pdf

https://content.fischer.de/cbfiles/fischer/zulassungen/zd_dop_fhb-ii-1_f_%23sen_%23aip_%23v1.pdf
