- Description
-
Details

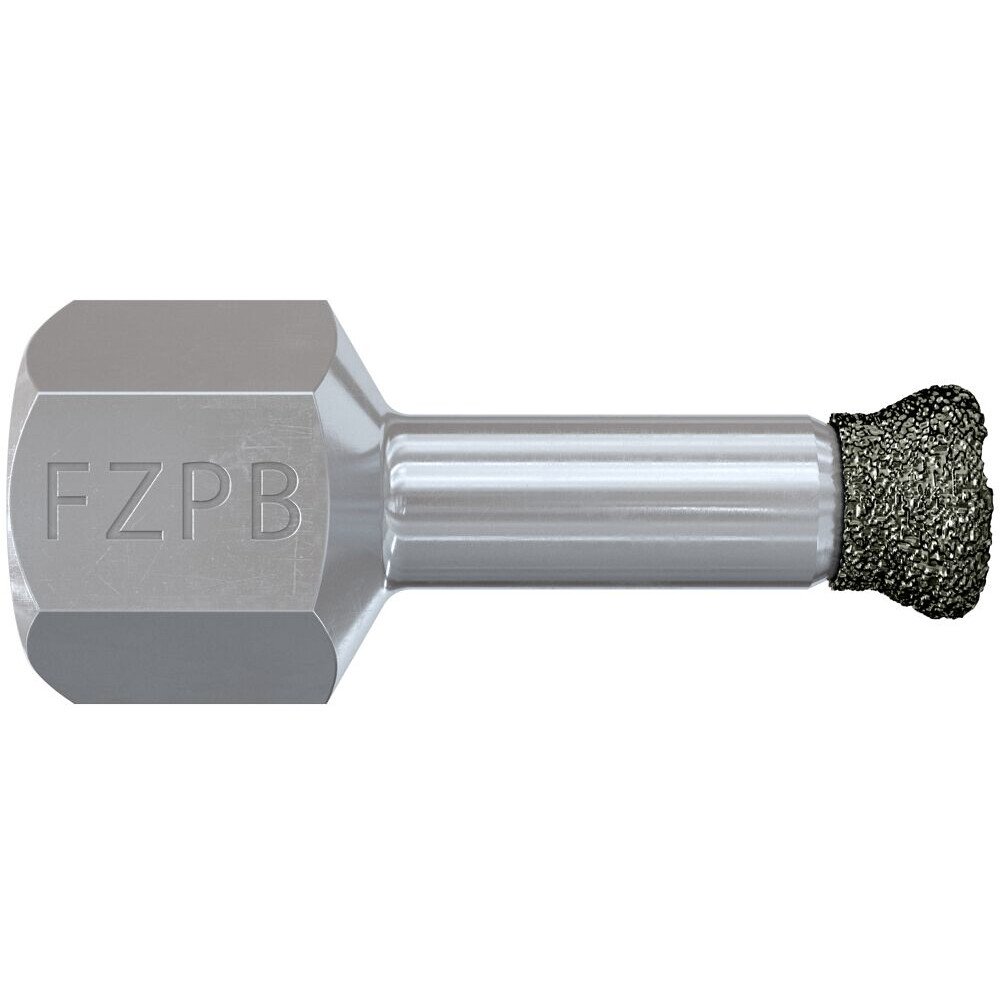

- The diamond drill bit FZPB 11 is a quality product for use with fischer drilling machines
- The drill bit is used to create undercut holes for the fischer undercut anchor type FZP II M8 with the machines SBN 502, LBT 80 or type FZP II M6 with the machines BSN 100 VD/VP
- The drill bit can be used up to a maximum drilling depth of 28 mm
Top Features
- For undercut drilling in mineral materials (natural stone, ceramics, etc.)
- Enables a drilling depth of up to 28 mm. For use in fischer drilling machines with integrated water cooling
- Part of the fischer FZP II undercut anchor approval. Fast tool change due to wrench flat
Advantages
- Simple creation of undercut drill holes for fischer-Zykon panel anchors
- Features
Features

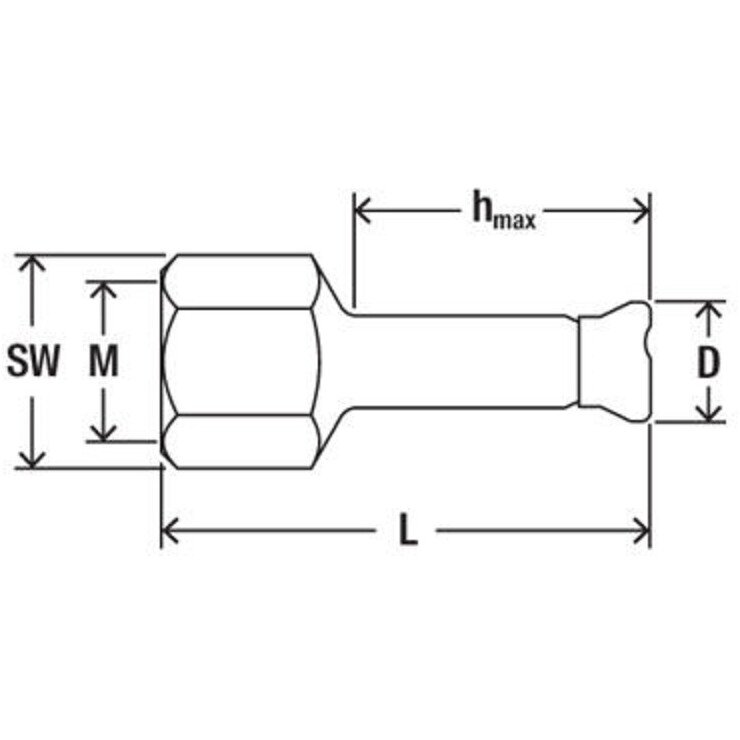

Technical Data Drill diameter d0 11 [mm] Working length 28 [mm] Thread M M14 Drilling method wet Adapted for Natural stone Amount 1 [pcs.] GTIN (EAN-Code) 4006209928806 Applications Interior façades Exterior façades Façade reveals Building materials Natural stone (≥ 20mm) Artificial concrete panels Ceramics (≥ 10 mm) Solid-surface materials Fibre cement HPL panels Solid surfaces Thin panel materials (≥ 8 mm)
