- Description
-
Details
- The fischer Highbond anchor dynamic FHB-A dyn is made of zinc-plated steel
- The torque-controlled composite anchor can be processed with the Highbond special mortar FIS HB
- When tightening the hexagon nut, the anchor rod cones are pulled into the mortar shell, which expands against the drill hole wall
- During the setting process, the injection mortar FIS HB fills the annular gap in the fixture, and guarantees optimum load distribution
- This allows for the absorption of dynamic alternating loads

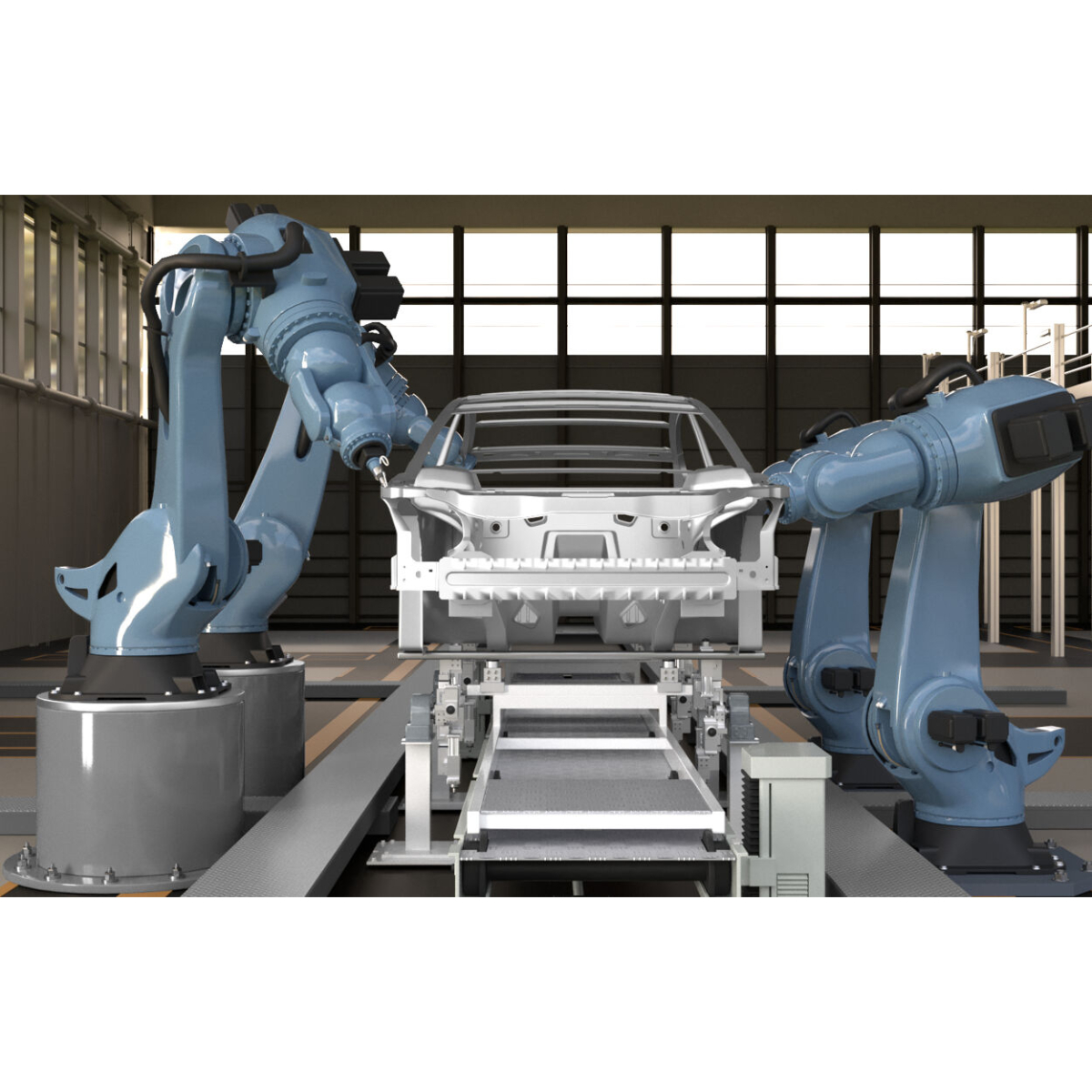

- The fischer Highbond anchor dynamic FHB-A dyn is ideally suited for fixing guide rails for elevators, industrial robots, or mobile portal and ceiling cranes in internal areas
Top Features
- Controlled expansion under dynamic stress due to cone shape
- Absorption of dynamic alternating loads via optimum load distribution
- Approved for cracked concrete
Advantages
- During the setting process, the injection mortar FISHB fills the annular gap in the fixture, and ensures optimum load distribution
- This allows for the absorption of dynamic alternating loads
- The cone shape of the FHB-Adyn anchor rod ensures a controlled expansion under dynamic stress, thus allowing for use in cracked concrete
- The anchor rod FHB-Adyn is also available made from highly corrosion-resistant steel
- This makes it suitable for use in aggressive atmospheres, for example in tunnels
- The Highbond anchor dynamic system can achieve even greater shear loads thanks to the additional sleeve of the anchor rod FHB-AdynV, and therefore provides an increased level of safety
Functionality
- The injection system suitable for tensile zones consists of the Highbond dynamic anchor rod FHB-Adyn and the injection mortar FIS HB
- FHBdyn is approved for pre-positioned and push-through installation
- Extruding the mortar causes the two components to be mixed and activated in the static mixer
- The mortar bonds the entire surface of the anchor rod with the drill hole wall and seals the drill hole
- The centring sleeve centres the anchor in the fixture, thus ensuring a safe load application
- The lock nut prevents the nut from becoming loose
European Technical Assessment
- Features
Features

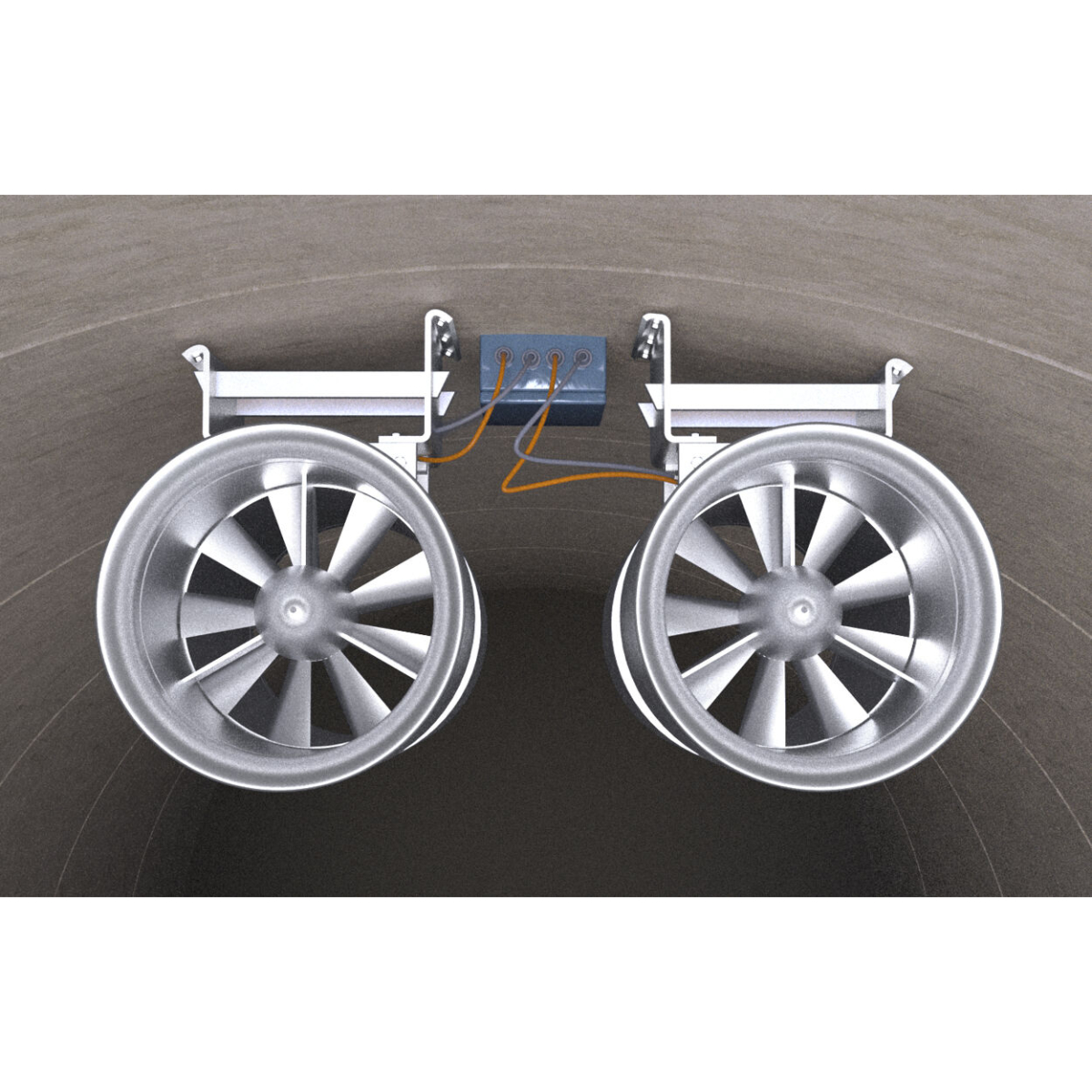

Technical Data ETA-approval Drill diameter 18 mm Min. drill hole depth for through fixings 155 mm Anchorage depth 125 mm Width across nut 24 mm Packaging Folding box Amount 10 pcs. GTIN (EAN-Code) 4006209920206 Applications Jib cranes Gantry and overhead cranes Guide rails for elevators Tunnel ventilators (jet fans) Gantries in road construction Antennas and transmitter masts Industrial robots Building materials Approved for: Concrete C20/25 to C50/60, cracked and non-cracked
