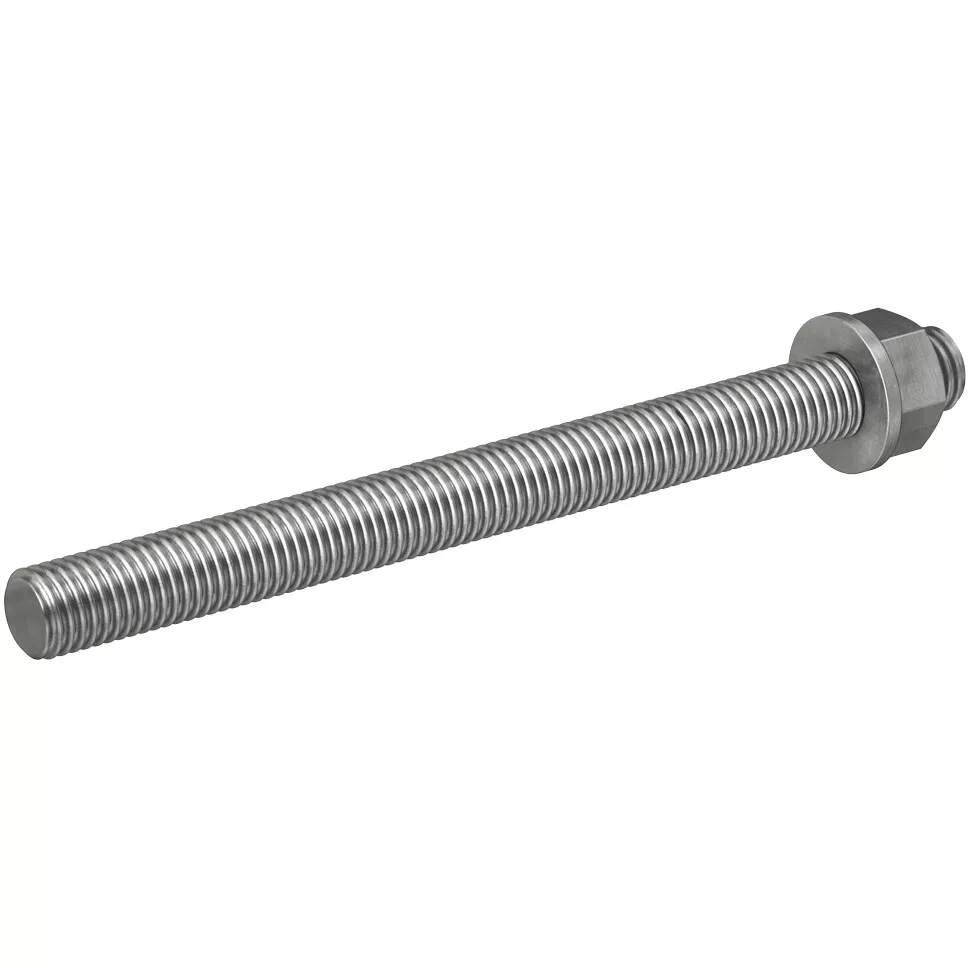

Fischer 90447 Threaded Rod FIS A M 10 x 130 A4 Stainless Steel Box x 10

• The universal solution for various fischer injection mortars.
• For a manageable range and simpler storage
• Approved for anchorage in cracked and non-cracked concrete, solid brick masonry, perforated masonry, and aerated concrete in combination with various fischer injection mortars
• Optimum load adaptation due to variable anchorage depths
• This lowers installation and material costs
• Stainless steel for outdoor use.
• The fischer threaded rod FIS A is made from stainless steel
• The threaded rod is a system component for the various fischer injection mortars
• Together with the injection mortars, the fischer threaded rods are suitable and approved for all subsurfaces
• A thorough cleaning of the drill hole is recommended for the maximum load-bearing capacity of the system
• The system of stainless steel threaded rods in combination with fischer injection mortars is suitable and approved for fixings outside and in damp rooms without aggressive conditions.

Advantages

• The threaded rod FIS A can be used with almost every fischer injection mortar (except Highbond special mortar FIS HB).
• It can be individually selected based on requirements, thus allowing for a wide range of applications
• The wide range of approved threaded rods FIS A from M6 to M30 allows for various applications
• Please refer to the approvals of the injection mortar used.

Applications

• Approved anchorings with Injection mortars FIS SB, FIS EM, FIS EB, FIS PM, FIS V, FIS VL, FIS P Plus and FIS GREEN Anchorings without approval with Injection mortar FIS P

Building materials

• In connection with several fischer injection mortars the threaded rod FIS A is approved or suitable for different building materials.

Permission

• ETA-02/0024 DoP No. 0007 DoP No. 0072 DoP No. 0094 DoP No. 0094 - EN DoP No. 0756-CPD-0301

Functioning

• The threaded rod FIS A is suitable for pre-positioned and push-through installation. FIS A is set manually into the drill hole, by lightly rotating it until it reaches the drill hole base.
