- Description
-
Details
- The Fischer metal frame fixing F-M is a special plug for the stress-free, lasting stand-off installation of window and door frames and of squared timbers. It consists of a metal sleeve and a zinc-plated steel screw
- The F-M is set in a time-saving push-through installation
- When the screw is tightened, the cone is pulled into the plug sleeve and expands against the wall of the drill hole
- This ensures a fixation that is free from tensile force and pressure, thus guaranteeing a secure hold in solid and hollow building materials

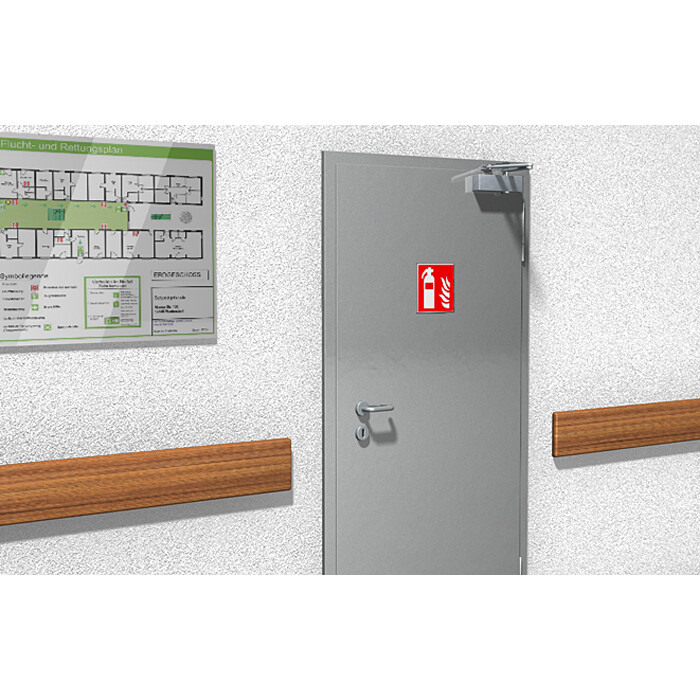

- The F-M is tested for fire resistance class R120, and offers safety for fire-protection-relevant applications.
Top Features
- Fire protection tested in line with R 120: Usage in areas where fire resistance is relevant
- Stress-free, durable fixing of the frame
- Continuous thread prevents the frame from being pulled
- Use for all solid and hollow building materials lowers complexity
- .Compression and tensile-resistant anchoring of metal and plastic profiles
- With countersunk head screw
Advantages
- The F-M metal frame plug achieves fire resistance F 120.
- This allows for use in areas where fire resistance is relevant
- The operating principle prevents the window frame from being pulled against the substrate, and ensures a stress-free and long-lasting fixing of the frame
- The special plug geometry anchors the metal and plastic profiles against compressive and tensile loads, and allows for a secure hold of the window frame
- The cover caps (available separately) can be used to discreetly cover the screw heads.
Functioning
- The F-M is suitable for push-through installation. By tightening the screw, the cone is drawn into the sleeve and the fixing is expanded which wedges it inside the drill hole
- The window frames are thus fixed in a stress-free manner
- The maximum installation torque is 5 Nm
Load Table
https://content.fischer.de/cbfiles/fischer/lastentabelle/lt_01_f-m_f_%23sen_%23aip_%23v2.pdf
Fire Test Report For Downloading
https://content.fischer.de/cbfiles/fischer/zulassungen/zd_b_02_fm_f_%23sen_%23aip_%23v1.pdf
- Features
Features
Drill hole diameter d0 10 [mm] Min. drill hole depth for through fixings h2 150 [mm] Effect. anchorage depth hef 30 [mm] Anchor length l 132 [mm] Max. fixture thickness t fix 102 [mm] Drive PZ3 Amount 100 Unit(s) GTIN (EAN Code) 4006209886762 Applications Window frames Door frames Squared timbers Building materials Concrete Vertically perforated brick Hollow blocks made from lightweight concrete Perforated sand-lime brick Solid sand-lime brick Aerated concrete Solid brick made from lightweight concrete Solid brick
