- Description
-
Details
- The Fischer window frame fixing F-S is a special plug for the stress-free stand-off installation of window and door frames
- It consists of a plug made from high-qualify nylon and a countersunk head screw with a cross-slot recess made from zinc-plated steel
- The F-S is set in a time-saving push-through installation
- When the screw is tightened, the fibre-glass reinforced plastic cone is pulled into the plug sleeve and expands against the wall of the drill hole
- This ensures a fixation that is free from tensile force and pressure, thus guaranteeing a secure hold in all building materials
Top Features
- Stress-free, durable fixing of the frame
- Continuous thread prevents the frame from being pulled
- Use for all solid and hollow building materials lowers complexity
- Compression and tensile-resistant anchoring of metal and plastic profiles
- Cover cap covers screw head
Advantages
- The operating principle of the plug prevents the frame from being pulled against the substrate, and ensures a stress-free and long-lasting fixing of the frame
- The special plug geometry anchors the metal and plastic profiles against compressive and tensile loads, and allows for a secure hold of the window frame
- The cover cap (available separately) can be used to discreetly cover the screw head
Functioning

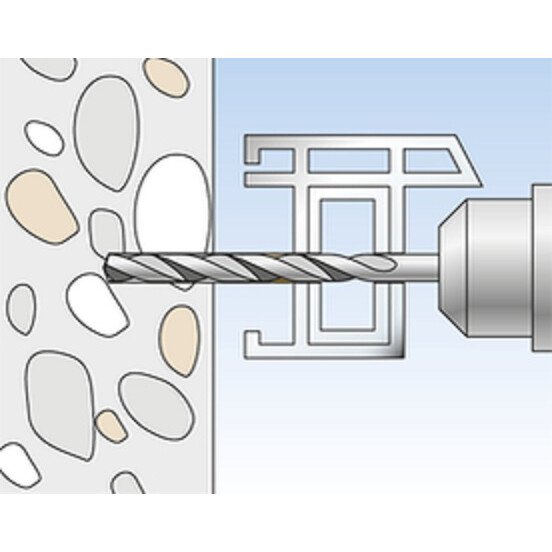

- The F-S is suitable for push-through installation

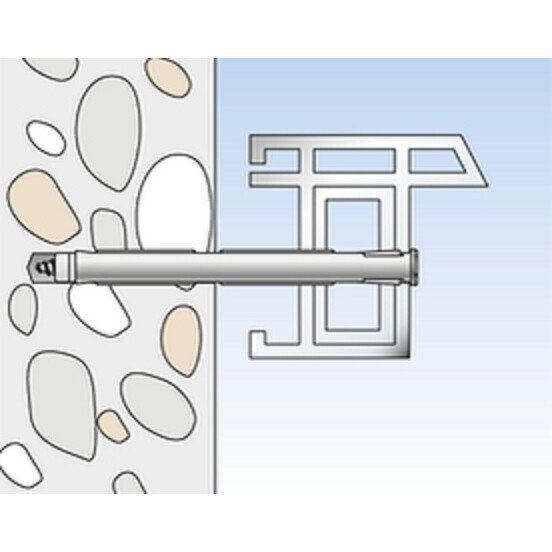

- By tightening the screw, the glass-fibre-reinforced plastic cone is drawn into the sleeve, whereby it is expanded and wedged inside the drill hole
- The window frames are thus fixed in a stress-free manner.
- The maximum installation torque is 3 Nm
Load Table For Downloading
https://content.fischer.de/cbfiles/fischer/lastentabelle/lt_01_f-s-n_f_%23sen_%23aip_%23v2.pdf
- Features
Features
Drill diameter 10 mm Effect. anchorage depth 50 mm Anchor length 165 mm Max. fixture thickness 105 mm Min. drill hole depth for through fixings 180 mm Max. installation torque 6 N·m Packaging Folding box Amount 50 pcs. GTIN (EAN-Code) 4006209886298 Applications Window frames Door frames Building materials Concrete Vertically perforated brick Hollow blocks made from lightweight concrete Perforated sand-lime brick Solid sand-lime brick Aerated concrete Solid brick made from lightweight concrete Solid brick
