Fischer 80960 Scaffold Eyebolt GS 12 x 190 Pack x 25

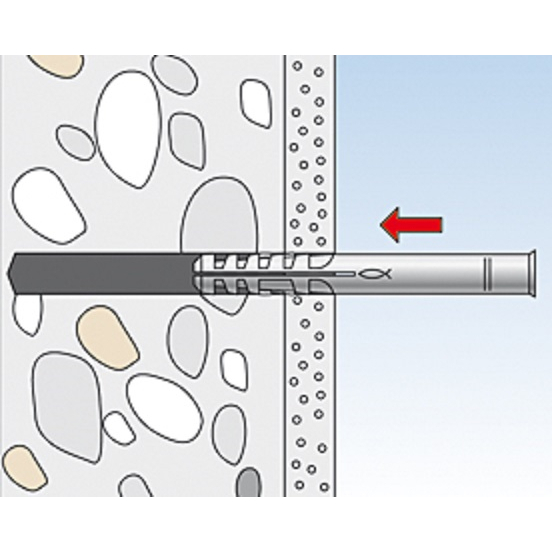

• The fischer eye bolt GS made of zinc-plated steel is, together with the fischer expansion plug S 14 ROE, suitable for fixing into concrete and solid brick
• The screw-in markings provide a visual control during assembly and prevent the eye from being unintentionally broken off

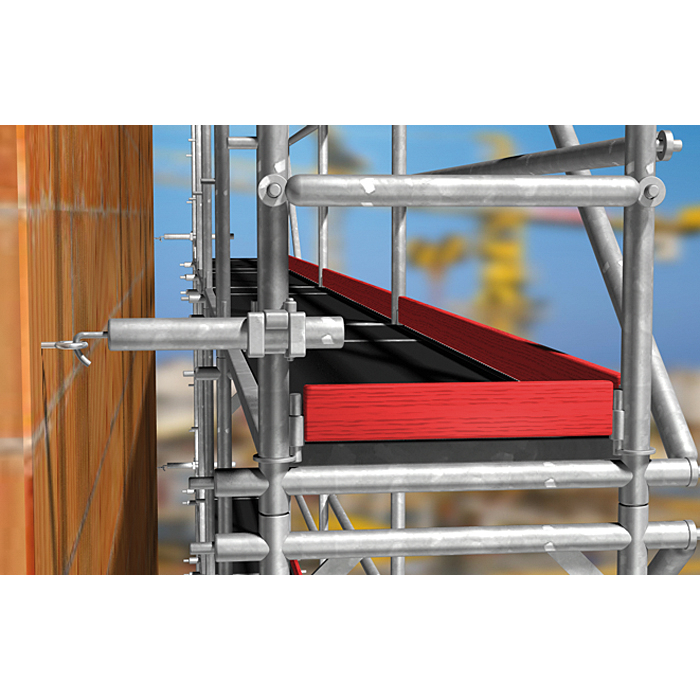

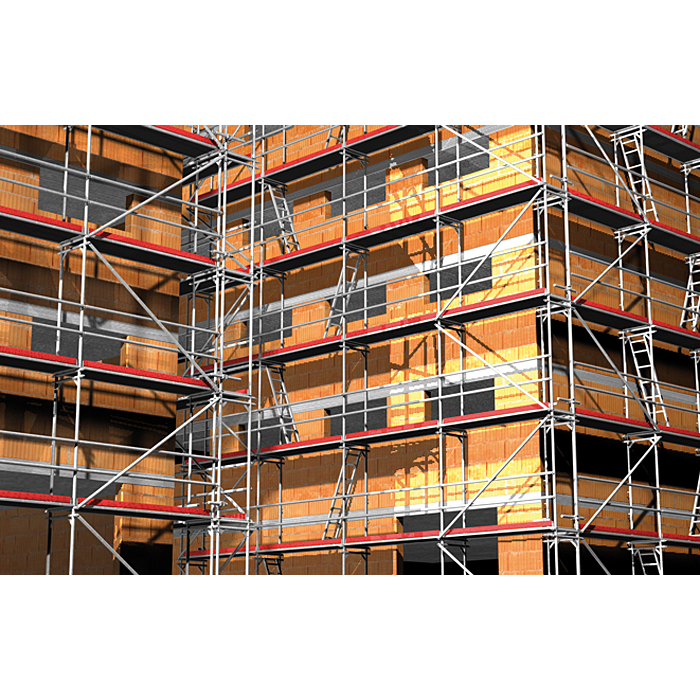

• The fischer eye bolt is ideally suited for fixing façade scaffolds, cables, or chains.

Top Features

• The eye does not open due to the high-quality weld
• Optimum interaction between eyebolt and fischer expansion plug.

Advantages

• The ideal interaction of the scaffold eyebolt and plug allows for a high load-bearing capacity, thus providing increased safety
• The high-quality weld stops the eye from opening
• The large diameter of the cover caps (available separately) covers drill holes completely and discreetly, even those with slightly broken edges

Functionality

• In order to achieve the maximum load-bearing capacity, nylon plugs should only be used once
• The screw-in markings provide a visual control during assembly, and thus allow for a simple and problem-free installation
• Pre-drill into wood when not using plugs
• The drill bit diameter should correspond to the core diameter of the screw
• Suitable cover caps AD 12x40 for closing off residual drill holes for S14 ROE
• Not suitable for swings, hammocks etc.

Load Table for Downloading

https://content.fischer.de/cbfiles/fischer/lastentabelle/lt_01_gs12-duebel_f_%23sen_%23aip_%23v2.pdf
