Fischer 78413 Turbo Aircrete Anchor FTP K M8 x 10mm Pack x 25

More Views

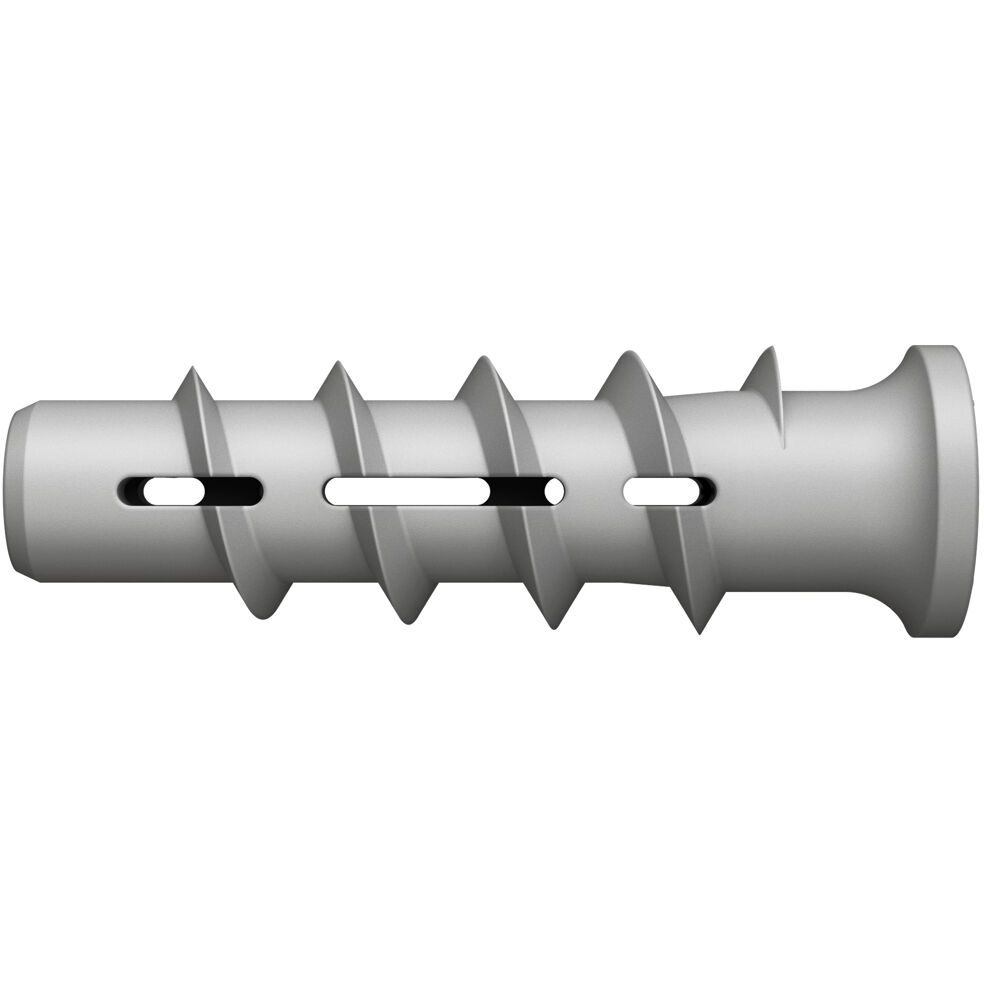

Fischer 78413 Turbo Aircrete Anchor FTP K M8 x 10mm Pack x 25
Ex. VAT £18.99 Inc. VAT £22.79

Usually ships within 10 working days

For wood screws and metric screws

Description

Details

Top Features

  • For wood screws and metric screws
  • High retention forces due to interlocking in building materials
  • Convenient assembly: reduced wear and tear due to the setting tool
  • Low axial and edge distances due to expansion pressure-free anchoring

Advantages

  • The FTP K is suitable for both wood screws and metric screws, and thus offers flexibility in screw choice
  • The spiral-shaped outer thread taps itself into the soft aerated concrete with a positive fit, thus ensuring a secure hold
  • Setting with the FTP EK setting tool requires only a small amount of force
  • For a convenient installation
  • The special geometry allows for an almost expansion-force-free anchoring
  • This allows for small edge and spacing distances, and avoids splitting in the case of plastered surfaces

Functionality

  • The FTP K is suitable for pre-positioned installation

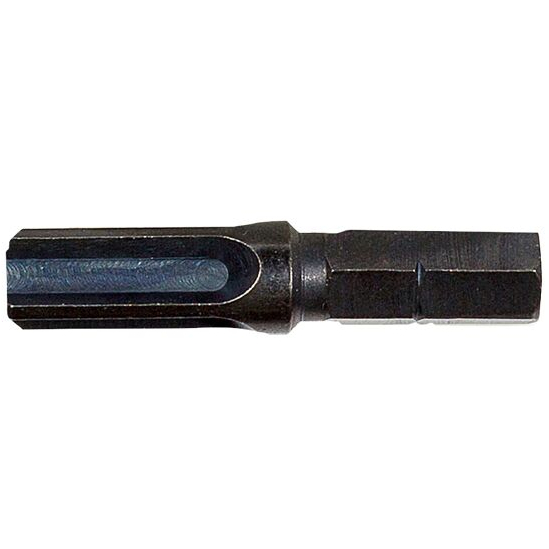

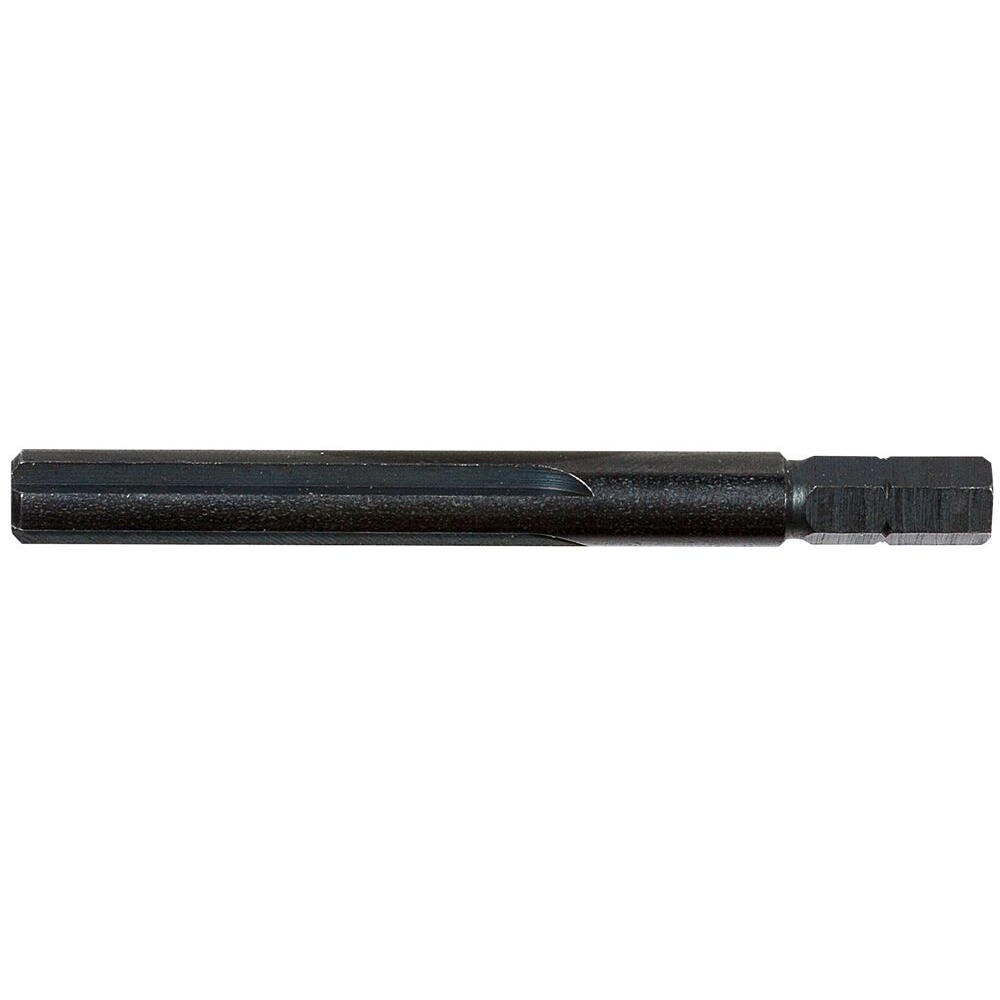

  • Set the FTP K with setting tool FTP EK
  • The aircrete anchor taps itself into the aerated concrete with a positive fit during the installation process
  • Suitable for wood and metric screws with diameter 4 to 4,5 mm

Load Table

https://fiproductmedia.azureedge.net/media/Load%20Tables/Load%20Tables%20fischer/LT_01_FTP-K_SEN_AIP_V1.pdf

Features

Features

Technical data
Drill diameter 10 mm
Min. drill hole depth 70 mm
Anchor length 60 mm
Woodscrew diameter 7 - 8 mm
Metric screw M8
Min. bolt penetration 45 mm
Max. bolt penetration 70 mm
Amount 25 pcs.
Packaging Folding box
GTIN (EAN-Code) 4006209784136
Application and approval
Applications
Pictures
Lighting
Letter boxes
Signs
Motion detectors
Cable and pipe clips
Building materials
Aerated concrete
Solid panel made from gypsum
