- Description
-
Details
Top Features
- For wood screws and metric screws
- High retention forces due to interlocking in building materials
- Convenient assembly: reduced wear and tear due to the setting tool
- Low axial and edge distances due to expansion pressure-free anchoring
Advantages

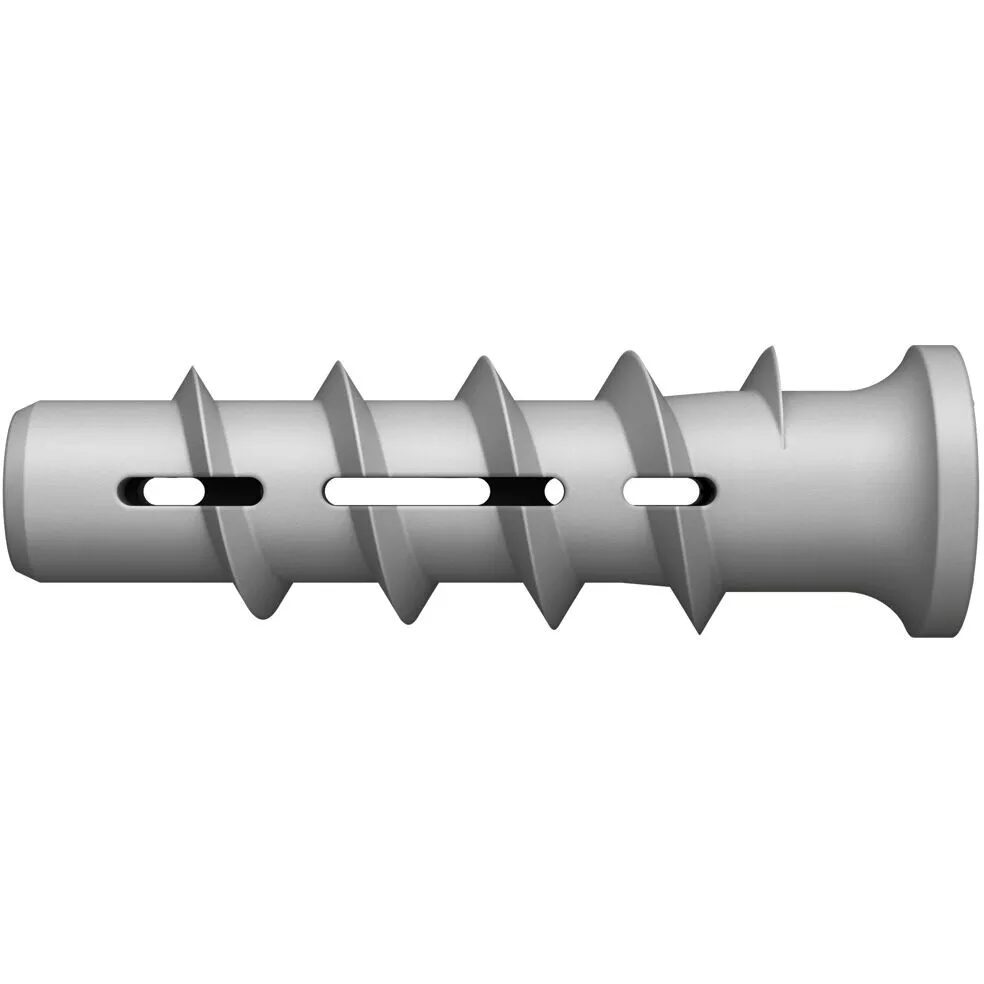

- The FTP K is suitable for both wood screws and metric screws, and thus offers flexibility in screw choice
- The spiral-shaped outer thread taps itself into the soft aerated concrete with a positive fit, thus ensuring a secure hold
- Setting with the FTP EK setting tool requires only a small amount of force
- For a convenient installation
- The special geometry allows for an almost expansion-force-free anchoring
- This allows for small edge and spacing distances, and avoids splitting in the case of plastered surfaces
Functionality
- The FTP K is suitable for pre-positioned installation
- Set the FTP K with setting tool FTP EK

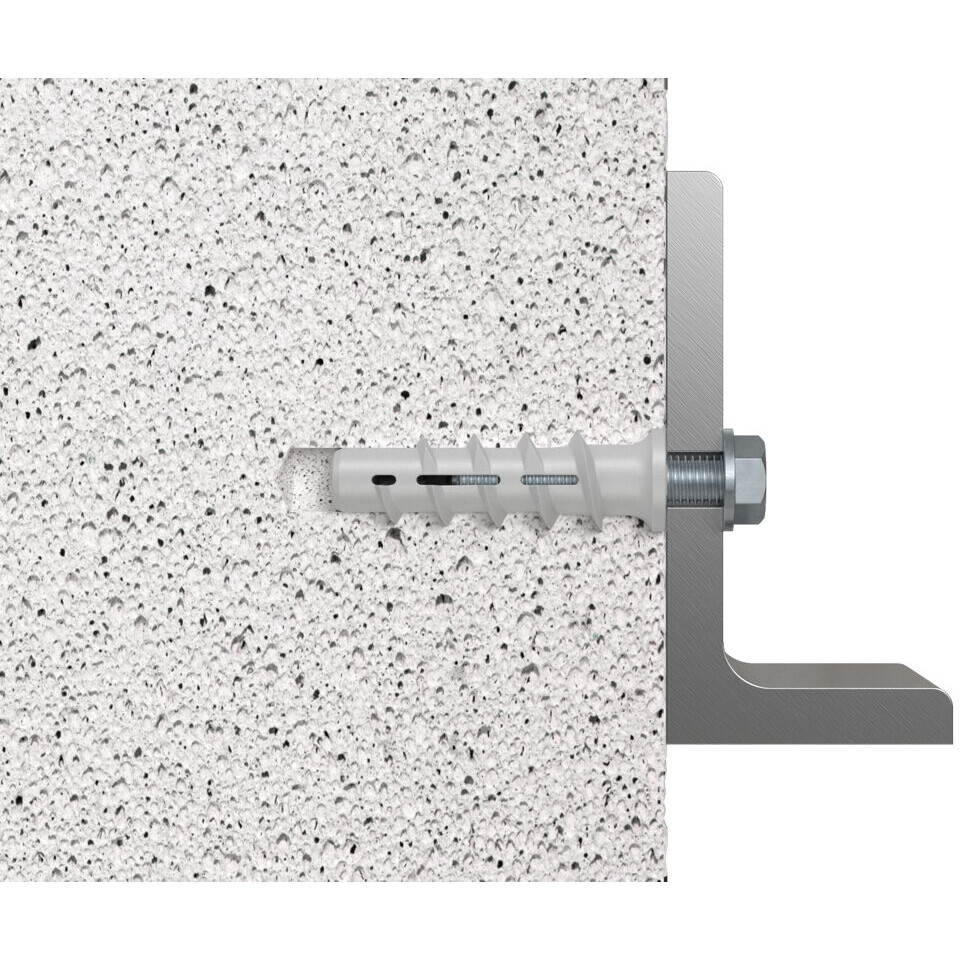

- The aircrete anchor taps itself into the aerated concrete with a positive fit during the installation process
- Suitable for wood and metric screws with diameter 4 to 4,5 mm
Load Table
- Features
Features

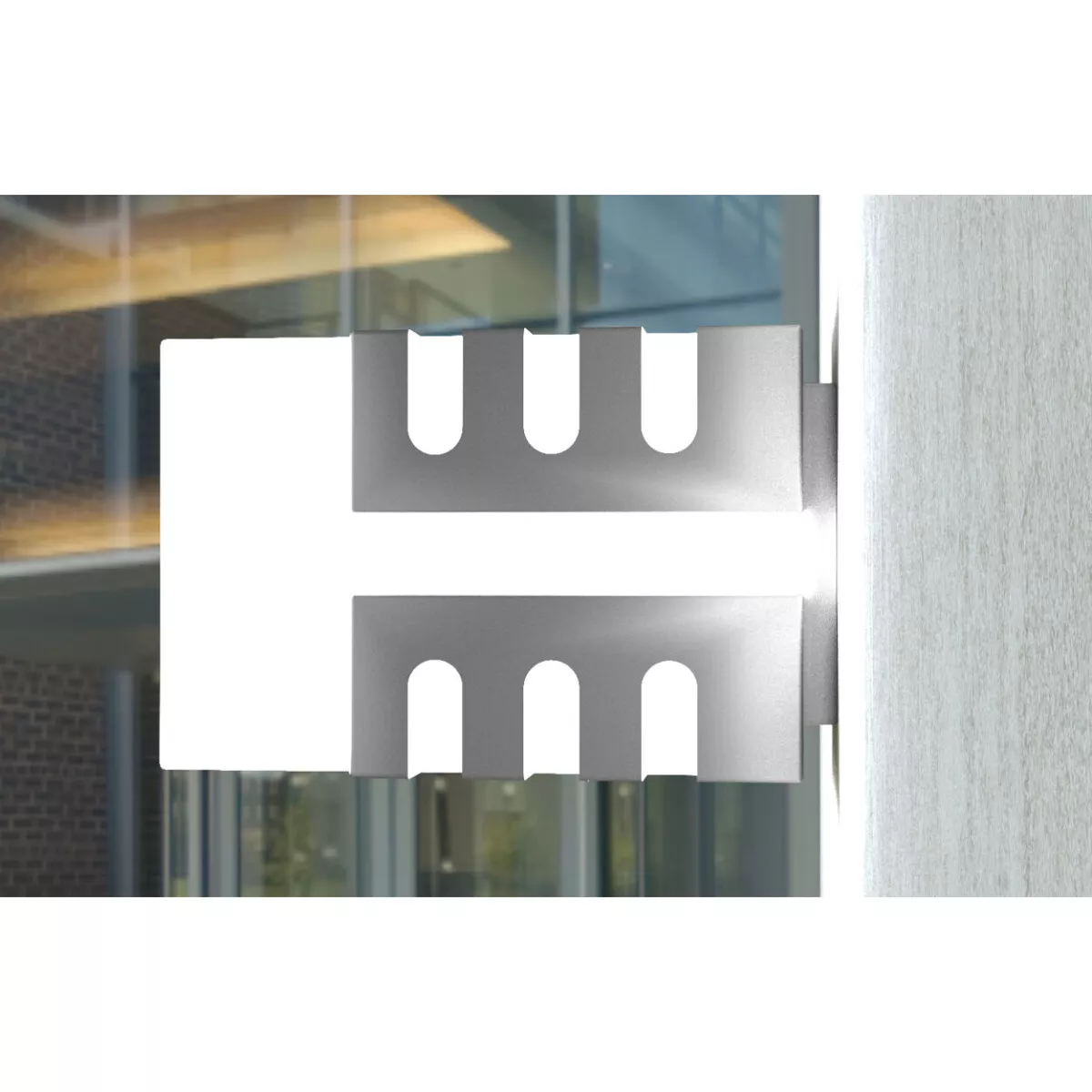

Technical data Drill diameter 8 mm Min. drill hole depth 60 mm Anchor length 50 mm Woodscrew diameter 5 - 6 mm Metric screw M5 - M6 Min. bolt penetration 40 mm Max. bolt penetration 60 mm Amount 25 pcs. Packaging Folding box GTIN (EAN-Code) 4006209784129 Application and approval Applications Pictures Lighting Letter boxes Signs Motion detectors Cable and pipe clips Building materials Aerated concrete Solid panel made from gypsum
