- Description
-
Details
The fischer chipboard screw Power-Fast FPF II CZP a blue passivated zinc plating screw with a countersunk head, cross drive PZ and Full Thread
- The countersunk head allows for surface flush installation in wood
- The version with a partial thread enables the timber elements to be fastened together tightly
- The screw is suitable for fixing load-bearing components in coated wood, hardwood, softwood, and timber connections
Top Features
- The increased thread pitch significantly reduces the installation time
- The three ribs on the tip, ensure a quick bite and pre-drilling
- The shank-miller in combination with the core-miller geometry is designed to reduce the installation torque

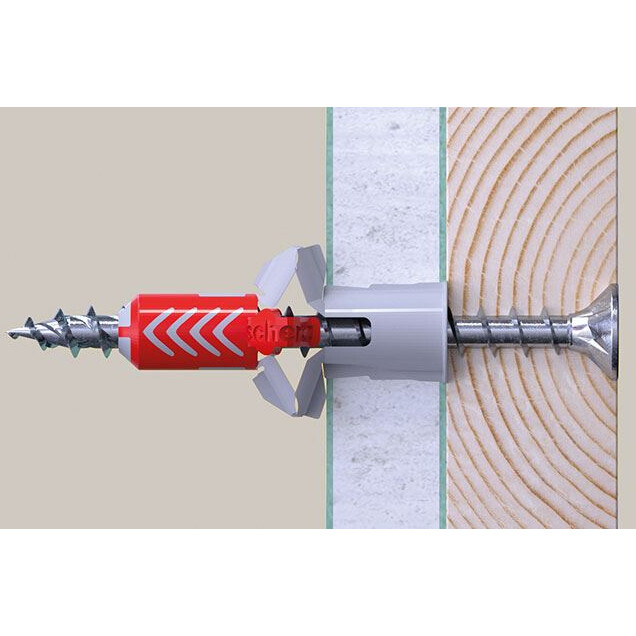

- The Power-Fast II is suitable for use with fischer plugs (E.g DUOPOWER and UX) and recommended loads
Advantages
- The shank-miller in combination with the core-miller geometry is designed to reduce the installation torque. This means that more screws can be installed with the same battery and less effort
- The screw geometry of the Power-Fast II enables fast applications
- Installation is easy, comfortable and flexible
- The chipboard screw has significantly reduced splitting behavior in comparison with standard chipboard screws
- The Power-Fast II with high performance wax coating reduces screw-in torque and allows smooth installation
- The blue passivated zinc plating does not contain chrome VI and is therefore environmentally friendly
Functionality
- Screws with partial threads can lock wood parts into place by tightening them against each other
- Screws with countersunk head can be flush mounted with the wood
ETA Documents for Downloading
DOP for Downloading
- Features
Features
Technical Data ETA-approval Diameter 5 [mm] Length 30 [mm] Drive Cross drive PZ2 Full thread length 24 [mm] Amount 200 [Unit(s)] GTIN (EAN-Code) 4048962372502 Applications For use in load-bearing wooden constructions, for the connection of solid wood parts as well as glued laminated timber, cross laminated timber, etc. For metal parts to wood, e.g. metal fittings, angles, beam shoes and other metal and wood connections. Suitable for use with fischer plugs and recommended loads. Building materials Solid wood parts (soft wood and hard wood) Glued-laminated timber Cross-laminated timber Veneer laminated timber Similar glued wood components and woodbased panels
