Fischer 59180 Plug S 14 H 135 R Pack x 50

More Views

Fischer 59180 Plug S 14 H 135 R Pack x 50
Ex. VAT £39.99 Inc. VAT £47.99

Usually ships within 2 working days

Frame fixing with two-way expansion for fischer GS 12 universal eye screw for fixings in perforated brick

Description

Details

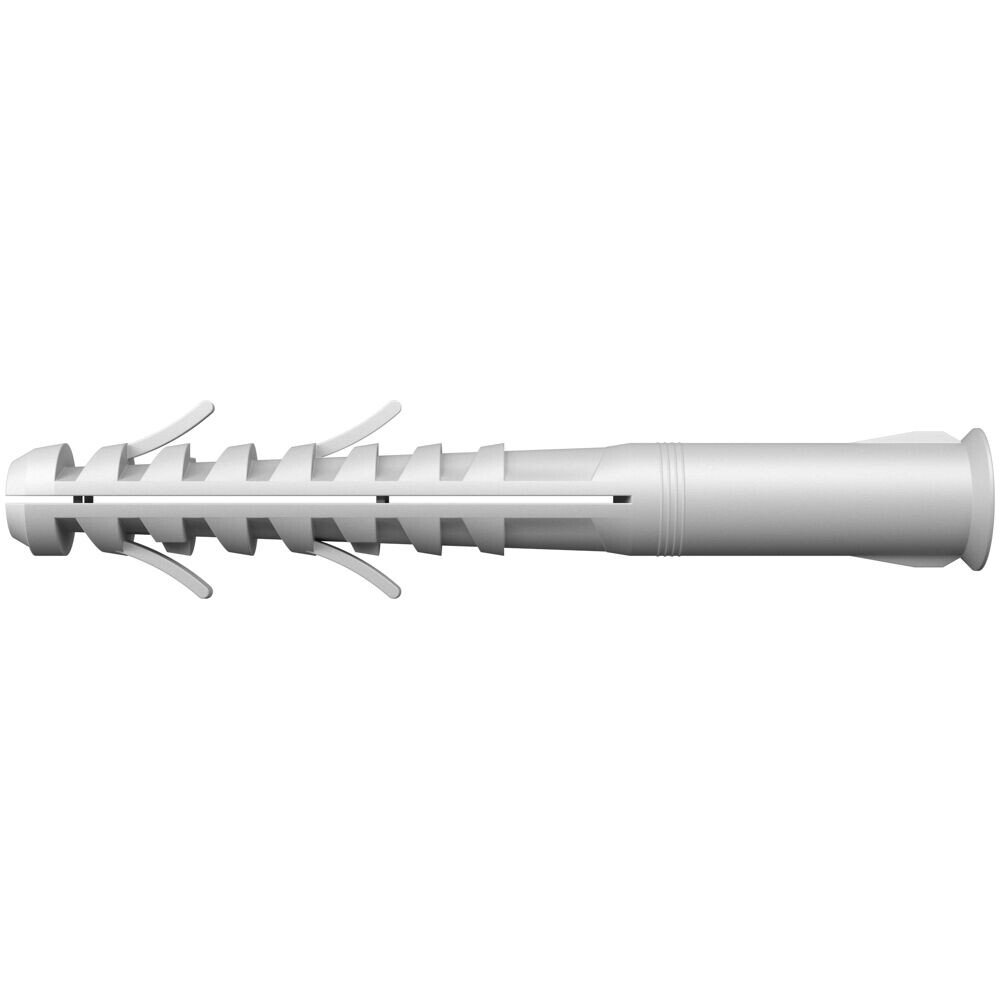

  • The fischer plug S 14 R is an expansion plug made of high-quality nylon for holding the fischer universal eye screw GS
  • The expanding wings prevent rotation and make assembly easier
  • When driving in the universal eye screw, the two expansion zones expand and anchor themselves securely in the building material
  • For installations close to the edge, turn the plug so that the expansion force acts parallel to the edge

Top Features

  • Optimum load-bearing capacities together with fischer universal eye screw
  • Suitable for fixings in perforated brick
  • Made of high-quality nylon
  • Edge prevents slippage and spallings
  • Fixing is close to the edge due to slimline geometry

Advantages

  • The ideal interaction of the eye screw and anchor allows for a high load-bearing capacity, thus providing increased safety
  • The anchorage depth of 90 mm offers special advantages for anchorings in perforated brick

Functionality

  • The nylon plug must only be used once
  • Not suitable for swings, hammocks etc.
Features

Features

Technical Data
Drill diameter d0 14 [mm]
Min. drill hole depth for through fixings h2 155 [mm]
Bolt penetration s 145 [mm]
Effect. anchorage depth hef 90 [mm]
Anchor length l 135 [mm]
Max. thickness of non-bearing layer t fix 45 [mm]
Packaging Folding box
Amount 50 [pcs.]
GTIN (EAN-Code) 4006209591802
Applications
When combined with GS 10:
Ropes
Chains
Trellises
Lighting
Clothes lines
Hanging baskets
Building materials
S 14 HR + GS 10 suitable for:
Vertically perforated brick
Perforated sand-lime brick
Hollow blocks made from lightweight concrete
