Fischer 567921 Expansion plug SX Plus 6 x 30 Tub x 200

• Thanks to its 4-way expansion, the fischer SX Plus expansion plug is the specialist for solid building materials such as concrete, sand-lime brick and masonry
• The special fixing blades ensure pre-fixation of the screw, which means that it does not have to be additionally held in place for overhead applications
• This screw fixation allows the user a flexible and comfortable setting process
• The flexibel plug edge also prevents the plug from slipping deeper into the drill hole for secure installation
• The high-quality nylon material guarantees a permanently secure hold in a wide range of solid and perforated building materials

The specialist for solid building materials

Advantages

• The 4-way expansion ensures optimum force transmission into the building material and guarantees high holding values in solid and perforated building materials
• The special fixing wings ensure pre-fixation of the screw, leaving both of the user's hands free during the setting process
• The expansion-free plug neck prevents the creation of expansion forces on the material surface whilst screwing in the screw
• This helps to prevent damage to tiles and plaster
• The special shape of the plug makes it easy to insert into the drill hole with just a few hammer blows
• The pronounced edge of the plug prevents it from slipping deeper into the drill hole and enables secure installation
• Due to the noticeable tightening torque, the user automatically recognizes when the screw is properly installed and thus prevents overtightening of the screw

Functionality

• The SX Plus is suitable for pre-positioned and push-through installation
• When the plug is inserted, the fixing wings fold inwards
• This locks the screw in place when it is inserted into the plug and prevents it from falling out, which is particularly helpful in overhead applications

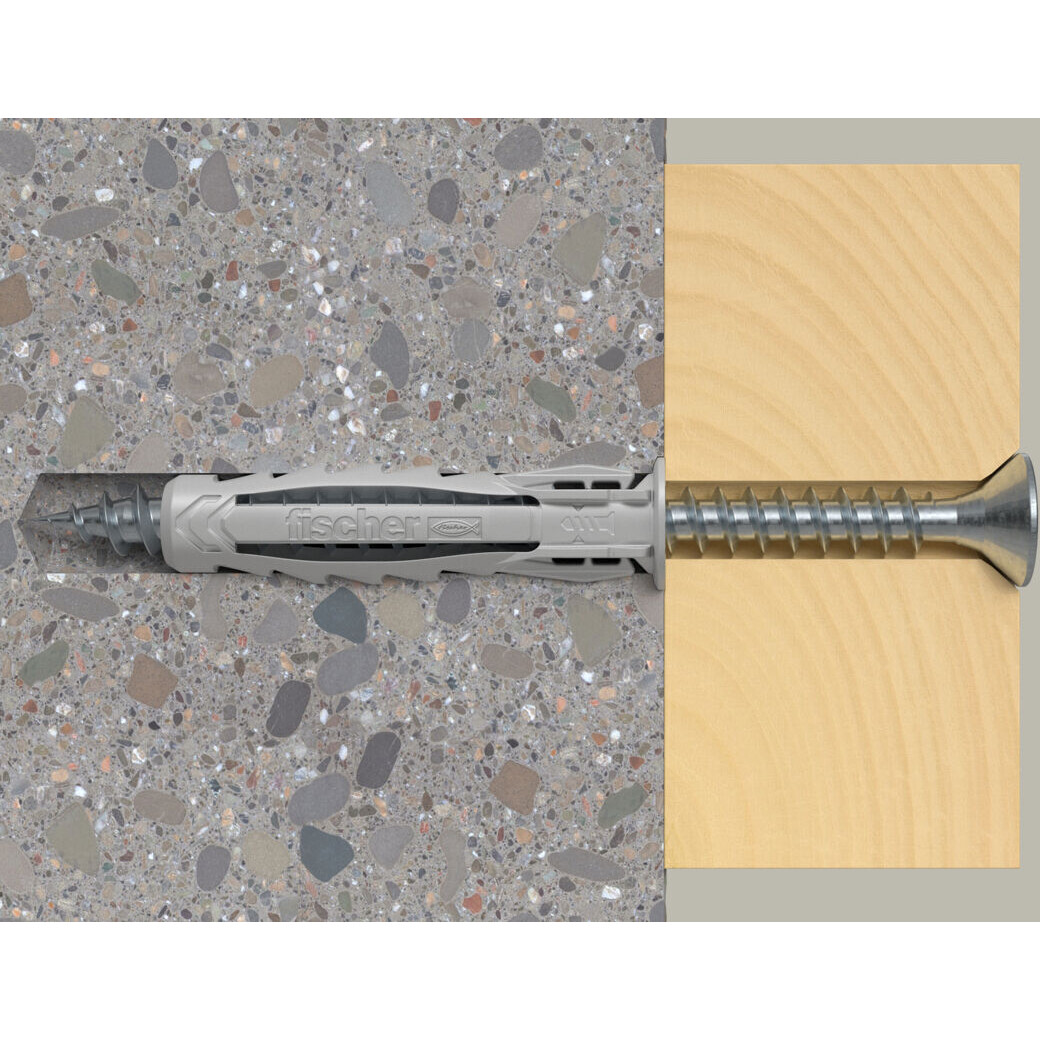

• When the screw is tightened, the SX Plus expands in four directions and thus anchors itself securely in the building material
• The anti-rotation lock prevents the plug from twisting and allows for easy installation
• Suitable for wood and chipboard screws, as well as stud screws
• The required screw length is given by the plug length + fixture thickness + the screw diameter
