- Description
-
Details
- The fischer DuoSeal is a 2-component plug which seals the drill hole in wet areas without any additional sealing compound
- The nylon plug with the enclosed screw has been independently tested by the Testing and Certification Institute of the Säure Fliesner Vereinigung e. V.
- The watertightness is confirmed in accordance with ETAG 022 and DIN 18534 up to the water exposure class W3-I
- Taking into account the national and international sealing standards for wet areas, the DuoSeal in combination with the enclosed screw is suitable for applications in commercial, private and public wet areas which are frequently exposed to splash water and temporarily accumulated water
- In any case, please take note of the general national regulations on the use of plugs in wet areas
Top Features
- Perfect sealing of the drill hole without any sealing compound
- Watertightness approved according to ETAG 022 and DIN 18534 up to water exposure class W3-I
- In any case, please take note of the general national regulations on the use of plugs in wet areas
- Quick and easy assembly by simply hammering in the plug
- Suitable for all building materials
- High load values due to the 2-component material
Advantages
- The DuoSeal completely seals drill holes in tiles without additional sealing compound and thus prevents structural damage caused by moisture in the building material
- The DuoSeal is ideally suited for tiled surfaces which are exposed to very frequent splashing water and temporarily accumulated water
- The universal plug can be installed gently on tiles with very little effort
- It´s red component ensures a secure hold in all building materials
- Thus, the DuoSeal achieves the same load values as conventional nylon plugs
- The stainless steel screw included in the set is ideally suited for installation in wet areas and avoids rusting
- The soft plastic rim closes the drill hole completely and flexibly adapts to the shape of the attachment part
Test Summary Report
Load Table
- Features
Features

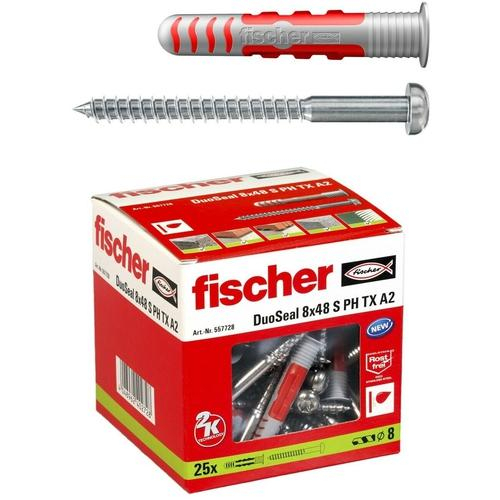

Technical Data Drill diameter d0 8 [mm] Drill hole diameter tolerance 8 - 8.45 [mm] Min. drill hole depth h1 75 - tfix [mm] Min. building material thickness hmin 25 [mm] Anchor length l 48 [mm] Screw ds x ls 6.0 x 70 [mm] Drive TX30 Sealing depth tv 5 - 14 [mm] Tile thickness tF 5 - 10 [mm] Max. fixture thickness t fix 16 [mm] Contents 25 x DuoSeal 8 x 48 25 x Panhead sealing screw 6,0 x 70 A2 [pcs.] Amount 25 [pcs.] GTIN (EAN-Code) 4048962402728 Applications In tiled wet areas like: Bathrooms Kitchens Spas Swimming pools Sports facilities Laundry rooms Suitable for: Accessories Faucets Shower panels Mirrors Shelves Hair dryer holders Kitchen accessories Tubes Building materials Concrete Solid brick Solid sand-lime brick Light concrete (solid brick) Light concrete (hollow brick) Vertically perforated brick Perforated sand-lime brick Aerated concrete Gypsum plasterboard Gypsum fibreboard Chipboard Gypsum block
