Fischer 544155 Injection Mortar FIS EM PLUS 390ml with 2 x FIS MR Static Mixers

Fischer 544155 Injection Mortar FIS EM PLUS 390ml with 2 x FIS MR Static Mixers
Ex. VAT £20.99 Inc. VAT £25.19
  • Buy 6 for £18.99 (£22.79 incl. VAT) each and save 10%

Want it by Tomorrow, 15 November? Order within

FIS EM Plus with optimised formulation for improved load values in cracked and non-cracked concrete.

Description

Details

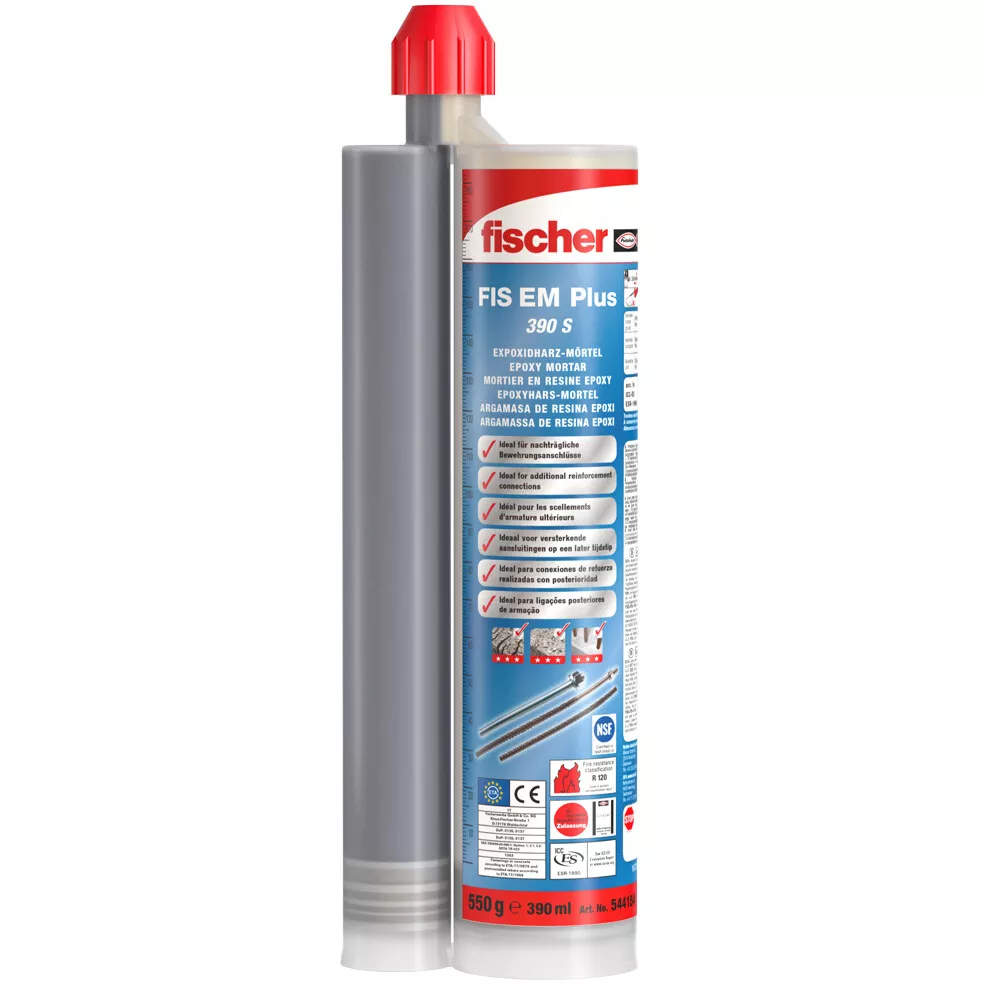

Fischer 544155 Injection Mortar FIS EM PLUS 390ML

  • FIS EM Plus is a high-quality epoxy mortar for top load-bearing capacity in cracked and non-cracked concrete and for seismic applications in performance categories C1 and C2
  • It is suitable for fixations of shear connectors for concrete layers, tall shelvings, and heavy steel constructions both inside and outside
  • The injection mortar is processed with the approved system components fischer threaded rod FIS A with variable anchorage depths and fischer internal threaded anchor RG M I as well as with reinforcement bars
  • The epoxy mortar is ideally suited for rebar connections that are installed with a large drill hole diameter and a high anchorage depth
  • It can also be used for diamond-drilled and water-filled drill holes
  • The optimised formulation of the epoxy mortar FIS EM Plus leads to improved load values in cracked and non-cracked concrete
  • The mortar can be used for rebar connections from diameter 8 to 40 mm
  • With the threaded rod FIS A, the loads to be applied can be designed variably by selecting the anchorage depth
  • Temporary and detachable fixing points are possible with the internal threaded anchor RG M I. For practical use on the building site, FIS EM Plus can be processed at low temperatures down to 0° C (outside of the assessment even down to -5°C).
  • The mortar is approved for diamond-drilled and water-filled drill holes as well as seismic applications of performance categories C1, C2 and thus offers safety under extreme conditions.

Top Features

  • FIS EM Plus with optimised formulation for improved load values in cracked and non-cracked concrete
  • For rebar connections from diameter 8 to 40 mm
  • Can be used with threaded rod FIS A or internal threaded anchor RG M I for temporary and removable fixing points
  • FIS EM Plus is to be processed at temperatures down to -5°C
  • More safety due to approvals for diamond drilled and water-filled drill holes as well as seismic applications of performance categories C1, C2.

Documents For Downloading

https://fiproductmedia.azureedge.net/media/Certification%20Documents/ETA%20European%20Technical%20Assessment/fischer/ZD_ETAB_F_17-0979_SEN_AIP_V5.pdf

https://fiproductmedia.azureedge.net/media/Curing%20Times/Curing%20Times%20fischer/AHZ_FIS-EM-PLUS_F_SEN_APR_V1.pdf

https://fiproductmedia.azureedge.net/media/Certification%20Documents/DOP%20Documents/fischer/ZD_DOP_EN_FIS-EM-PLUS-BETON_DOP-0135_ETA-17-0979.pdf

Supplied With:

  • 2 X Static mixer FIS MR
Features

Features

Building materials
Approved for anchorings in:
Concrete C20/25 to C50/60, cracked and non-cracked
Also suitable for:
Natural stone with dense structure
Applications
Post-installed rebar connections
Jointers for concrete layers
Rim beam anchorings
Seismic applications
Anchorings in diamond-drilled or in waterfilled drill holes
Heavy steel constructions
Silo installations
Tall shelving
Sound barriers
Temporary or removable fixings (with internal threaded anchor RG M I)
