Fischer 541480 Washbasin Fixing WST KLIK 140 Pack x 2

• For the first time, the fischer WST Klik fixing set enables safe and simple one-man installation of washbasins on tiles

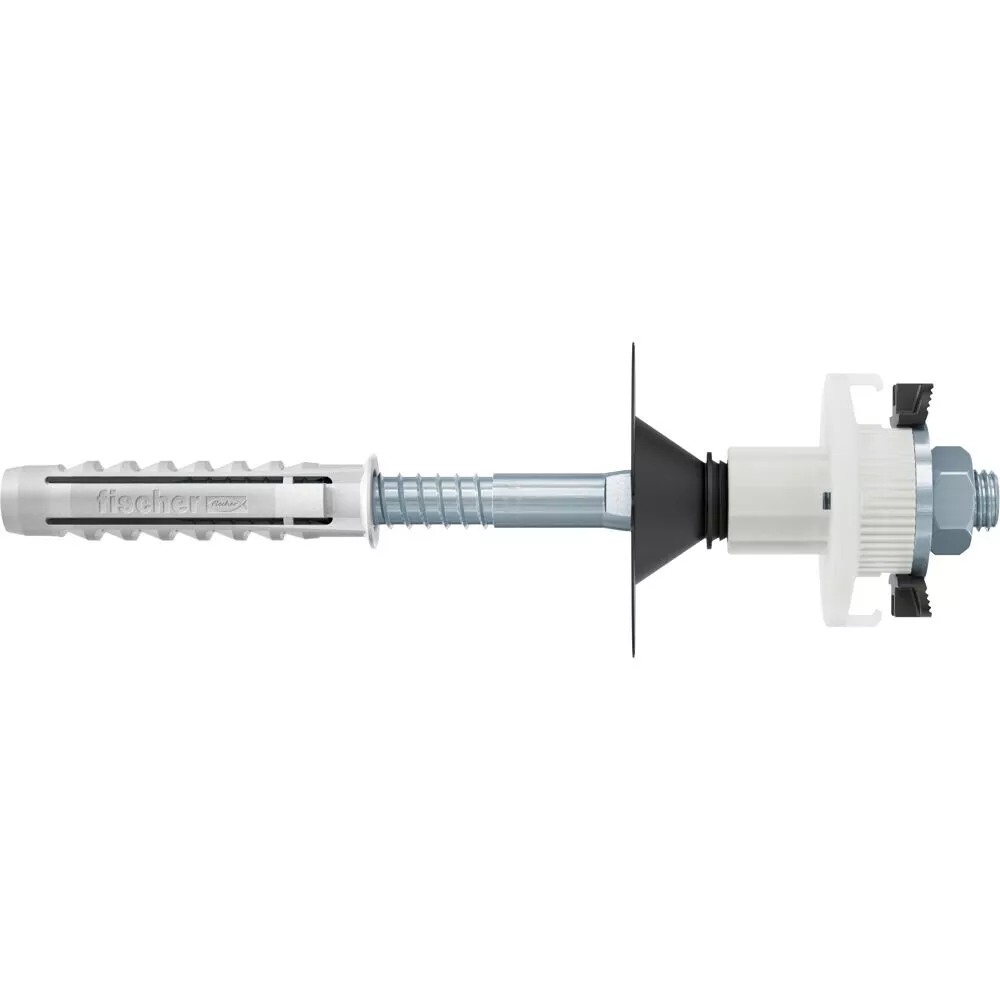

• The set consists of two high-quality fischer nylon expansion plugs SX, two hanger bolts made of galvanised steel, as well as a fixing sleeve made of consistent plastic
• The click system prevents the washbasin from tilting back, allowing it to be optimally aligned without much effort
• With the fischer SX expansion plug, the set can be used for a wide range of building materials, such as concrete, aerated concrete, solid and perforated bricks

Top Features

• Safe one-man installation
• Click Feedback noise for correct installation
• Easy alignment of the washbasin after tightening the screws
• Simple disassembly
• SX plug - suitable for installation in concrete and aerated concrete, but also masonry, solid and perforated construction material

Advantages

• The complete mounting set including the fixing sleeve enables safe and quick mounting
• The "click" sound confirms correct mounting
• By engaging the two sleeves, the washbasin can no longer tilt forward, enabling easy one-man assembly
• By turning the black sleeve, the washbasin can be optimally aligned and adjusted afterwards
• The ageing- and chemical-resistant fixing sleeve made of consistent plastic guarantees permanently secure fastening
• The enclosed fischer SX plug enables installation in many building materials, such as concrete, aerated concrete and masonry made of solid or perforated construction material
• Due to the plug-in system of the fixing, the washbasin can be easily disassembled.

Functionality

• The SX is suitable for push-in and push-through installation
• When screwing in the screw, the SX expands in four directions and thus securely fixes into the building material

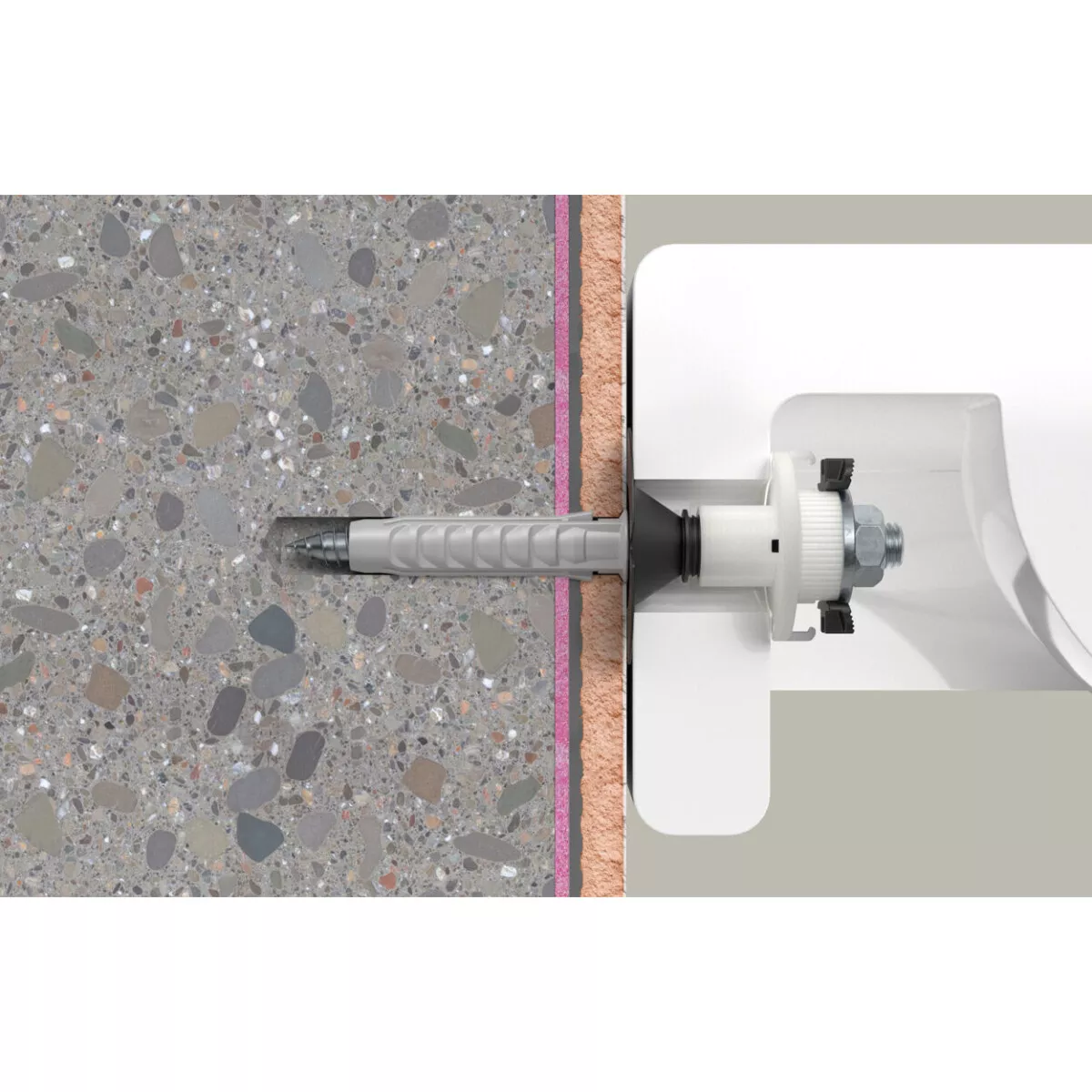

• The single parts of the fixing sleeve are mounted in advance in the opening of the ceramic back panel and plugged into each other
• The washbasin is then slipped over the pre-assembled screws and pushed onto the wall by pressing the black clips together
• After the fixing sleeve has engaged, the washbasin no longer rocks forward
• This allows the washbasin to be optimally aligned and then fixed with the nut

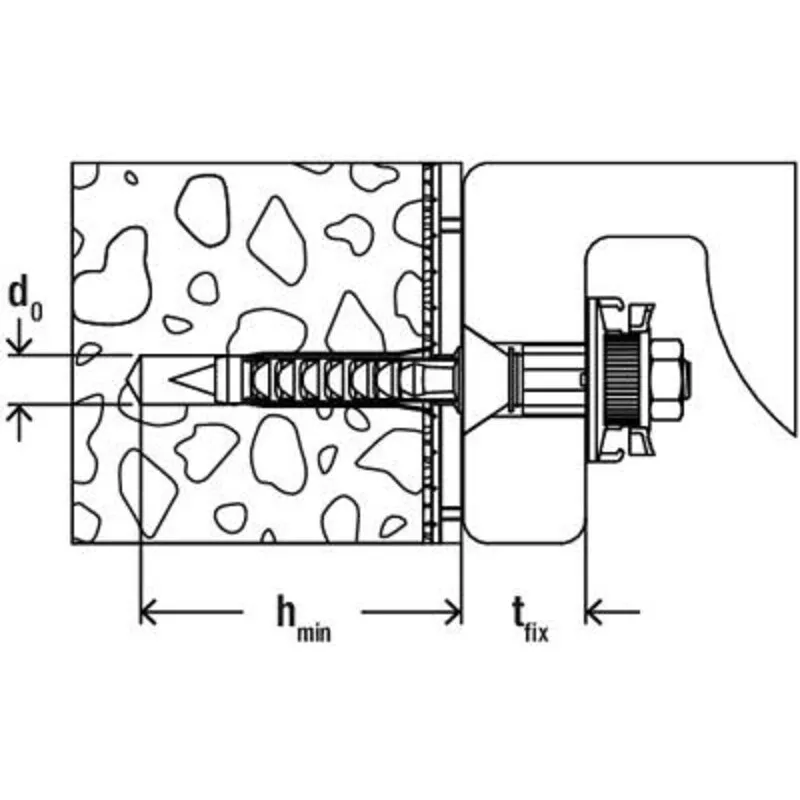

• The maximum load capacity is only achieved when the minimum screw-in depth is reached
• Tiles and plaster are considered as non-load-bearing substrates

Load Table

https://fiproductmedia.azureedge.net/media/Load%20Tables/Load%20Tables%20fischer/LT_01_WST-KLIK_F_SEN_AIP_V1.pdf
