- Description
-
Details

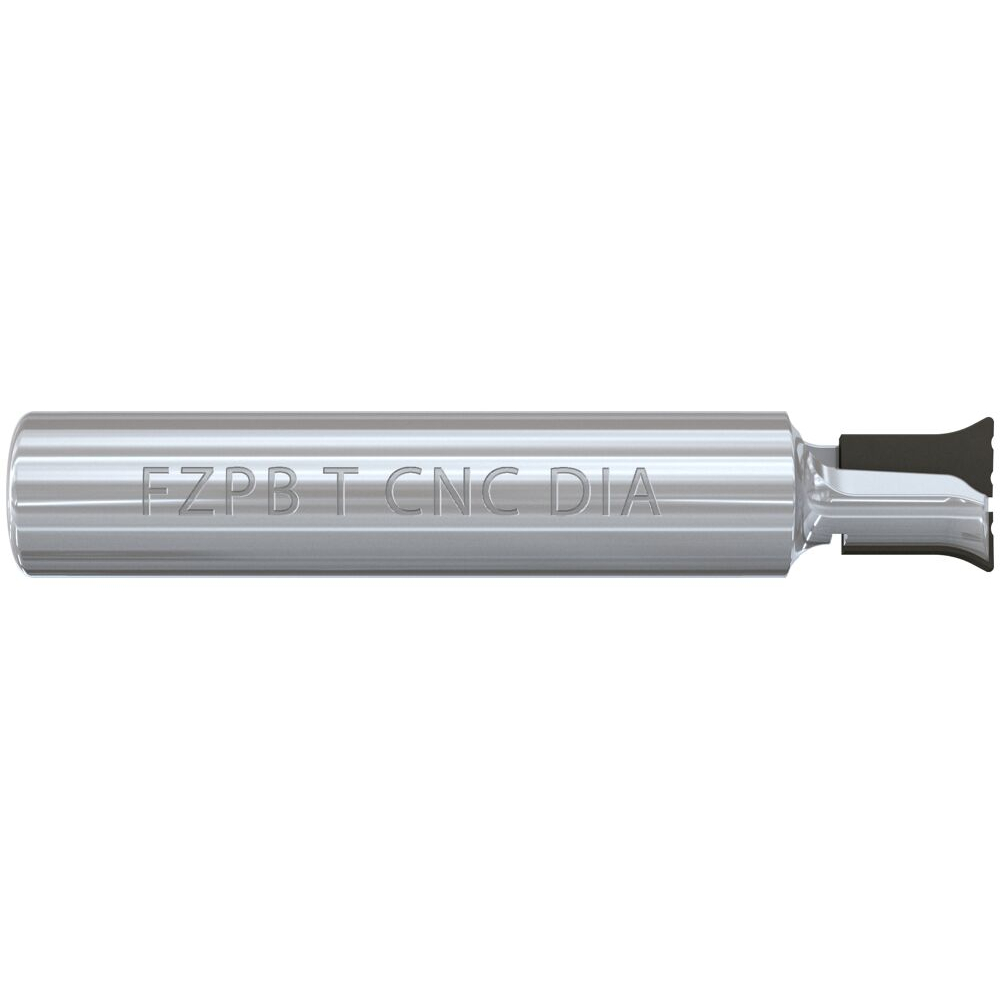

- The FZPB 11T CNC-DIA drill milling cutter is a quality product for use in CNC machineries
- The drill bit set with polycrystalline diamonds is used to create undercut drill holes for the fischer undercut anchor type FZP II-T M6 and Tergo+ from Eternit
- The holes are created using the direct single-stage dry drilling method
Top Features
- High economic efficiency using CNC-machine
- Saves set-up time and costs
- Optimal cutting behaviour due to polycrystalline diamonds
- For dry undercut drilling in thin panel materials (HPL, fibre cement, etc.)
- Part of the fischer FZP II undercut anchor approval
Advantages
- Low investment costs
- Fast implementation of fischer undercut technology
- Features
Features
Technical Data Drill diameter d0 11 [mm] Working length 10 [mm] Drilling method dry Adapted for Thin panel materials (e. g. HPL, fibre cement) Amount 1 [pcs.] GTIN (EAN-Code) 4048962289671 Applications Interior façades Exterior façades Façade reveals Building materials Natural stone (≥ 20mm) Artificial concrete panels Ceramics (≥ 10 mm) Solid-surface materials Fibre cement HPL panels Solid surfaces Thin panel materials (≥ 8 mm)
