- Description
-
Details
- The fischer frame fixing SXRL-T A4 is approved along with the fischer countersunk head screw with T30 drive for multiple fixings of non-load-bearing systems in masonry, concrete, and aerated concrete
- The two expansion zones in the fixing induce forces equally into perforated masonry, these combine to form a long expansion element in aerated concrete and solid building material.
- The frame fixing with the safety screw made out of stainless steel is suitable for fixings in external areas such as façade, ceiling, and roof sub-structures.
Top Features
- ETA rating with excellent load values: Safe multiple fixings of non-structural systems in concrete and masonry
- The long expansion element makes the SXRL versatile
- Loads are applied evenly to the building material thanks to the fixing geometry
- This means that the fillets are not destroyed in the case of thin-walled building materials
- Simple to assemble: Ribs prevent plug rotation during installation. <
Advantages
- The long expansion element makes the SXRL an extremely versatile product
- Through the special geometry of the plug, the retention forces are evenly distributed in the drill hole
- When anchoring in hollow and solid building materials, the two expansion zones lead to optimum load bearing capacity
- When it is to be set deep, the longer ribs prevent the plug from turning during installation
Functionality
- The SXRL is suitable for push-through installation

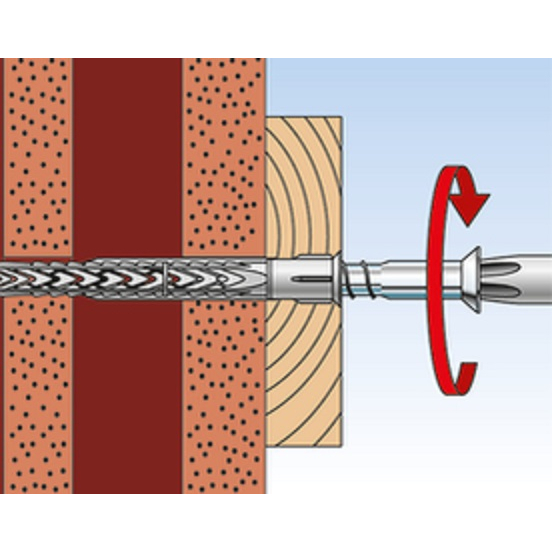

- In perforated brick masonry a force transmission that protects the substrate is guaranteed through the two expansion zones
- The porous block fillets are not crushed by the second expansion zone an therefore serves to transmit the force
- In aerated concrete and solid building materials, the two expansion zones combine to form one long expansion element, thus providing for a uniform and flat distribution of the load into the substrate

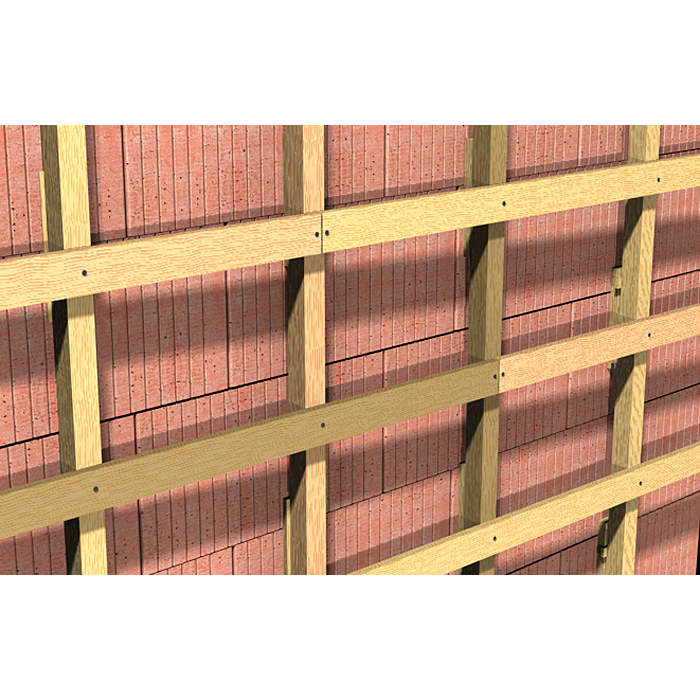

- Recommended for the fixing of wood constructions
- The SXRL-FUS with a wide sleeve rim plug and hexagonal screws with moulded washers is recommended for the fixing of metal constructions.
Documents for Downloading
https://content.fischer.de/cbfiles/fischer/zulassungen/eta/zd_etab_f_07-0121_%23sen_%23aip_%23v4.pdf
https://content.fischer.de/cbfiles/fischer/zulassungen/zd_dop_sxr-sxrl-1_f_%23sen_%23aip_%23v1.pdf
https://content.fischer.de/cbfiles/fischer/zulassungen/zd_dop_sxr-sxrl-2_f_%23sen_%23aip_%23v1.pdf
https://content.fischer.de/cbfiles/fischer/zulassungen/zd_dop_sxr-sxrl-3_f_%23sen_%23aip_%23v1.pdf
Load Table for Downloading
https://content.fischer.de/cbfiles/fischer/lastentabelle/lt_01_sxrl_f_%23sen_%23aip_%23v6.pdf
- Features
Features
ETA-approval Drill diameter d0 8 [mm] Anchor length l 100 [mm] Min. drill hole depth for through fixings h2 110 [mm] Usable length at anchorage depth 50mm tfix 50 [mm] Usable length at anchorage depth 70mm tfix 30 [mm] Usable length at anchorage depth 90mm tfix 10 [mm] Drive T30 Amount 50 Unit(s) Applications Windows Gates and doors Blinds / folding shutters Handrails Wardrobes Kitchen hanging cabinets TV consoles Shelves Lighting Motion detectors Wall covering Metal brackets Metal supports Guide rails Cable ducts Cable trays Radiators Building materials Approved for: Vertically perforated brick Aerated concrete Hollow blocks made from lightweight concrete Perforated sand-lime brick Thermal insulation blocks Solid block made from lightweight and normal weight concrete Solid brick Solid sand-lime brick Concrete ≥ C12/15 Also suitable for: Natural stone with dense structure Solid panel made from gypsum
