- Description
-
Details
- The Fischer resin capsule RM II together with the threaded rod RG M is the first capsule with European Technical Assessment Option 1 for cracked concrete, which does not require hole cleaning
- Steel constructions, machines or staircases outside and indoors can be fixed with the resin anchor
- The resin capsule can be used with the fischer threaded rod RG M and the fischer internal threaded anchor RG MI

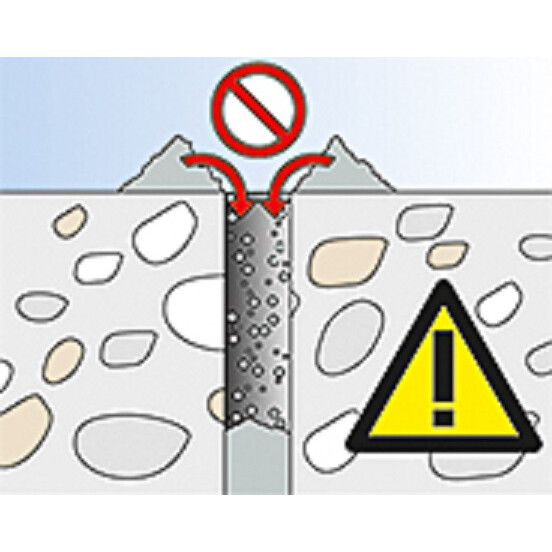

- Hole cleaning is not necessary with the resin capsule RM II, however comparatively high loads can be supported
- This allows for a fast work progress
Top Features
- Resin capsule for fixings in cracked concrete
- Fast processing without drill hole cleaning
- Secure anchorage of high loads
- Ideal for single point fixings and overhead installations
- Numerous threaded rods available as accessories
Advantages
- RM II is the first bonded anchor with threaded rod RG M or internal-threaded anchor RG MI that does not need drill hole cleaning
- This allows fast progress and efficient installation
- In addition, the construction site is less affected by drill dust
- This increases safety for the user
- The pre-portioned resin capsule is easy to use and particularly suitable for individual applications and overhead installations
- Use of the internal threaded anchor RG MI allows the surface-flush removal and reuse of the fixing point, and therefore offers the best possible flexibility.
Assembly Instructions

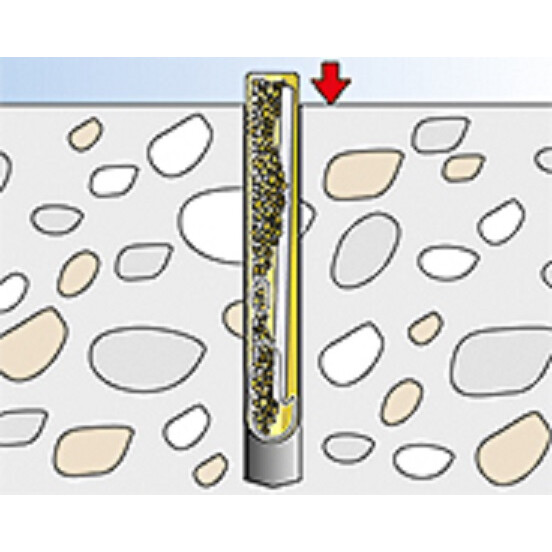

- The resin capsule RM II in conjunction with the threaded rod RG M or internal-threaded anchor RG MI is suitable for pre-positioned installation
- The 2-component resin capsule RM II contains styrene-free vinylester resin and hardener
- The fixing element is set using a hammer drill and the accompanying setting tool in rotating and hitting motion
- During setting, the oblique edge of the fixing element destroys the capsule, and mixes and activates the mortar
- The mortar bonds the entire surface of the anchor with the drill hole wall and seals the drill hole.
- Features
Features
ETA-approval Drill hole diameter d0 14 [mm] Min. drill hole depth h1 110 [mm] Effect. anchorage depth hef 110 [mm] Suitable for threaded rod RG M 12 Suitable for internal-threaded anchor RG M10 I Amount 10 Unit(s) Applications Suitable for: Steel constructions Guard rails Staircases Column bases Machines Masts Removable fixings Temporary fixings, e.g. for machines Scaffold anchoring Approved for: Overhead installations Water-filled drill holes Building materials Approved for: Concrete C20/25 to C50/60, cracked and non-cracked Also suitable for: Natural stone with dense structure You can find detailed information on building materials in the registration document. Permission ETA-16/0340 DoP No. 0090 DoP No. 0133
