- Description
-
Details
Fischer 539463 FIS VL Vinylester Injection Hybrid Resins 410ml
- The FIS VL 410 C is approved for use in cracked concrete and masonry, and achieves a high load-bearing capacity in these conditions
- The temperature resistance of the FIS VL injection mortar of -40 °C to +120 °C allows for a solid load level even when subjected to high temperature demands, thus providing great flexibility
- The FIS VL is a 2-component injection mortar based on vinylester. Resin and hardener are stored in two separate chambers and are not mixed and activated until extrusion through the static mixer
- The mortar is extruded bubble free from the drill hole base
- The mortar bonds the entire surface of the anchor with the drill hole wall and seals the drill hole
- Partially used cartridges can be reused by changing the static mixer
- Approved for water-filled holes with 410ml coaxial cartridges
Functionality
- The FIS VL is a 2-component injection mortar based on vinylester.
- Resin and hardener are stored in two separate chambers and are not mixed and activated until extrusion through the static mixer
- The mortar is extruded bubble free from the drill hole base.
- The mortar bonds the entire surface of the anchor with the drill hole wall and seals the drill hole
- The 410 ml coaxial cartridges can be easily used with the fischer FIS AC dispenser
- Partially used cartridges can be reused by changing the static mixer
Load Table for Downloading
https://content.fischer.de/cbfiles/fischer/lastentabelle/lt_01_fis-vl_f_%23sen_%23aip_%23v1.pdf
Download Data Sheets
https://content.fischer.de/cbfiles/fischer/zulassungen/eta/zd_etab_f_10-0352_%23sen_%23aip_%23v1.pdf
https://content.fischer.de/cbfiles/fischer/zulassungen/eta/zd_etab_f_15-0263_%23sen_%23aip_%23v1.pdf
https://content.fischer.de/cbfiles/fischer/zulassungen/eta/zd_etab_f_15-0539_%23sen_%23aip_%23v1.pdf
https://content.fischer.de/cbfiles/fischer/zulassungen/zd_b_03_fisvl_f_%23sen_%23aip_%23v1.pdf
https://content.fischer.de/cbfiles/fischer/zulassungen/zd_b_04_fisvl_f_%23sen_%23aip_%23v1.pdf
Safety Data Download
https://content.fischer.de/cbfiles/fischer/zulassungen/zd_sdb_01_fisvl410c_f_%23sen_%23aip_%23v1.pdf
Supplied With:
- 2 X Static mixer FIS MR
- Features
Features

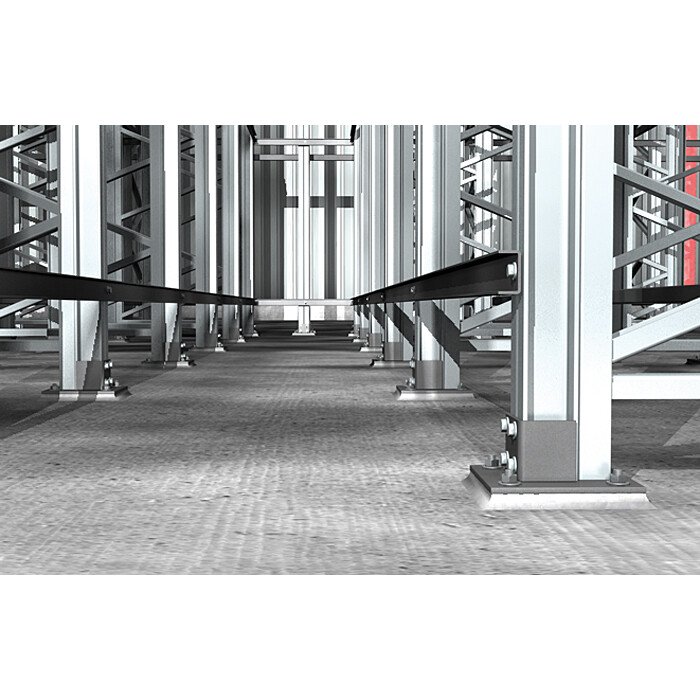

Applications Steelwork constructions Timber constructions Guard rails Façades Staircases Steel brackets Machines Masts Awnings Canopies Gates Consoles Pipelines Gratings Satellite antennas Approved for anchorings in: Concrete C20/25 to C50/60, cracked Hollow blocks made from lightweight concrete Vertically perforated brick Perforated sand-lime brick Solid sand-lime brick Solid brick Rebar connections Aerated concrete Also suitable for: Concrete C12/15 Hollow blocks made from concrete Approved for water-filled holes with 410ml coaxial cartridges
