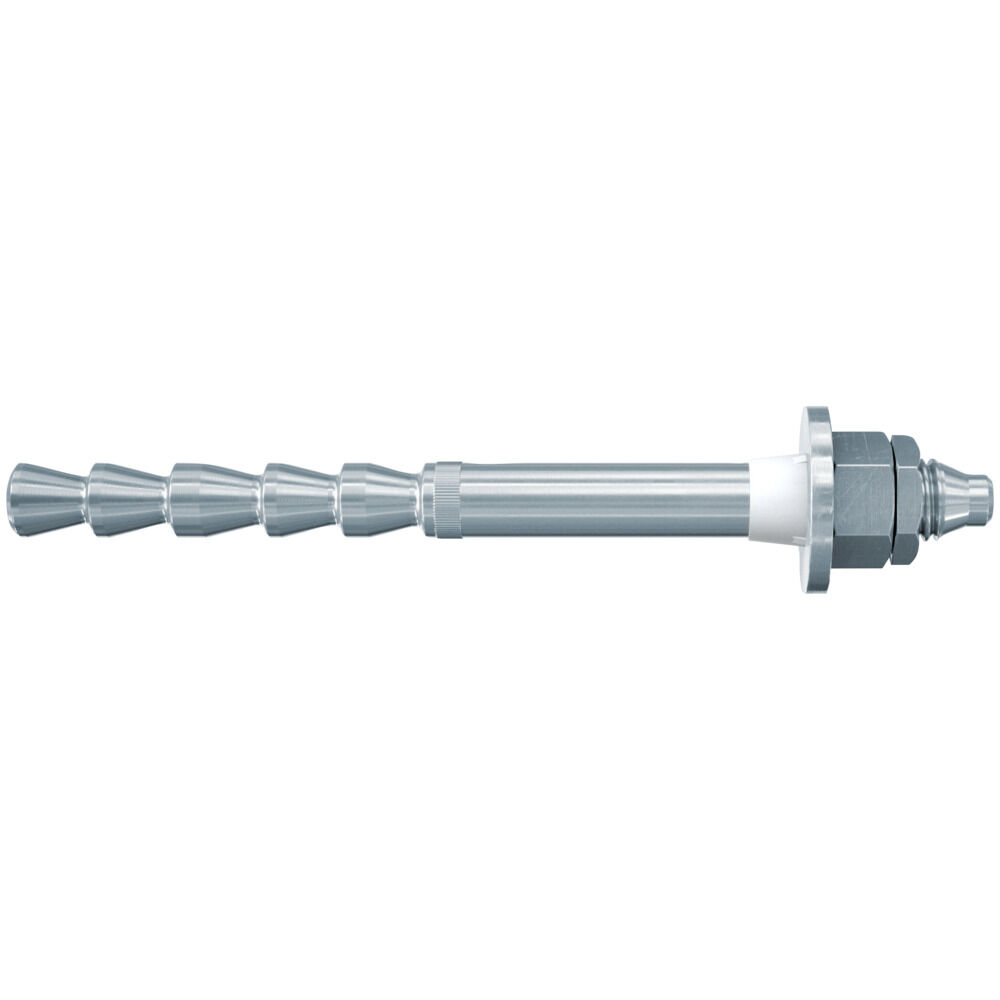

Fischer 536946 Dynamic-Anchor FDA - A M16 x 125 / 50mm Pack x 10

• The fischer Dynamic-Anchor FDA-A with prefitted threaded rod for quick installation
• The steel anchor is suitable for push-through installation and small distances from the edge also allow fixing to the edge of panels
• Tested security through general building regulations approval for innumerable load changes
• The dynamic anchor can be glued completely to the drill hole wall using the injection mortar FIS HB

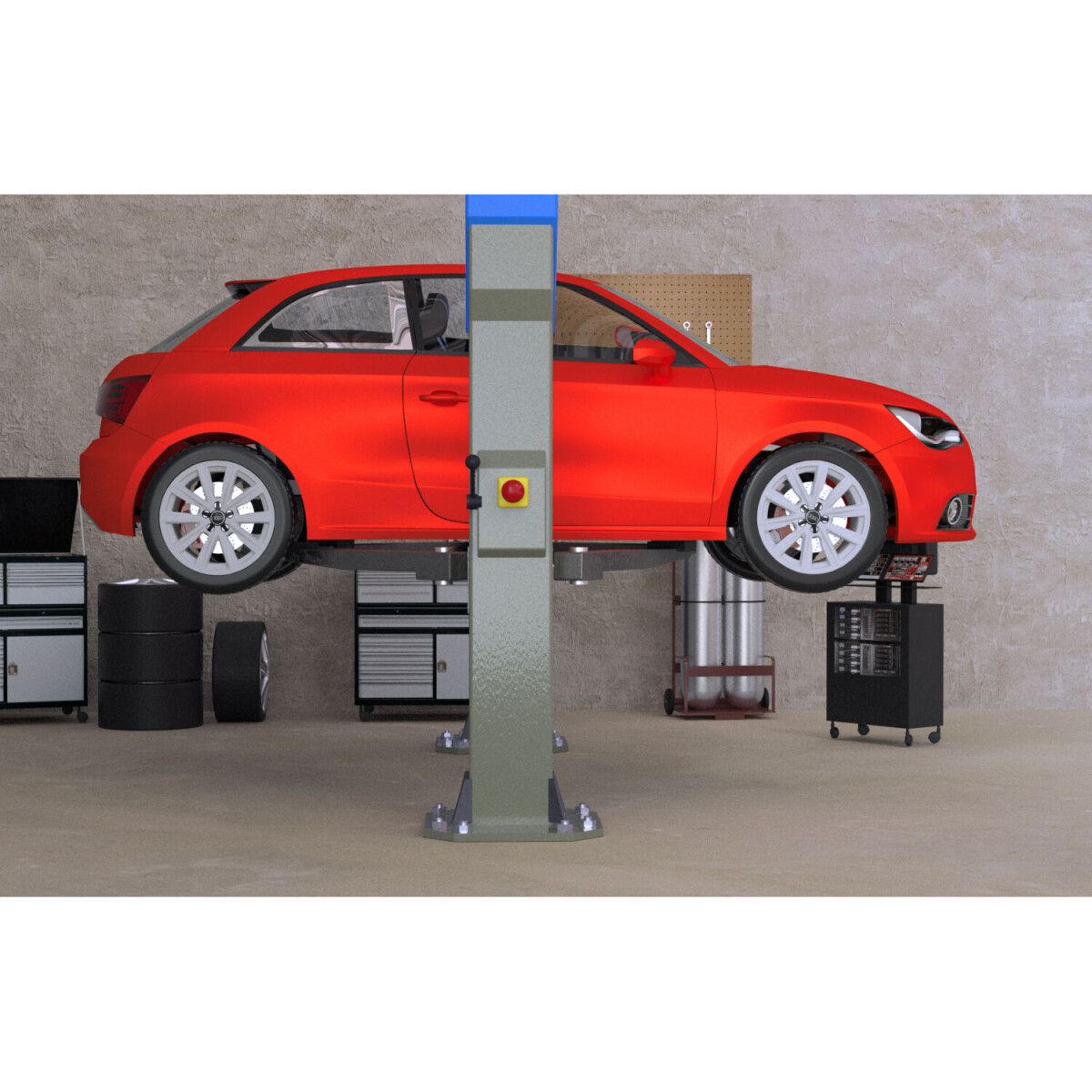

• Thanks to the moderate load level, suitable for a large number of applications such as vehicle platform lifts, conveyor belts, industrial robots, cooperation robots and systems, as well as guide rails for elevators

Top Features

• Approved for cracked concrete.
• Absorption of dynamic alternating loads via optimum load distribution

Advantages

• Medium load level for a variety of applications
• Pre-assembled anchor rod for fast installation
• Assessed safety acc. to ETA
• Easy push-through installation leads to cost effectiveness – especially for serial installations
• Tight assortment with the size
• Less spacings and edge distances
• Drill holes are sealed

Functionality

• The injection system suitable for tensile zones consists of the fischer dynamic anchor rod FDA-A dyn and the injection mortar FIS HB
• FDA is approved for push-through installation
• Extruding the mortar causes the two components to be mixed and activated in the static mixer
• The mortar bonds the entire surface of the anchor rod with the drill hole wall and seals the drill hole
• The centring sleeve centres the anchor in the fixture, thus ensuring a safe load application
• During the setting process, the injection mortar FIS HB fills the annular gap in the fixture, and ensures optimum load distribution
• This allows for the absorption of dynamic alternating loads
